Product Brand

Airex

PRODUCT MODEL No

AXF.UCGN.3.LOW

Product Serial Number

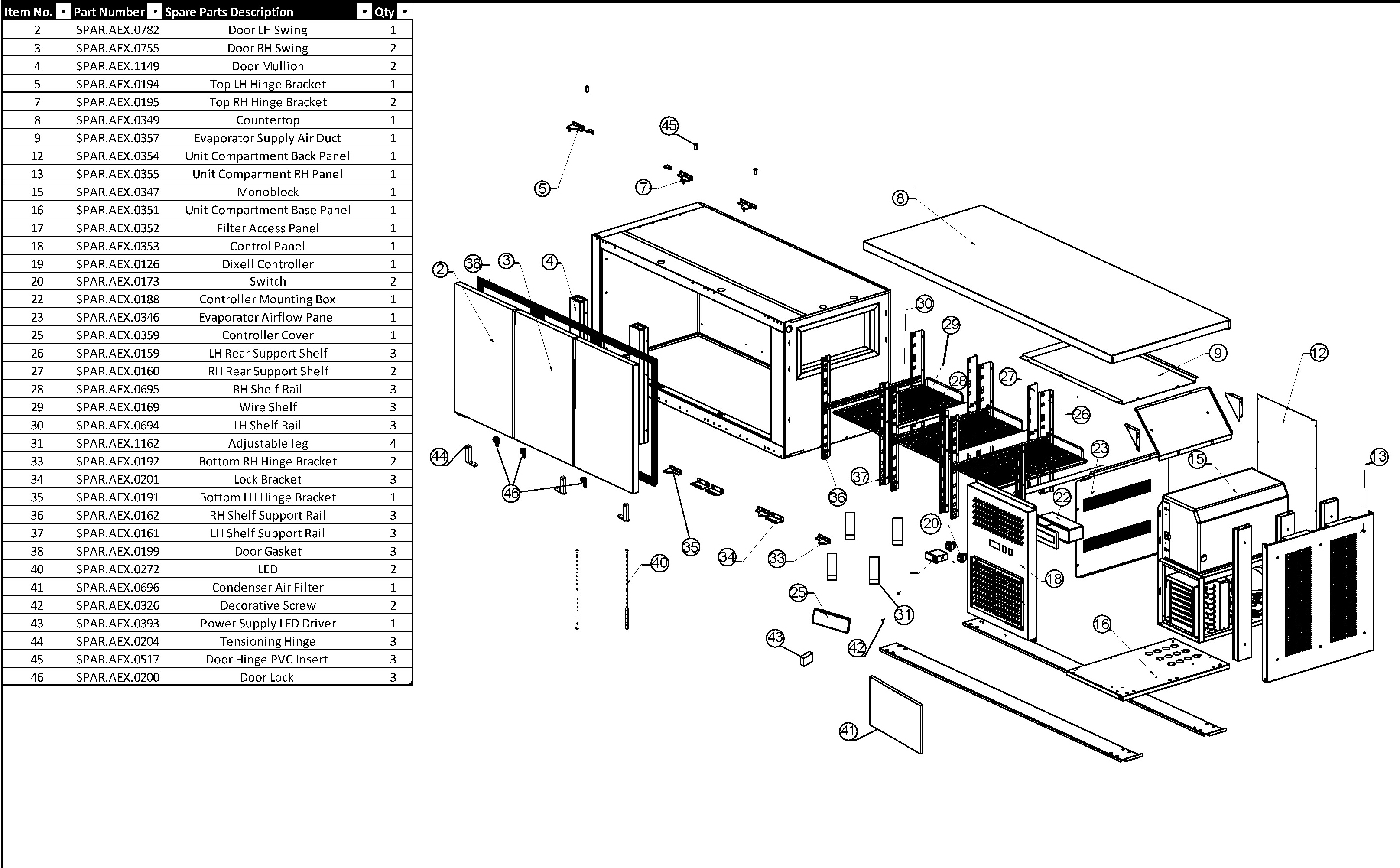

Spare Parts Drawing
axf.ucgn.3.low_c2_spare_parts axf.ucgn.3.low_c1_spare_parts axf.ucgn.3.low_c1_monoblock_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Compressor Secop NLE12.6CNL
    SPAR.AEX.0079
    $924.21
      Fan Motor Evaporator Xinruilian
      SPAR.AEX.0088
      $97.29
        Dixell Controller
        SPAR.AEX.0126
        $160.53
          Lock Door
          SPAR.AEX.0200
          $21.90
            1/ 4" Filter Drier
            SPAR.AEX.0078
            $14.58
              Fan Blade Φ200/34deg
              SPAR.AEX.0086
              $9.24
                Condensate Tray
                SPAR.AEX.0211
                $27.24
                  Shelf Wire
                  SPAR.AEX.0169
                  $43.77
                    LED
                    SPAR.AEX.0272
                    $92.43
                      Hinge Top Left Bracket
                      SPAR.AEX.0194
                      $19.47
                        Hinge Top Right Bracket
                        SPAR.AEX.0195
                        $19.47
                          Door Gasket 578x416mm
                          SPAR.AEX.0199
                          $60.81
                            Controller Cover
                            SPAR.AEX.0359
                            $21.90
                              Door hinge PVC insert Top Hinge
                              SPAR.AEX.0517
                              $4
                                Screw Decorative
                                SPAR.AEX.0326
                                $6.81
                                  Fan Bracket 200mm diameter
                                  SPAR.AEX.0415
                                  $11.19
                                    LED Driver Power supply
                                    SPAR.AEX.0393
                                    $52.53
                                      Tensioning Hinge
                                      SPAR.AEX.0204
                                      $29.19
                                        Fan Motor Weiguang ECM7120DAA2KA021 RPM1800
                                        SPAR.AEX.0480
                                        $330.78
                                          Heater Safety Switch
                                          SPAR.AEX.0568
                                          $11.19
                                            RH Shelf Rail
                                            SPAR.AEX.0695
                                            $34.05
                                              Condenser Filter
                                              SPAR.AEX.0696
                                              $20.43
                                                LH Shelf Rail
                                                SPAR.AEX.0694
                                                $34.05
