Product Brand

Airex

(Discontinued)

PRODUCT MODEL No

AXR.FDCTSQ.09

Product Serial Number

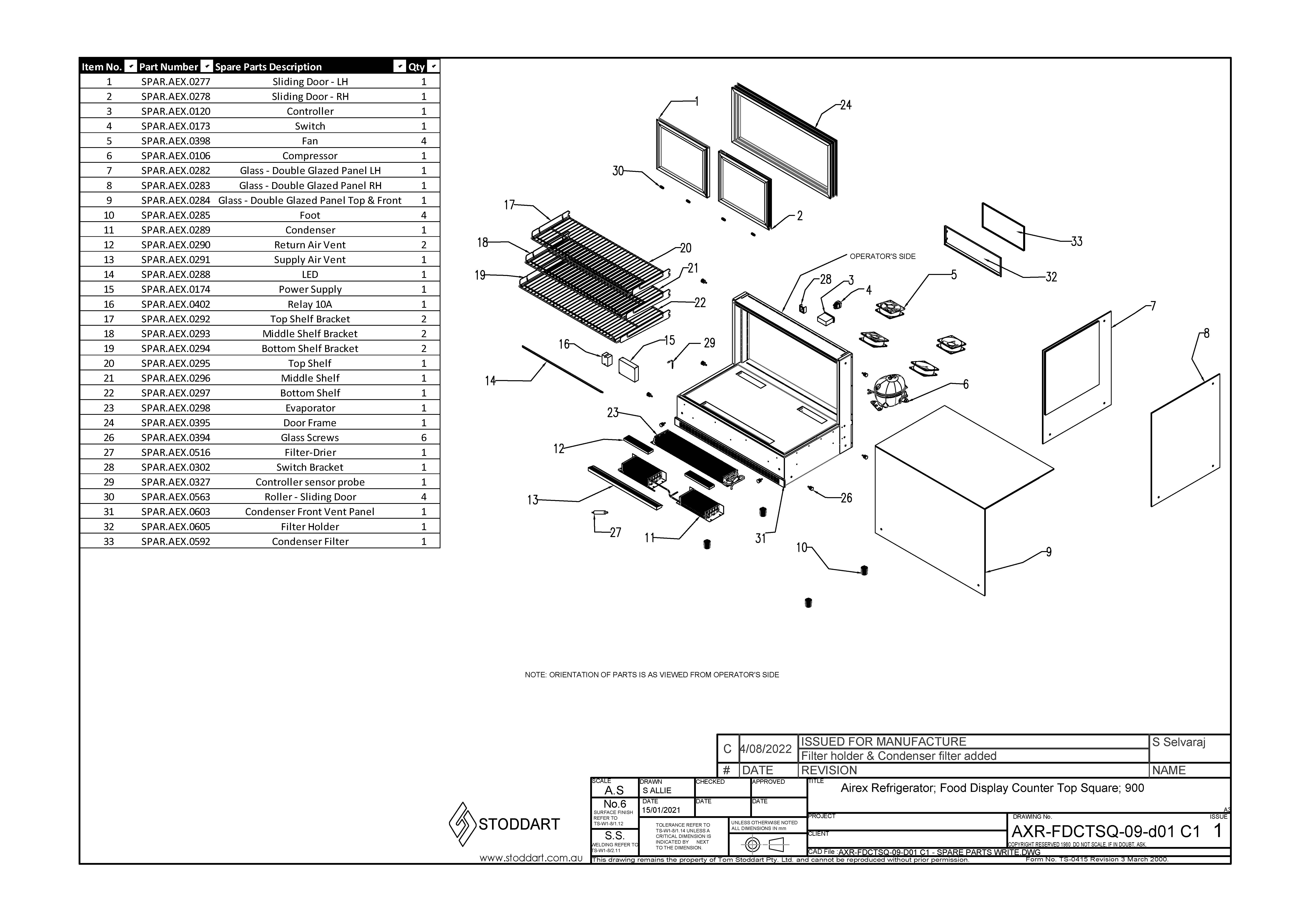

Spare Parts Drawing
axr.fdctsq.09_c1_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Embraco Compressor
    SPAR.AEX.0106
    $471.84
      Dixell Controller
      SPAR.AEX.0120
      $97.29
        MeanWell Power supply LRS-100-24
        SPAR.AEX.0174
        $75.87
          Relay
          SPAR.AEX.0402
          $37.89
            Sliding Door LH
            SPAR.AEX.0277
            $121.62
              Sliding Door RH
              SPAR.AEX.0278
              $121.62
                Glass Double Glazed end Panel LH
                SPAR.AEX.0282
                $350.22
                  Glass Double Glazed Panel Top Front
                  SPAR.AEX.0284
                  $832.18
                    Adjustable Foot
                    SPAR.AEX.0285
                    $9.72
                      Rear Air Vent Return
                      SPAR.AEX.0290
                      $12.15
                        Top Shelf Bracket
                        SPAR.AEX.0292
                        $24.33
                          Middle Shelf Bracket
                          SPAR.AEX.0293
                          $24.33
                            Bottom Shelf Bracket
                            SPAR.AEX.0294
                            $24.33
                              Top Shelf
                              SPAR.AEX.0295
                              $111.87
                                Middle Shelf
                                SPAR.AEX.0296
                                $121.62
                                  Bottom Shelf
                                  SPAR.AEX.0297
                                  $126.48
                                    Fan Motor
                                    SPAR.AEX.0398
                                    $38.91
                                      Condensor
                                      SPAR.AEX.0289
                                      $155.67
                                        LED 600mm
                                        SPAR.AEX.0288
                                        $58.38
                                          Filter Drier
                                          SPAR.AEX.0516
                                          $15.57
                                            Roller Sliding Door Cold display
                                            SPAR.AEX.0563
                                            $9.72
