Product Brand

Airex

PRODUCT MODEL No

AXR.UCGN.2.LOW

Product Serial Number

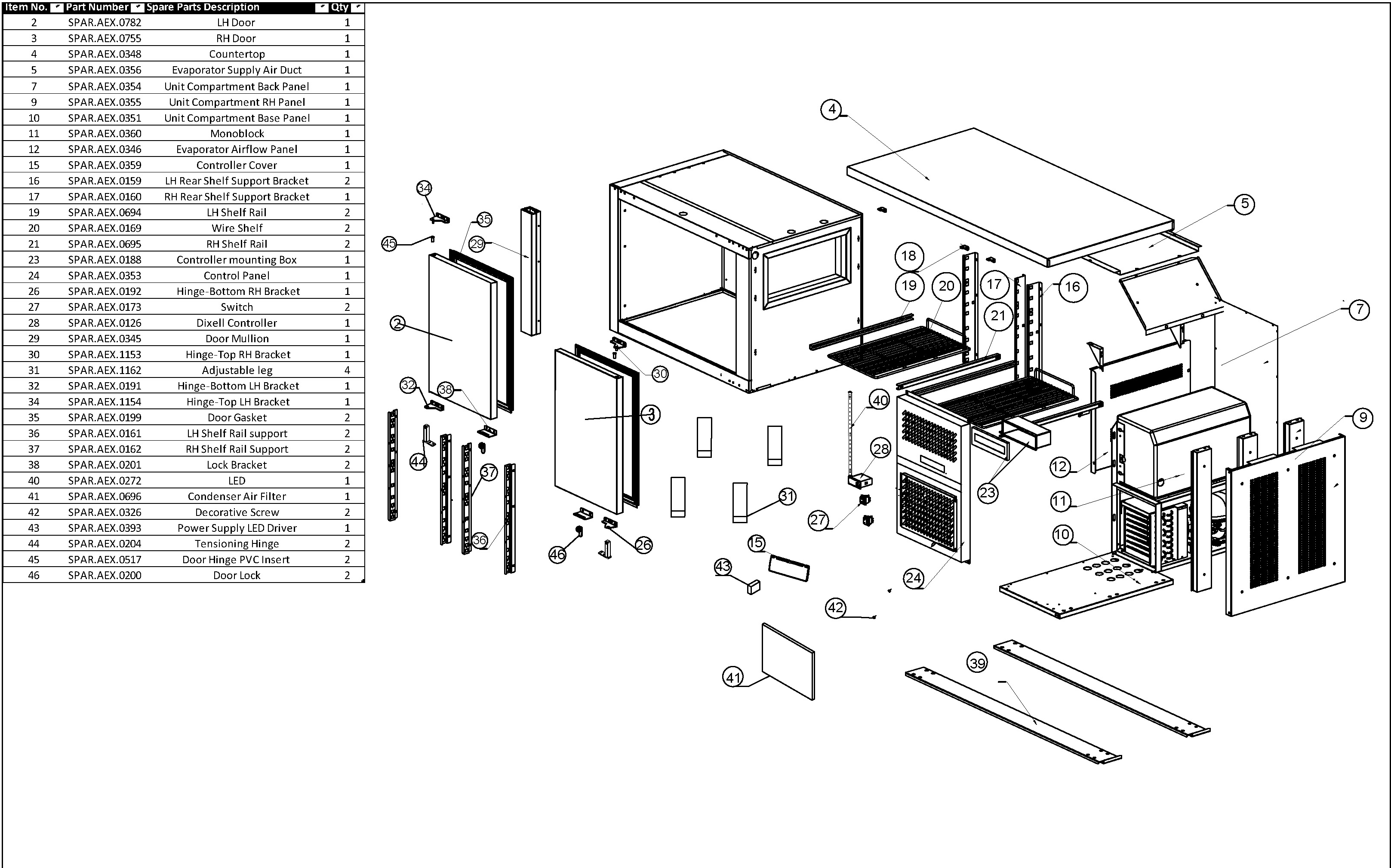

Spare Parts Drawing
axr.ucgn.2.low_d2_pg1_spare_parts axr.ucgn.2.low_d1_monoblock_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Fan Motor Evaporator Xinruilian
    SPAR.AEX.0088
    $97.29
      Dixell Controller
      SPAR.AEX.0126
      $160.53
        Lock Door
        SPAR.AEX.0200
        $21.90
          1/ 4" Filter Drier
          SPAR.AEX.0078
          $14.58
            Fan Motor Condenser
            SPAR.AEX.0085
            $71.01
              Fan Blade Φ200/34deg
              SPAR.AEX.0086
              $9.24
                Condensate Tray
                SPAR.AEX.0211
                $27.24
                  Shelf Wire
                  SPAR.AEX.0169
                  $43.77
                    Hinge Bottom Left Bracket
                    SPAR.AEX.0191
                    $19.47
                      Hinge Bottom Right Bracket
                      SPAR.AEX.0192
                      $19.47
                        LED
                        SPAR.AEX.0272
                        $92.43
                          Door Gasket 578x416mm
                          SPAR.AEX.0199
                          $60.81
                            Door Mullion
                            SPAR.AEX.0345
                            $83.19
                              Controller Cover
                              SPAR.AEX.0359
                              $21.90
                                Door hinge PVC insert Top Hinge
                                SPAR.AEX.0517
                                $4
                                  Screw Decorative
                                  SPAR.AEX.0326
                                  $6.81
                                    Fan Bracket 200mm diameter
                                    SPAR.AEX.0415
                                    $11.19
                                      LED Driver Power supply
                                      SPAR.AEX.0393
                                      $52.53
                                        Tensioning Hinge
                                        SPAR.AEX.0204
                                        $29.19
                                          RH Shelf Rail
                                          SPAR.AEX.0695
                                          $34.05
                                            Condenser Filter
                                            SPAR.AEX.0696
                                            $20.43
                                              Compressor
                                              SPAR.AEX.0680
                                              $506.25
                                                LH Shelf Rail
                                                SPAR.AEX.0694
                                                $34.05
