Product Brand

Airex

(Discontinued)

PRODUCT MODEL No

AXR.UCGN.2G

Product Serial Number

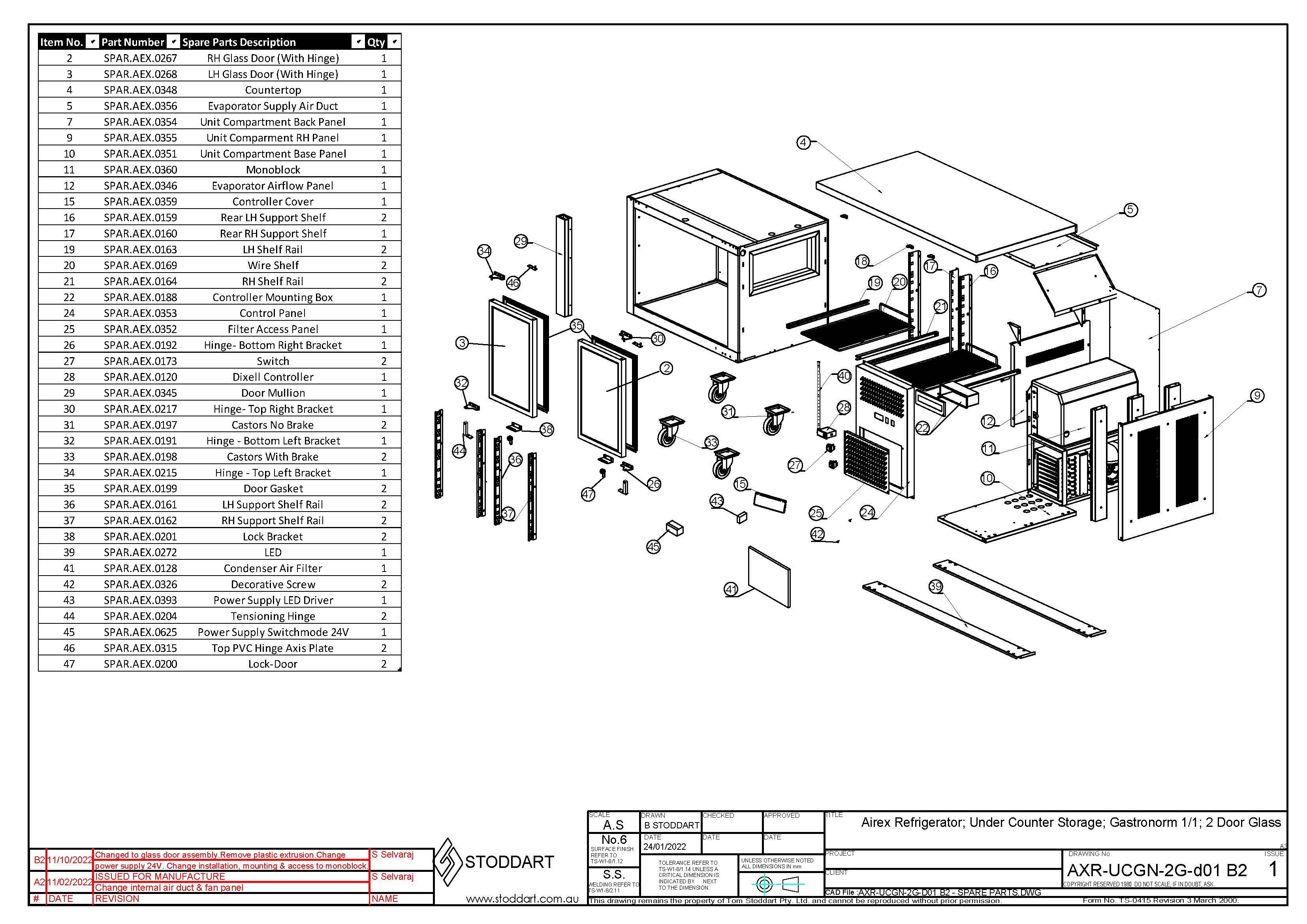

Spare Parts Drawing
axr.ucgn.2g_b2_drawing_spare_parts axr.ucgn.2g_b2_monoblock_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Fan Motor Evaporator Xinruilian
    SPAR.AEX.0088
    $97.29
      Compressor R290
      SPAR.AEX.0099
      $355.08
        Dixell Controller
        SPAR.AEX.0120
        $97.29
          Air Filter Condenser
          SPAR.AEX.0128
          $9.72
            Lock Door
            SPAR.AEX.0200
            $21.90
              1/ 4" Filter Drier
              SPAR.AEX.0078
              $14.58
                Fan Motor Condenser
                SPAR.AEX.0085
                $71.01
                  Fan Blade Φ200/34deg
                  SPAR.AEX.0086
                  $9.24
                    Rails Shelf LH
                    SPAR.AEX.0163
                    $19.47
                      Rails Shelf RH
                      SPAR.AEX.0164
                      $19.47
                        Condensate Tray
                        SPAR.AEX.0211
                        $27.24
                          Shelf Wire
                          SPAR.AEX.0169
                          $43.77
                            Hinge Bottom Left Bracket
                            SPAR.AEX.0191
                            $19.47
                              Hinge Bottom Right Bracket
                              SPAR.AEX.0192
                              $19.47
                                LED
                                SPAR.AEX.0272
                                $92.43
                                  Castor No Brake
                                  SPAR.AEX.0197
                                  $58.38
                                    Castor With Brake
                                    SPAR.AEX.0198
                                    $58.38
                                      Door Gasket 578x416mm
                                      SPAR.AEX.0199
                                      $60.81
                                        Door Mullion
                                        SPAR.AEX.0345
                                        $83.19
                                          Controller Cover
                                          SPAR.AEX.0359
                                          $21.90
                                            Screw Decorative
                                            SPAR.AEX.0326
                                            $6.81
                                              Fan Bracket 200mm diameter
                                              SPAR.AEX.0415
                                              $11.19
                                                RH Glass Door
                                                SPAR.AEX.0267
                                                $273.87
                                                  LH Glass Door
                                                  SPAR.AEX.0268
                                                  $273.87
                                                    LED Driver Power supply
                                                    SPAR.AEX.0393
                                                    $52.53
                                                      Tensioning Hinge
                                                      SPAR.AEX.0204
                                                      $29.19
                                                        Top PVC Hinge Axis Plate
                                                        SPAR.AEX.0315
                                                        $4.86
                                                          Hinge Top Left Bracket
                                                          SPAR.AEX.0215
                                                          $19.47
                                                            Hinge Top Right Bracket
                                                            SPAR.AEX.0217
                                                            $19.47
