Product Brand

Airex

(Discontinued)

PRODUCT MODEL No

AXR.URGN.2.PDW

Product Serial Number

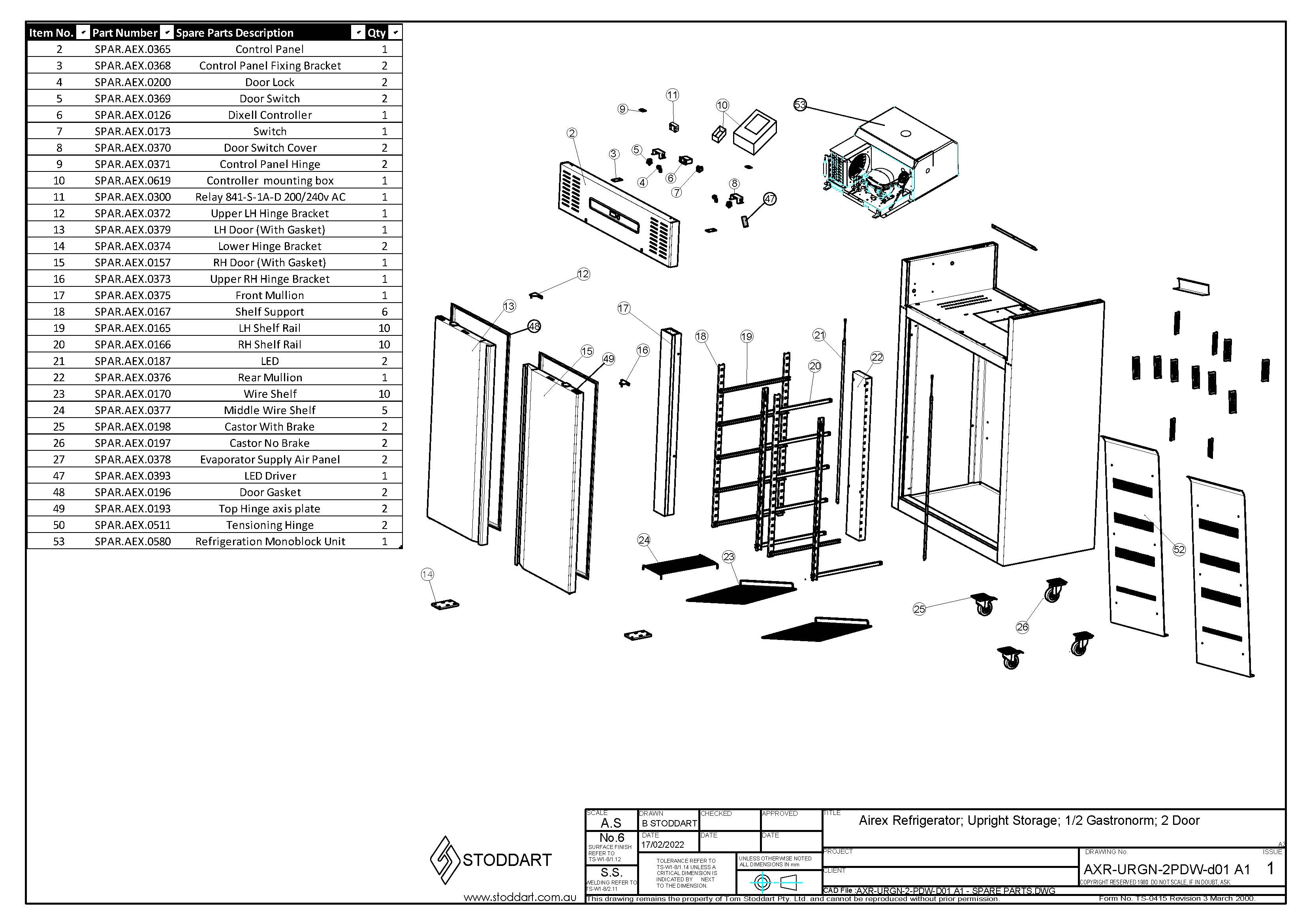

Spare Parts Drawing
axr.urgn.2.pdw_a1_drawing_spare_parts axr.urgn.2.pdw_a1_monoblock_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Embraco Compressor EMTE6181U
    SPAR.AEX.0084
    $505.89
      Dixell Controller
      SPAR.AEX.0126
      $160.53
        Lock Door
        SPAR.AEX.0200
        $21.90
          1/ 4" Filter Drier
          SPAR.AEX.0078
          $14.58
            Fan Motor SEADA 2600rpm
            SPAR.AEX.0082
            $165.39
              Fan Motor Condenser
              SPAR.AEX.0085
              $71.01
                Fan Blade Φ200/34deg
                SPAR.AEX.0086
                $9.24
                  Door Can be both LH and RH
                  SPAR.AEX.0157
                  $666.39
                    Runner Shelf LH
                    SPAR.AEX.0165
                    $34.05
                      Runner Shelf RH
                      SPAR.AEX.0166
                      $34.05
                        Shelf Wire
                        SPAR.AEX.0170
                        $68.10
                          Bottom PVC Hinge Axis Plate
                          SPAR.AEX.0193
                          $4
                            Castor No Brake
                            SPAR.AEX.0197
                            $58.38
                              Castor With Brake
                              SPAR.AEX.0198
                              $58.38
                                Upper RH Hinge Bracket
                                SPAR.AEX.0373
                                $21
                                  Lower Hinge Bracket
                                  SPAR.AEX.0374
                                  $20.91
                                    Upper LH Hinge Bracket
                                    SPAR.AEX.0372
                                    $16.77
                                      Control Panel Hinge
                                      SPAR.AEX.0371
                                      $7.77
                                        Fan Bracket 200mm diameter
                                        SPAR.AEX.0415
                                        $11.19
                                          Door Switch
                                          SPAR.AEX.0369
                                          $4.38
                                            Front Mullion
                                            SPAR.AEX.0375
                                            $142.02
                                              Wire Shelf Middle
                                              SPAR.AEX.0377
                                              $17.52
                                                LED Driver Power supply
                                                SPAR.AEX.0393
                                                $52.53
                                                  Door Gasket
                                                  SPAR.AEX.0196
                                                  $27.24
                                                    Relay 841-S-1A-D 200/240v AC
                                                    SPAR.AEX.0300
                                                    $63.24
                                                      Tensioning Hinge
                                                      SPAR.AEX.0511
                                                      $26.76
                                                        Controller Mounting Box
                                                        SPAR.AEX.0619
                                                        $7.77
