Product Brand

Adande

(Discontinued)

PRODUCT MODEL No

VCC

Product Serial Number

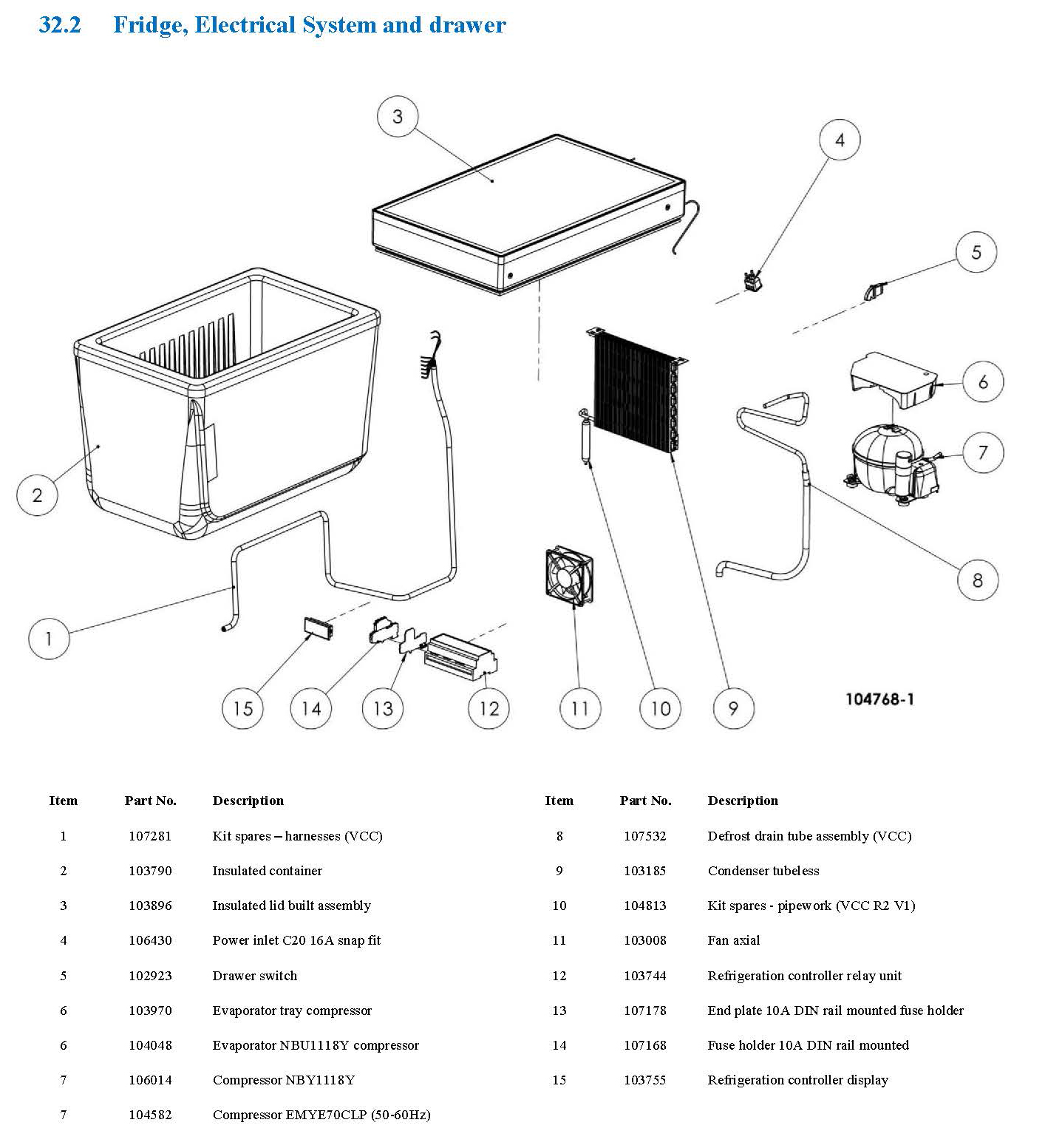

Spare Parts Drawing
spae.vcc_b2_drawer_spare_parts spae.vcc_b2_lid_spare_parts spae.vcc_b2_housing_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Screw hex M5 x 12 ST-ST
    102082
    $4
      Drawer Switch
      102923
      $57.51
        Motor Condensor Fan
        103008
        $147.48
          Condenser coil
          103185
          $582.07
            Bonded Washer
            103491
            $4
              Evaporator coil painted VCC
              104290
              $763.93
                Defrost Heater Assembly VCC
                104294
                $749.70
                  Drawer slide assy LH Accuride clip
                  104740
                  $288.64
                    Drawer slide assy RH Accuride clip
                    104741
                    $288.64
                      Diffuser Panel VCC
                      103799
                      $469.22
                        Rubber nut M5
                        106436
                        $7.44
                          Compressor Drain tray EMT2117GK
                          103970
                          $20.40
                            Screw Pozi M5 x 16
                            106868
                            $4
                              Controller PCB Unit
                              108443
                              $824.23
                                Evaporator Fan Motor
                                108451
                                $209.70
                                  Insulated Lid Assembly
                                  103896
                                  $4,348.93
                                    Rubber Nut M4 short grip
                                    106603
                                    $6.16
                                      Panel Front Access Spot Weld Assy
                                      103885
                                      $510.81
                                        Container Support RH
                                        103888
                                        $363.73
                                          Container support LH
                                          103889
                                          $363.73
                                            Drawer Front
                                            103890
                                            $721.95
                                              Evaporator Compressor NBU1118Y
                                              104048
                                              $16.96
                                                Compressor MBP R600a EMX3118Y
                                                109046
                                                $1,377.83
