Product Brand

Adande

(Discontinued)

PRODUCT MODEL No

VCM1.CT

Product Serial Number

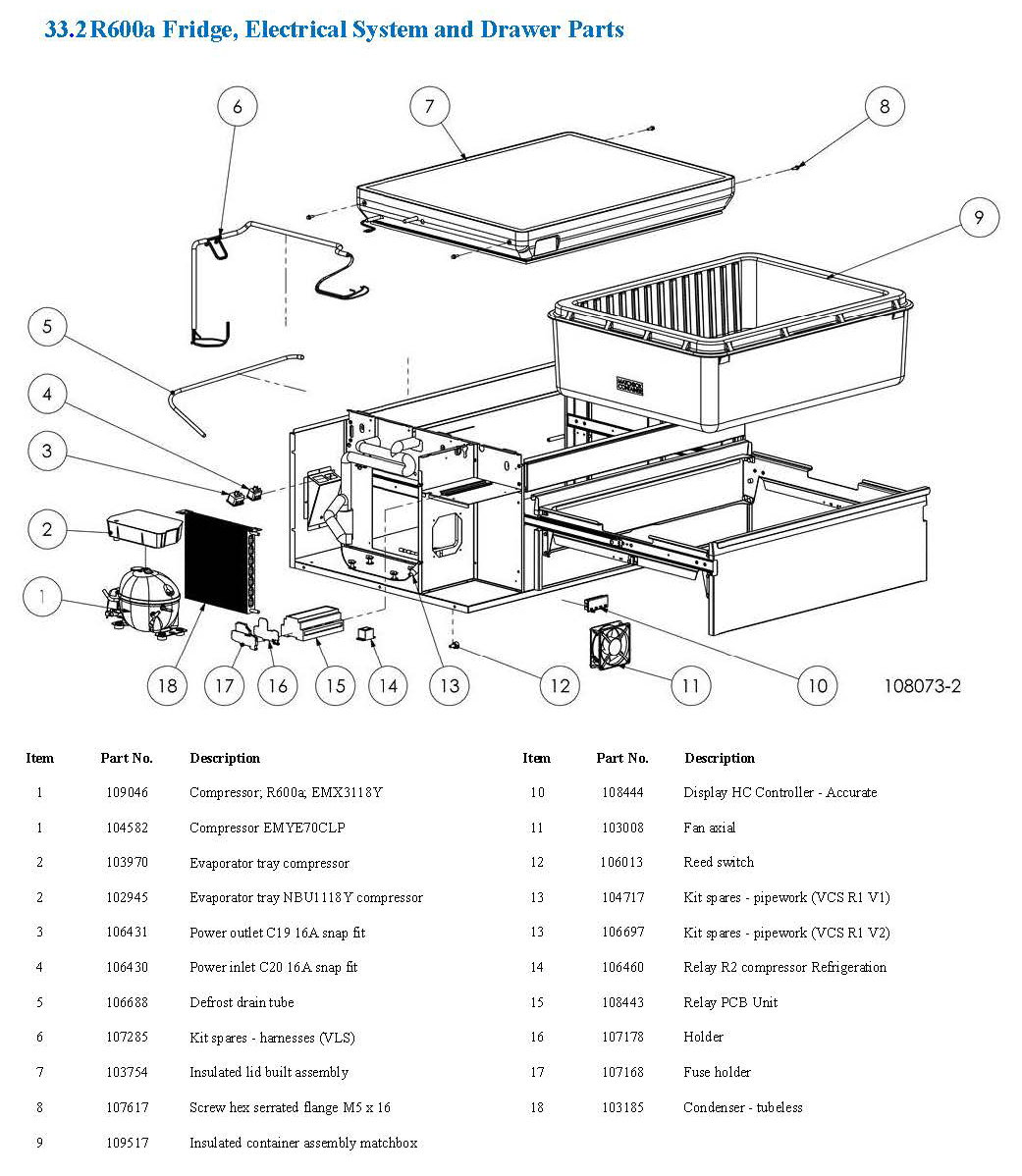

Spare Parts Drawing
spae.vcm_c1_d1_drawer_spare_parts spae.vcm_c1_d1_lid_spare_parts spae.vcm_c1_d1_housing_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Relay R2 compressor
    106460
    $48.27
      Bonded Washer
      103491
      $4
        Drawer Seal gasket Includes Heater
        103746
        $358.93
          Screw hex M5 x 12 ST-ST
          102082
          $4
            Rubber nut M5
            106436
            $4.95
              Lid Diffuser VCS VCR
              103729
              $207.51
                Compressor Drain tray EMT2117GK
                103970
                $13.59
                  Insulated Lid Assembly VCM VCS VLS
                  103754
                  $2,161.72
                    Rubber Nut M4 short grip
                    106603
                    $4.11
                      Screw Pozi M5 x 16
                      106868
                      $4
                        Condenser coil
                        103185
                        $368.16
                          Defrost drain tube
                          106688
                          $20.13
                            Defrost Heater Assembly VCS
                            104291
                            $612.69
                              Plug button snap in
                              103292
                              $4
                                Motor Condensor Fan
                                103008
                                $146.12
                                  Reed Switch
                                  106013
                                  $54.57
                                    Controller PCB Unit
                                    108443
                                    $665
                                      Evaporator coil painted VCS
                                      103745
                                      $510.33
                                        Compressor MBP R600a EMX3118Y
                                        109046
                                        $713.43
                                          Evaporator Fan Motor
                                          108451
                                          $113.67
