Product Brand

Woodson

PRODUCT MODEL No

W.CVS.M.25L

Product Serial Number

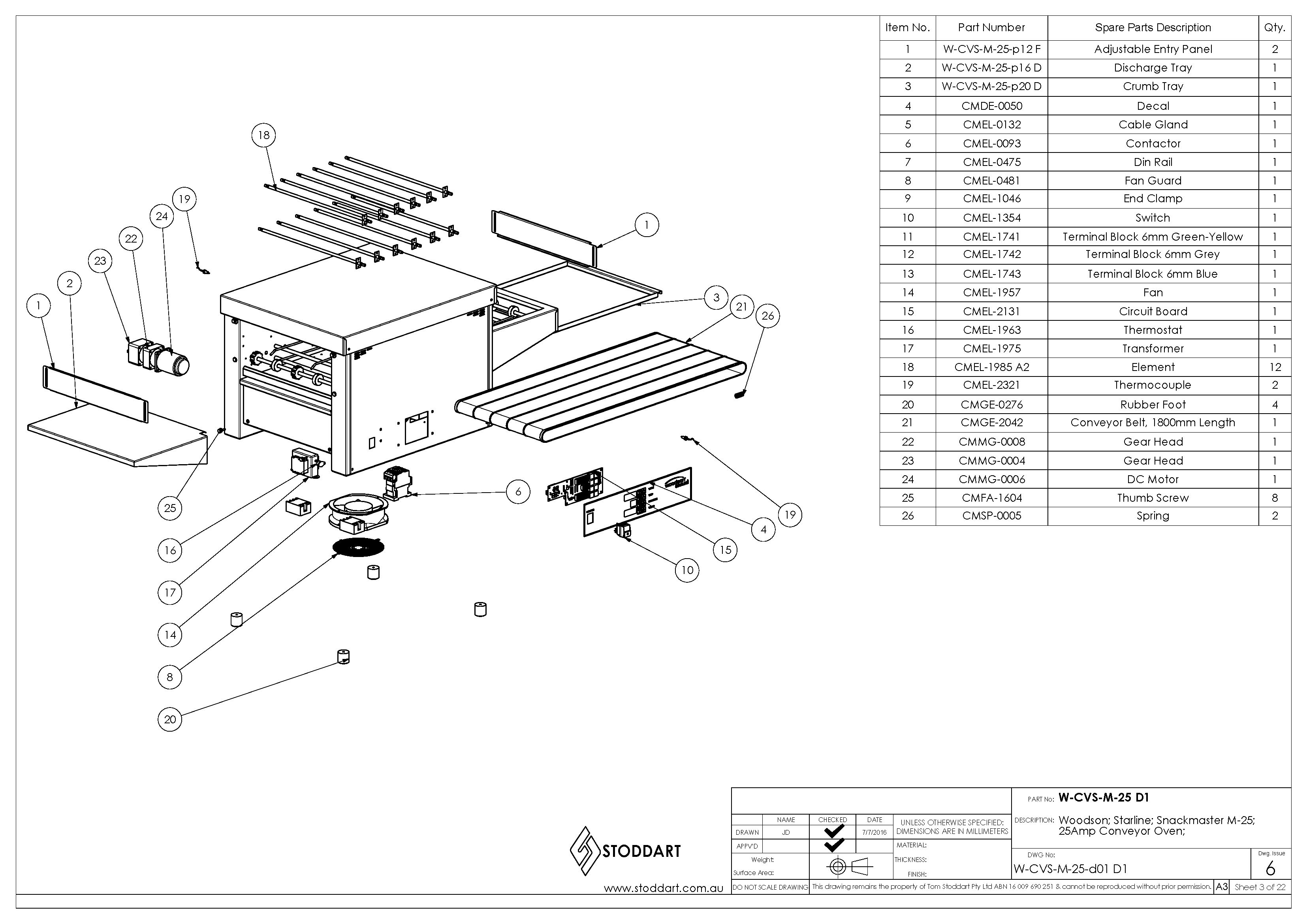

Spare Parts Drawing
w.cvs.m.25_d1_spare_parts_drawing
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Cable 3 Core Rubber Flex 2.5mm
    CMEL.1695
    $10.22
      Transformer 230V 12V 50VA
      CMEL.1975
      $170.83
        Rotary encoder 5 24VDC
        CMEL.2159
        $440.36
          Solid State Relay 40Amp 5 24VDC
          CMEL.2161
          $224.76
            Wiring Harness
            CMEL.2204
            $98.35
              Sprocket 16 Teeth 3/8" Pitch 8mm Bore
              CMGE.2040
              $22.54
                Chain Drive
                CMGE.2047
                $12.26
                  Links for chain
                  CMGE.2048
                  $4
                    Tefon Block 3/8" Hole
                    CMGE.2050
                    $54.80
                      Chamfered Tefon Block 3/8" Hole
                      CMGE.2055
                      $57.62
                        Gear head gear ratio 60
                        CMMG.0004
                        $262.36
                          Motor dc 15w 12v 3200rpm s6d15-12a
                          CMMG.0006
                          $272.16
                            Locating Pin 12 7mm x 15mm 304S S
                            SVMA.0278
                            $8.26
                              Gear head inter decimal 6mm shaft 10b
                              CMMG.0008
                              $272.16
                                Heat Sink KHS 120 Series
                                CMEL.2160
                                $33.94
