Product Brand

Adande

PRODUCT MODEL No

VCC1.GCW

Product Serial Number

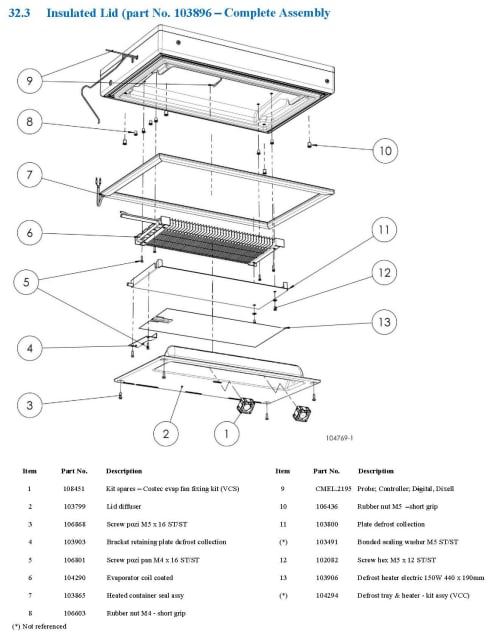

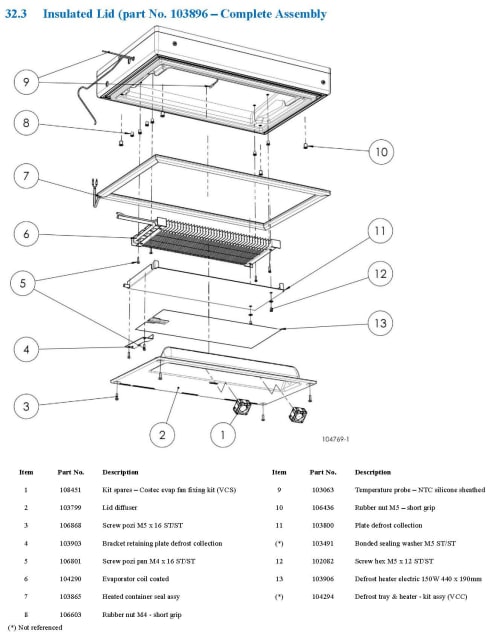

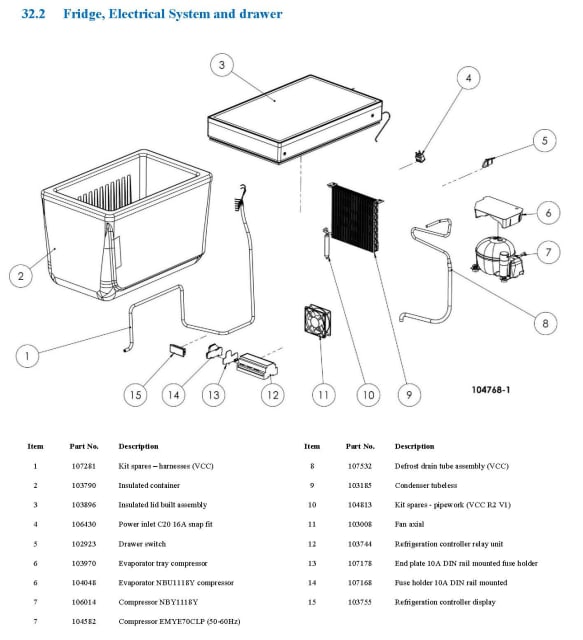

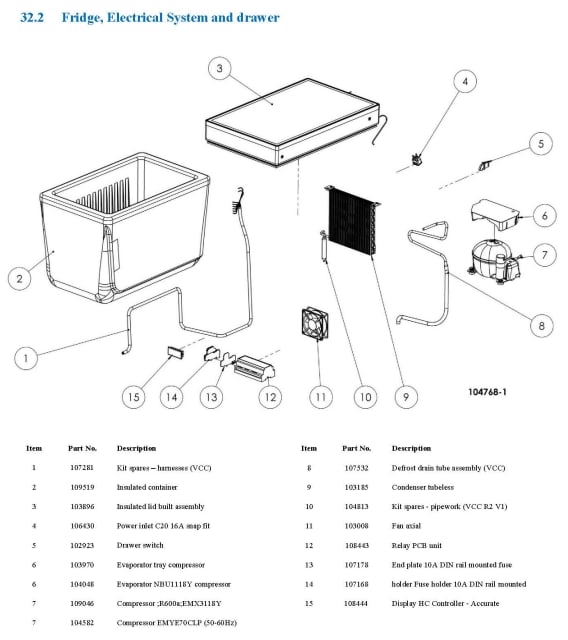

Spare Parts Drawing
spae.vcc_c1_d1_drawer_spare_parts spae.vcc_c1_d1_lid_spare_parts spae.vcc_c1_d1_housing_spare_parts spae.vcc_b2_drawer_spare_parts spae.vcc_b2_lid_spare_parts spae.vcc_b2_housing_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Evaporator coil painted VCC
    104290
    $763.93
      Defrost Heater Assembly VCC
      104294
      $749.70
        Rubber Nut M4 short grip
        106603
        $6.16
          Diffuser Panel VCC
          103799
          $469.22
            Panel Front Access Spot Weld Assy
            103885
            $510.81
              Motor Condensor Fan
              103008
              $147.48
                Container Support RH
                103888
                $363.73
                  Rubber nut M5
                  106436
                  $7.44
                    Container support LH
                    103889
                    $363.73
                      Screw hex M5 x 12 ST-ST
                      102082
                      $4
                        Screw Pozi M5 x 16
                        106868
                        $4
                          Drawer Front
                          103890
                          $721.95
                            Drawer slide assy LH Accuride clip
                            104740
                            $288.64
                              Drawer slide assy RH Accuride clip
                              104741
                              $288.64
                                Controller PCB Unit
                                108443
                                $824.23
                                  Compressor MBP R600a EMX3118Y
                                  109046
                                  $1,377.83
                                    Condenser coil
                                    103185
                                    $582.07
                                      Insulated Drawer VCC
                                      109519
                                      $1,030
                                        Container Support RH
                                        103888
                                        $363.73
                                          Container support LH
                                          103889
                                          $363.73
                                            Drawer Front
                                            103890
                                            $721.95
                                              Evaporator Compressor NBU1118Y
                                              104048
                                              $16.96
                                                Compressor MBP R600a EMX3118Y
                                                109046
                                                $1,377.83
                                                  Insulated Drawer VCC
                                                  109519
                                                  $1,030
                                                    Screw hex M5 x 12 ST-ST
                                                    102082
                                                    $4
                                                      Drawer Switch
                                                      102923
                                                      $57.51
                                                        Motor Condensor Fan
                                                        103008
                                                        $147.48
                                                          Condenser coil
                                                          103185
                                                          $582.07
                                                            Bonded Washer
                                                            103491
                                                            $4
                                                              Evaporator coil painted VCC
                                                              104290
                                                              $763.93
                                                                Defrost Heater Assembly VCC
                                                                104294
                                                                $749.70
                                                                  Drawer slide assy LH Accuride clip
                                                                  104740
                                                                  $288.64
                                                                    Drawer slide assy RH Accuride clip
                                                                    104741
                                                                    $288.64
                                                                      Diffuser Panel VCC
                                                                      103799
                                                                      $469.22
                                                                        Rubber nut M5
                                                                        106436
                                                                        $7.44
                                                                          Compressor Drain tray EMT2117GK
                                                                          103970
                                                                          $20.40
                                                                            Screw Pozi M5 x 16
                                                                            106868
                                                                            $4
                                                                              Controller PCB Unit
                                                                              108443
                                                                              $824.23
                                                                                Evaporator Fan Motor
                                                                                108451
                                                                                $209.70
                                                                                  Insulated Lid Assembly
                                                                                  103896
                                                                                  $4,348.93
                                                                                    Rubber Nut M4 short grip
                                                                                    106603
                                                                                    $6.16
                                                                                      Panel Front Access Spot Weld Assy
                                                                                      103885
                                                                                      $510.81
