Product Brand

Adande

(Discontinued)

PRODUCT MODEL No

VCR2.PT

Product Serial Number

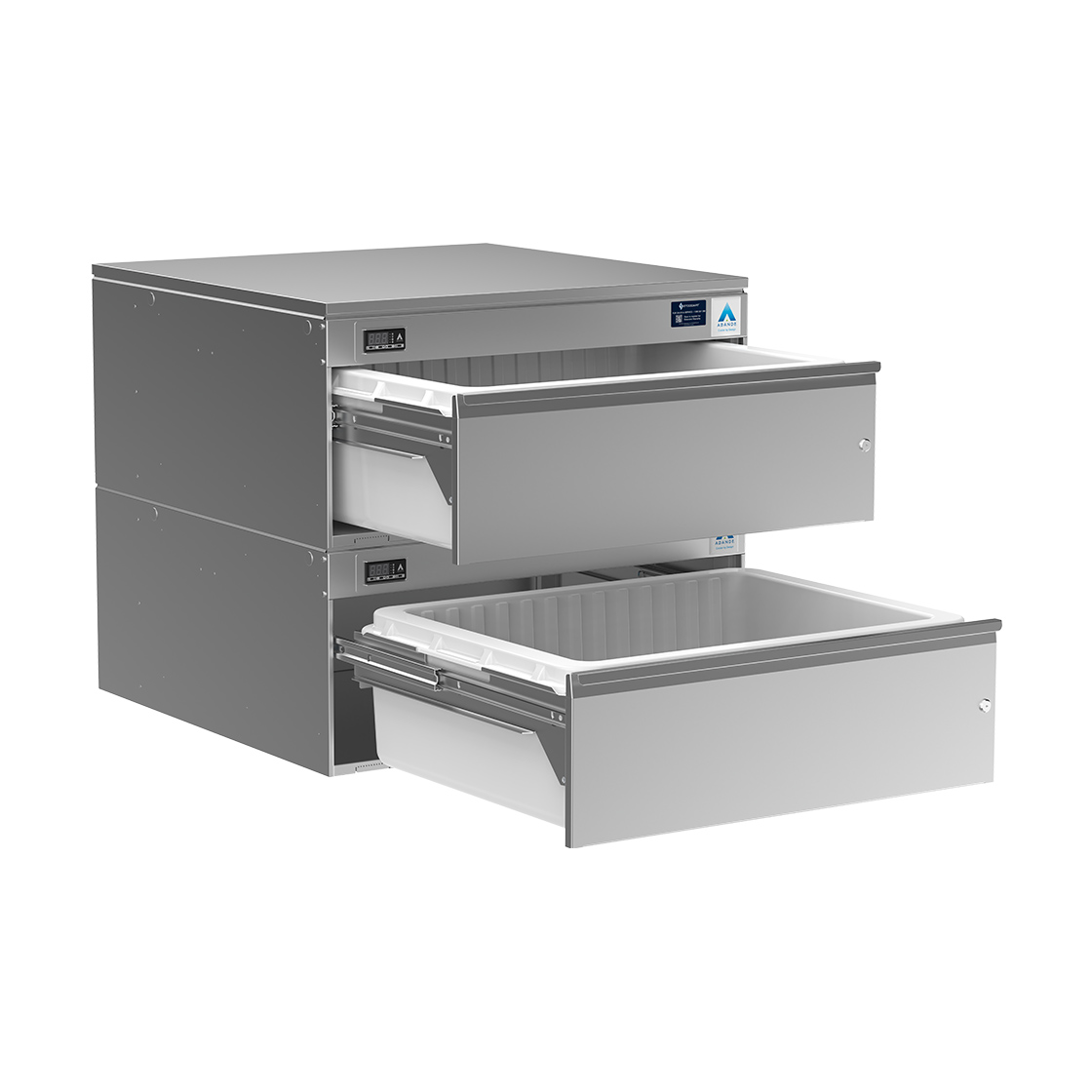

Spare Parts Drawing
spae.vcr_c1_d1_drawer_spare_parts spae.vcr_c1_d1_lid_spare_parts spae.vcr_c1_d1_housing_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Drawer Support LH
    107217
    $246.41
      Screw hex M5 x 12 ST-ST
      102082
      $4
        Motor Condensor Fan
        103008
        $147.48
          Condenser coil
          103185
          $582.07
            Evaporator Coil Painted VCR
            104073
            $763.93
              Bonded Washer
              103491
              $4
                Defrost Heater Assembly VCR
                104293
                $554.96
                  Ribbon cable extension
                  104659
                  $120.53
                    Drawer slide assy LH Accuride clip
                    104740
                    $288.64
                      Drawer slide assy RH Accuride clip
                      104741
                      $288.64
                        Lid Diffuser VCS VCR
                        103729
                        $439.71
                          Drawer Seal gasket Includes Heater
                          103746
                          $376.69
                            Rubber nut M5
                            106436
                            $7.44
                              Screw Pozi M5 x 16
                              106868
                              $4
                                Drawer Support RH
                                107216
                                $323.59
                                  Controller PCB Unit
                                  108443
                                  $824.23
                                    Plug button snap in
                                    103292
                                    $5.28
                                      Rubber Nut M4 short grip
                                      106603
                                      $6.16
                                        Compressor MBP R600a EMX3118Y
                                        109046
                                        $1,377.83
                                          Lid Diffuser VCS VCR
                                          103729
                                          $439.71
                                            Controller PCB Unit
                                            108443
                                            $824.23
                                              Drawer Seal gasket Includes Heater
                                              103746
                                              $376.69
                                                Compressor MBP R600a EMX3118Y
                                                109046
                                                $1,377.83
                                                  Rubber Nut M4 short grip
                                                  106603
                                                  $6.16
                                                    Rubber nut M5
                                                    106436
                                                    $7.44
                                                      Evaporator Fan Motor
                                                      108451
                                                      $209.70
                                                        Screw hex M5 x 12 ST-ST
                                                        102082
                                                        $4
                                                          Drawer Switch
                                                          102923
                                                          $57.51
                                                            Relay R2 compressor
                                                            106460
                                                            $48.27
                                                              Motor Condensor Fan
                                                              103008
                                                              $147.48
                                                                Condenser coil
                                                                103185
                                                                $582.07
                                                                  Compressor Drain tray EMT2117GK
                                                                  103970
                                                                  $20.40
                                                                    Evaporator Coil Painted VCR
                                                                    104073
                                                                    $763.93
                                                                      Screw Pozi M5 x 16
                                                                      106868
                                                                      $4
                                                                        Bonded Washer
                                                                        103491
                                                                        $4
                                                                          Defrost Heater Assembly VCS
                                                                          104291
                                                                          $643.01
                                                                            Defrost Heater Assembly VCR
                                                                            104293
                                                                            $554.96
                                                                              Drawer Support RH
                                                                              107216
                                                                              $323.59
                                                                                Plug button snap in
                                                                                103292
                                                                                $5.28
                                                                                  Ribbon cable extension
                                                                                  104659
                                                                                  $120.53
                                                                                    Drawer slide assy LH Accuride clip
                                                                                    104740
                                                                                    $288.64
                                                                                      Drawer Support LH
                                                                                      107217
                                                                                      $246.41
                                                                                        Drawer slide assy RH Accuride clip
                                                                                        104741
                                                                                        $288.64

                                                                                        Consumables
