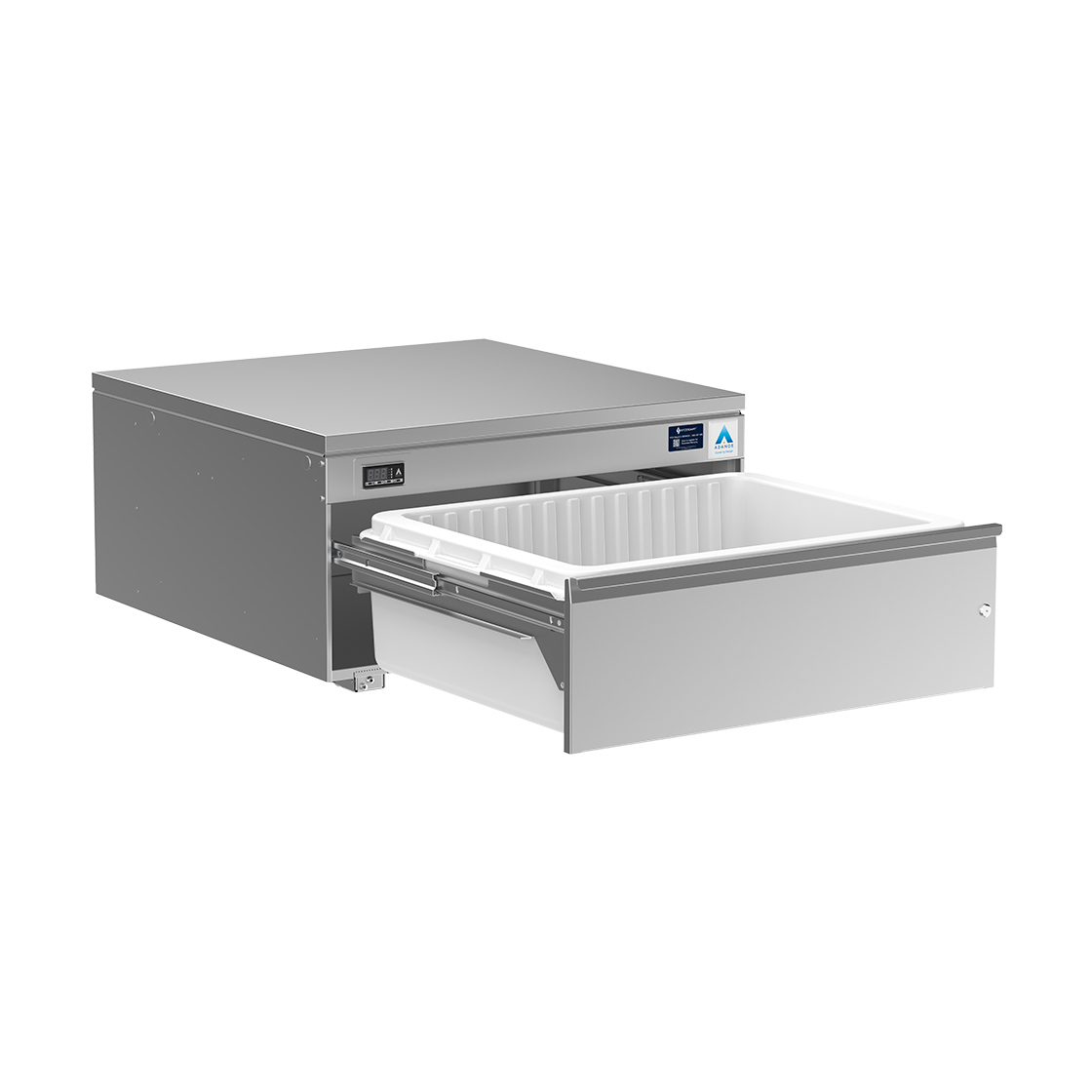

Product Brand

Adande

(Discontinued)

PRODUCT MODEL No

VCR1.RW

Product Serial Number

Spare Parts Drawing
spae.vcr_c1_d1_drawer_spare_parts spae.vcr_c1_d1_drawer_spare_parts spae.vcr_c1_d1_lid_spare_parts spae.vcr_c1_d1_lid_spare_parts spae.vcr_c1_d1_housing_spare_parts spae.vcr_c1_d1_housing_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Rubber nut M5
    106436
    $7.44
      Screw hex M5 x 12 ST-ST
      102082
      $4
        Drawer slide assy LH Accuride clip
        104740
        $288.64
          Condenser coil
          103185
          $582.07
            Bonded Washer
            103491
            $4
              Screw Pozi M5 x 16
              106868
              $4
                Drawer slide assy RH Accuride clip
                104741
                $288.64
                  Drawer Support RH
                  107216
                  $323.59
                    Motor Condensor Fan
                    103008
                    $147.48
                      Drawer Support LH
                      107217
                      $246.41
                        Lid Diffuser VCS VCR
                        103729
                        $439.71
                          Controller PCB Unit
                          108443
                          $824.23
                            Drawer Seal gasket Includes Heater
                            103746
                            $376.69
                              Defrost Heater Assembly VCR
                              104293
                              $554.96
                                Plug button snap in
                                103292
                                $5.28
                                  Evaporator Coil Painted VCR
                                  104073
                                  $763.93
                                    Rubber Nut M4 short grip
                                    106603
                                    $6.16
                                      Compressor MBP R600a EMX3118Y
                                      109046
                                      $1,377.83
                                        Ribbon cable extension
                                        104659
                                        $120.53
                                          Controller PCB Unit
                                          108443
                                          $824.23
                                            Evaporator Fan Motor
                                            108451
                                            $209.70
                                              Plug button snap in
                                              103292
                                              $5.28
                                                Rubber Nut M4 short grip
                                                106603
                                                $6.16
                                                  Compressor MBP R600a EMX3118Y
                                                  109046
                                                  $1,377.83
                                                    Relay R2 compressor
                                                    106460
                                                    $48.27
                                                      Screw hex M5 x 12 ST-ST
                                                      102082
                                                      $4
                                                        Drawer Switch
                                                        102923
                                                        $57.51
                                                          Motor Condensor Fan
                                                          103008
                                                          $147.48
                                                            Condenser coil
                                                            103185
                                                            $582.07
                                                              Evaporator Coil Painted VCR
                                                              104073
                                                              $763.93
                                                                Bonded Washer
                                                                103491
                                                                $4
                                                                  Defrost Heater Assembly VCS
                                                                  104291
                                                                  $643.01
                                                                    Defrost Heater Assembly VCR
                                                                    104293
                                                                    $554.96
                                                                      Ribbon cable extension
                                                                      104659
                                                                      $120.53
                                                                        Drawer slide assy LH Accuride clip
                                                                        104740
                                                                        $288.64
                                                                          Drawer slide assy RH Accuride clip
                                                                          104741
                                                                          $288.64
                                                                            Lid Diffuser VCS VCR
                                                                            103729
                                                                            $439.71
                                                                              Drawer Seal gasket Includes Heater
                                                                              103746
                                                                              $376.69
                                                                                Rubber nut M5
                                                                                106436
                                                                                $7.44
                                                                                  Compressor Drain tray EMT2117GK
                                                                                  103970
                                                                                  $20.40
                                                                                    Screw Pozi M5 x 16
                                                                                    106868
                                                                                    $4
                                                                                      Drawer Support RH
                                                                                      107216
                                                                                      $323.59
                                                                                        Drawer Support LH
                                                                                        107217
                                                                                        $246.41

                                                                                        Consumables
