Product Brand

Adande

(Discontinued)

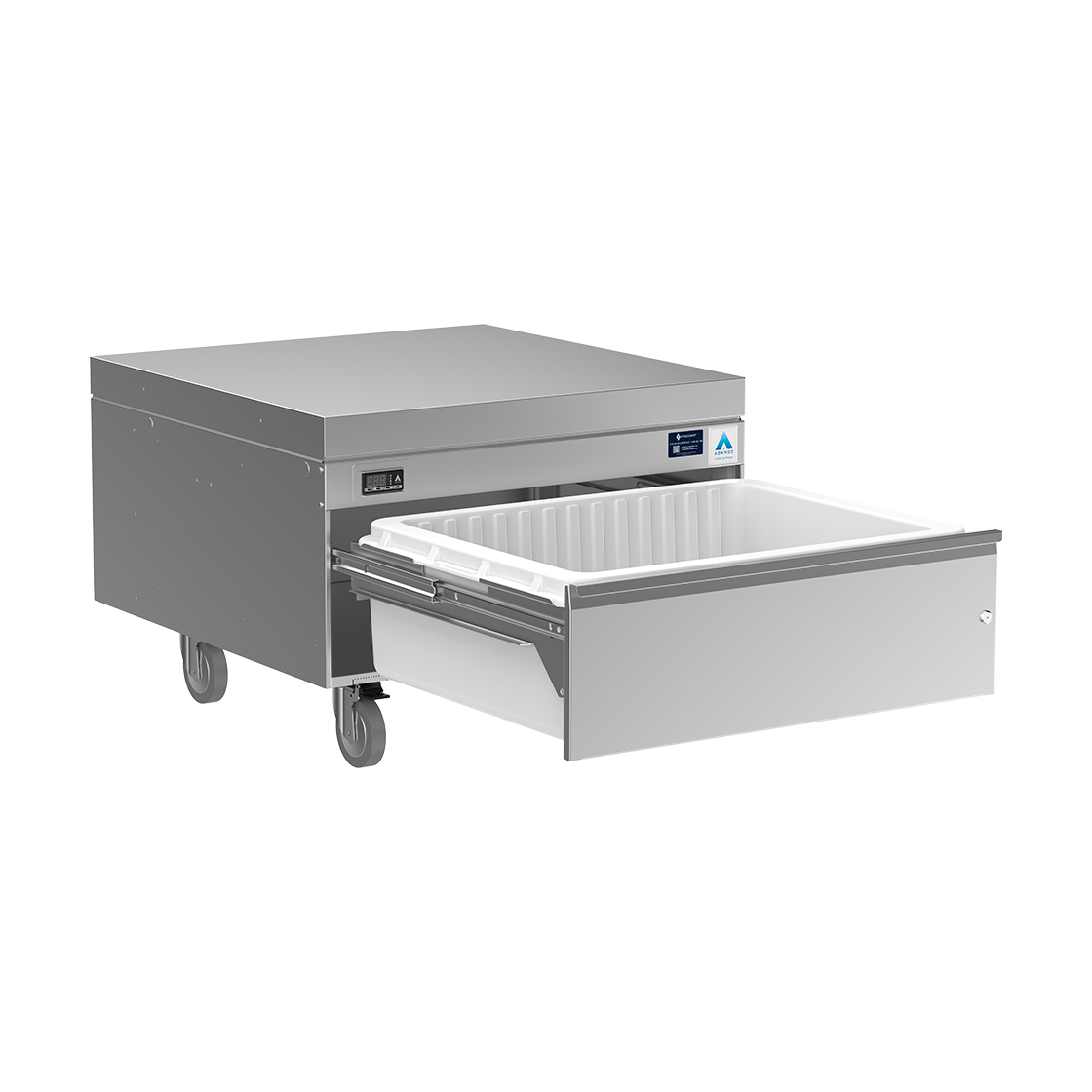

PRODUCT MODEL No

VCR1.HCHS

Product Serial Number

Spare Parts Drawing
spae.vcr_c1_d1_lid_spare_parts spae.vcr_c1_d1_housing_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Rubber nut M5
    106436
    $7.44
      Screw hex M5 x 12 ST-ST
      102082
      $4
        Condenser coil
        103185
        $582.07
          Drawer slide assy LH Accuride clip
          104740
          $288.64
            Drawer slide assy RH Accuride clip
            104741
            $288.64
              Screw Pozi M5 x 16
              106868
              $4
                Bonded Washer
                103491
                $4
                  Drawer Support RH
                  107216
                  $323.59
                    Drawer Support LH
                    107217
                    $246.41
                      Lid Diffuser VCS VCR
                      103729
                      $439.71
                        Motor Condensor Fan
                        103008
                        $147.48
                          Controller PCB Unit
                          108443
                          $824.23
                            Drawer Seal gasket Includes Heater
                            103746
                            $376.69
                              Defrost Heater Assembly VCR
                              104293
                              $554.96
                                Plug button snap in
                                103292
                                $5.28
                                  Evaporator Coil Painted VCR
                                  104073
                                  $763.93
                                    Rubber Nut M4 short grip
                                    106603
                                    $6.16
                                      Compressor MBP R600a EMX3118Y
                                      109046
                                      $1,377.83
                                        Ribbon cable extension
                                        104659
                                        $120.53
                                          Drawer Support LH
                                          107217
                                          $246.41
                                            Controller PCB Unit
                                            108443
                                            $824.23
                                              Evaporator Fan Motor
                                              108451
                                              $209.70
                                                Plug button snap in
                                                103292
                                                $5.28
                                                  Rubber Nut M4 short grip
                                                  106603
                                                  $6.16
                                                    Compressor MBP R600a EMX3118Y
                                                    109046
                                                    $1,377.83
                                                      Screw hex M5 x 12 ST-ST
                                                      102082
                                                      $4
                                                        Drawer Switch
                                                        102923
                                                        $57.51
                                                          Motor Condensor Fan
                                                          103008
                                                          $147.48
                                                            Condenser coil
                                                            103185
                                                            $582.07
                                                              Evaporator Coil Painted VCR
                                                              104073
                                                              $763.93
                                                                Bonded Washer
                                                                103491
                                                                $4
                                                                  Defrost Heater Assembly VCS
                                                                  104291
                                                                  $643.01
                                                                    Defrost Heater Assembly VCR
                                                                    104293
                                                                    $554.96
                                                                      Ribbon cable extension
                                                                      104659
                                                                      $120.53
                                                                        Drawer slide assy LH Accuride clip
                                                                        104740
                                                                        $288.64
                                                                          Drawer slide assy RH Accuride clip
                                                                          104741
                                                                          $288.64
                                                                            Lid Diffuser VCS VCR
                                                                            103729
                                                                            $439.71
                                                                              Drawer Seal gasket Includes Heater
                                                                              103746
                                                                              $376.69
                                                                                Rubber nut M5
                                                                                106436
                                                                                $7.44
                                                                                  Relay R2 compressor
                                                                                  106460
                                                                                  $48.27
                                                                                    Compressor Drain tray EMT2117GK
                                                                                    103970
                                                                                    $20.40
                                                                                      Screw Pozi M5 x 16
                                                                                      106868
                                                                                      $4
                                                                                        Drawer Support RH
                                                                                        107216
                                                                                        $323.59
