Product Brand

Adande

(Discontinued)

PRODUCT MODEL No

VLS1.CHS

Product Serial Number

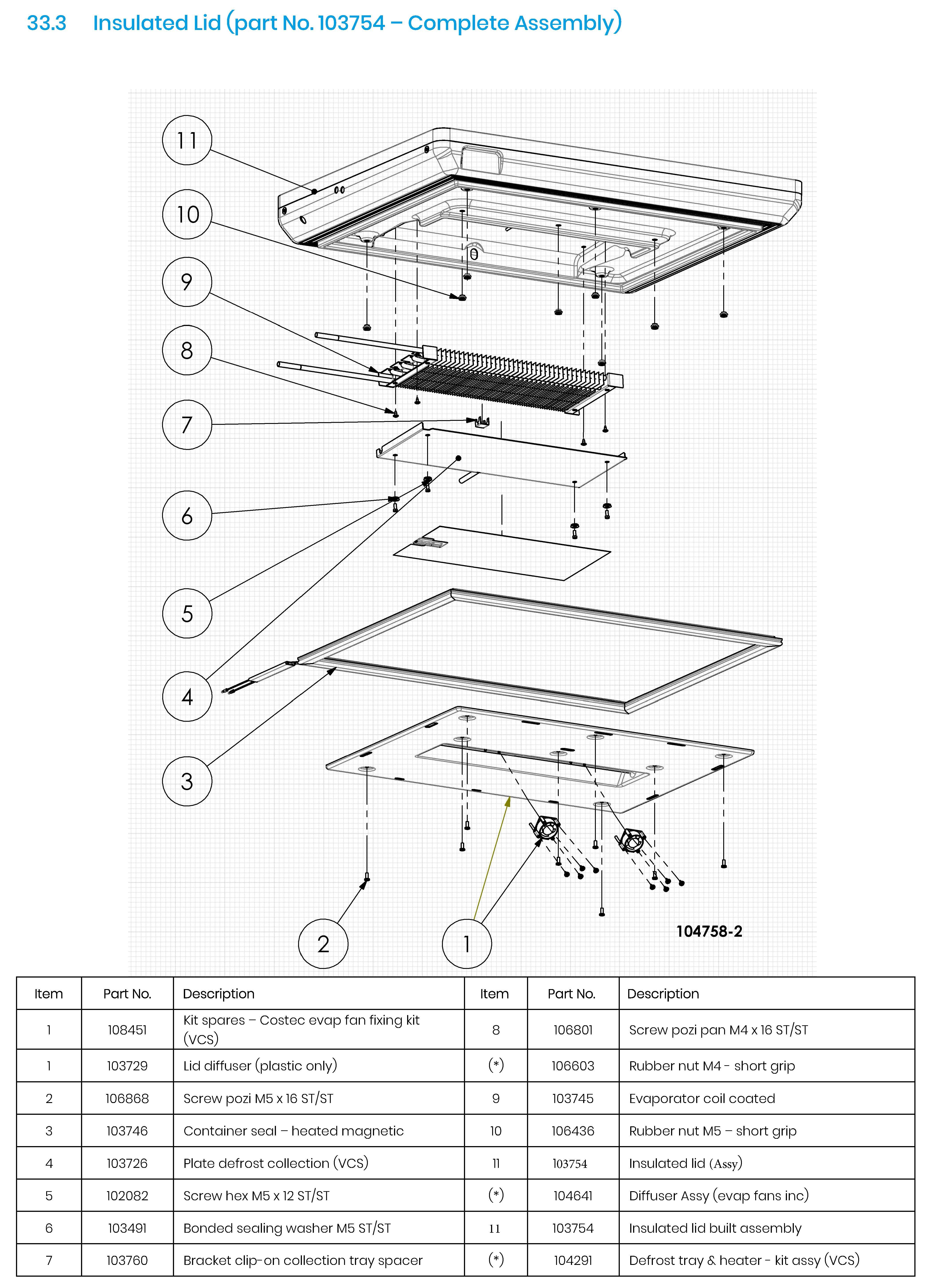

Spare Parts Drawing

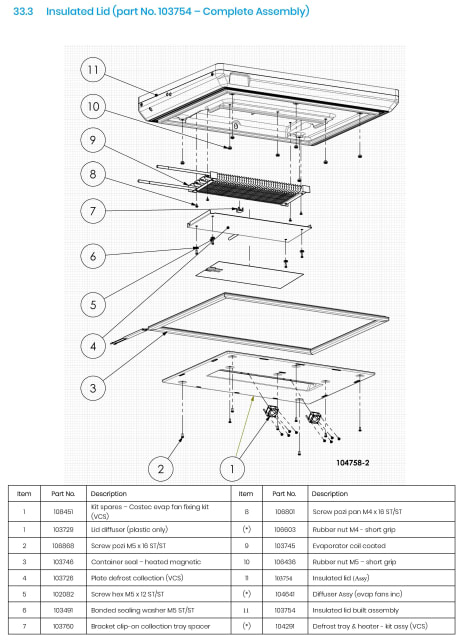

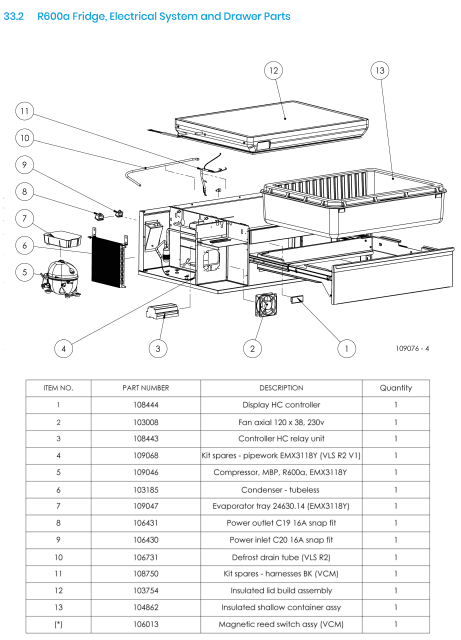

spae.vls_b2_lid_spare_parts spae.vls_b2_drawer_spare_parts spae.vls_b2_housing_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Screw hex M5 x 12 ST-ST
    102082
    $4
      Motor Condensor Fan
      103008
      $147.48
        Condenser coil
        103185
        $582.07
          Bonded Washer
          103491
          $4
            Defrost Heater Assembly VCS
            104291
            $643.01
              Evaporator Fan Diffuser Assembly
              104641
              $848.39
                Drawer slide assy LH Accuride clip
                104740
                $288.64
                  Drawer slide assy RH Accuride clip
                  104741
                  $288.64
                    Lid Diffuser VCS VCR
                    103729
                    $439.71
                      Reed Switch
                      106013
                      $81.74
                        Evaporator coil painted VCS
                        103745
                        $763.93
                          Drawer Seal gasket Includes Heater
                          103746
                          $376.69
                            Insulated Lid Assembly VCM VCS VLS
                            103754
                            $3,746.87
                              Rubber nut M5
                              106436
                              $7.44
                                Screw Pozi M5 x 16
                                106868
                                $4
                                  Controller PCB Unit
                                  108443
                                  $824.23
                                    Evaporator Fan Motor
                                    108451
                                    $209.70
                                      Plug button snap in
                                      103292
                                      $5.28
                                        Rubber Nut M4 short grip
                                        106603
                                        $6.16
                                          Drain pipe suit VLS
                                          106731
                                          $30.16
                                            Compressor MBP R600a EMX3118Y
                                            109046
                                            $1,377.83
                                              Panel Housing LH
                                              106040
                                              $338.22
                                                Panel Housing Rear
                                                106039
                                                $604.78
                                                  Panel Housing RH Spot Weld Assy
                                                  106035
                                                  $911.17
                                                    Drawer Front RT
                                                    107842
                                                    $986.11
                                                      Kit spares Pipework
                                                      109068
                                                      $442.91
