Product Brand

Airex

PRODUCT MODEL No

AXR.UCGN.4

Product Serial Number

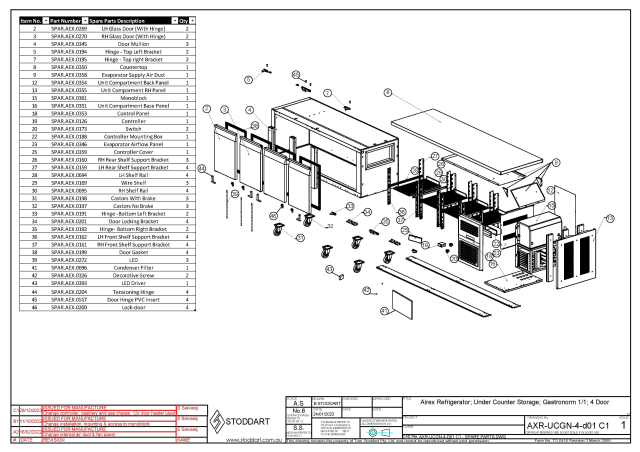

Spare Parts Drawing

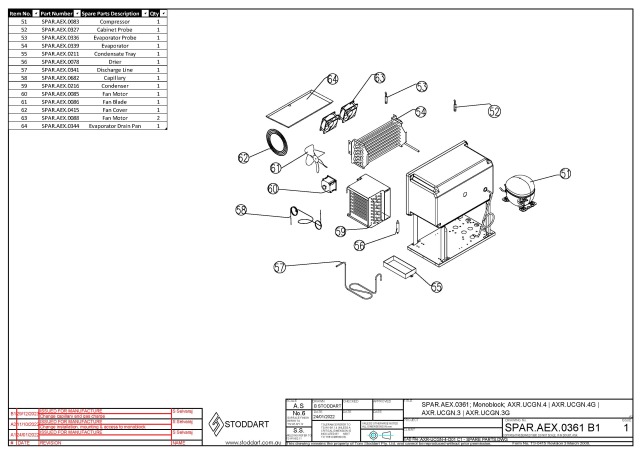

axr.ucgn.4_c1_drawing_spare_parts axr.ucgn.4_c1_monoblock_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Compressor R290
    SPAR.AEX.0083
    $569.10
      Fan Motor Evaporator Xinruilian
      SPAR.AEX.0088
      $97.29
        Dixell Controller
        SPAR.AEX.0126
        $160.53
          Lock Door
          SPAR.AEX.0200
          $21.90
            1/ 4" Filter Drier
            SPAR.AEX.0078
            $14.58
              Fan Motor Condenser
              SPAR.AEX.0085
              $71.01
                Fan Blade Φ200/34deg
                SPAR.AEX.0086
                $9.24
                  Condensate Tray
                  SPAR.AEX.0211
                  $27.24
                    Shelf Wire
                    SPAR.AEX.0169
                    $43.77
                      Hinge Bottom Left Bracket
                      SPAR.AEX.0191
                      $19.47
                        Hinge Bottom Right Bracket
                        SPAR.AEX.0192
                        $19.47
                          LED
                          SPAR.AEX.0272
                          $92.43
                            Hinge Top Left Bracket
                            SPAR.AEX.0194
                            $19.47
                              Hinge Top Right Bracket
                              SPAR.AEX.0195
                              $19.47
                                Castor No Brake
                                SPAR.AEX.0197
                                $58.38
                                  Castor With Brake
                                  SPAR.AEX.0198
                                  $58.38
                                    Door Gasket 578x416mm
                                    SPAR.AEX.0199
                                    $60.81
                                      Door Mullion
                                      SPAR.AEX.0345
                                      $83.19
                                        Controller Cover
                                        SPAR.AEX.0359
                                        $21.90
                                          Door hinge PVC insert Top Hinge
                                          SPAR.AEX.0517
                                          $4
                                            Screw Decorative
                                            SPAR.AEX.0326
                                            $6.81
                                              Fan Bracket 200mm diameter
                                              SPAR.AEX.0415
                                              $11.19
                                                Monoblock
                                                SPAR.AEX.0361
                                                $1,702.48
                                                  LED Driver Power supply
                                                  SPAR.AEX.0393
                                                  $52.53
                                                    Tensioning Hinge
                                                    SPAR.AEX.0204
                                                    $29.19
                                                      RH Shelf Rail
                                                      SPAR.AEX.0695
                                                      $34.05
                                                        Condenser Filter
                                                        SPAR.AEX.0696
                                                        $20.43
                                                          Capillary 1.1*3980mm
                                                          SPAR.AEX.0682
                                                          $30.28
                                                            LH Shelf Rail
                                                            SPAR.AEX.0694
                                                            $34.05
