Product Brand

Airex

PRODUCT MODEL No

AXA.FDFSSQ.09

Product Serial Number

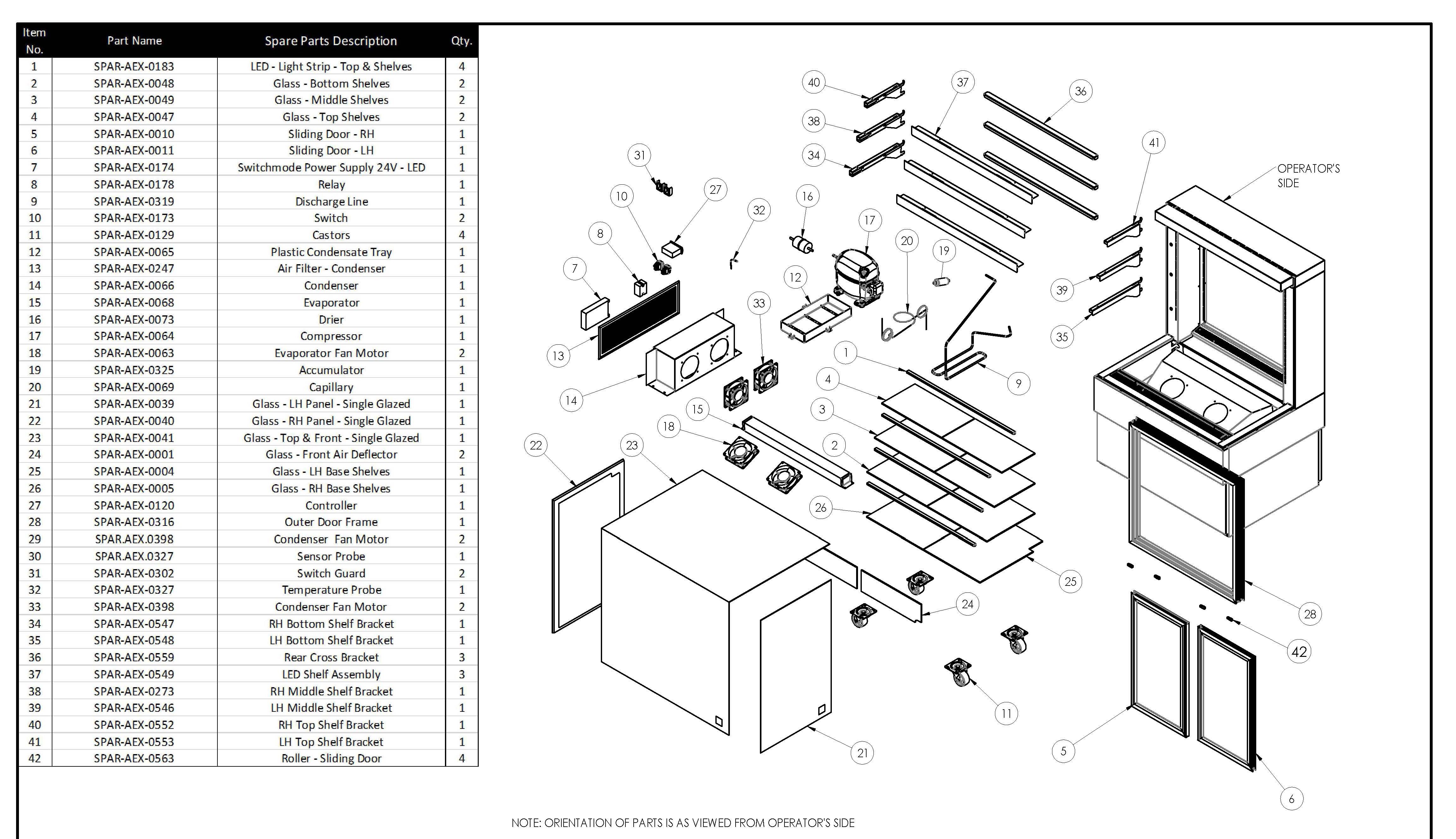

Spare Parts Drawing
axa.fdfssq.09_a1_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Compressor R134A
    SPAR.AEX.0064
    $549.66
      Dixell Controller
      SPAR.AEX.0120
      $97.29
        Fan Motor SEADA SA 1238A2LBL 1300 Speed
        SPAR.AEX.0063
        $58.38
          Castors
          SPAR.AEX.0129
          $19.47
            Relay
            SPAR.AEX.0178
            $53.49
              LED Light Strip Top shelves 720mm
              SPAR.AEX.0183
              $38.91
                Air Filter Condensor
                SPAR.AEX.0247
                $17.01
                  Plastic Condensate Tray
                  SPAR.AEX.0065
                  $24.33
                    Condensor
                    SPAR.AEX.0066
                    $340.02
                      3/8" filter drier
                      SPAR.AEX.0073
                      $34.05
                        MeanWell Power supply LRS-100-24
                        SPAR.AEX.0174
                        $75.87
                          Sliding Door RH 374mm x 664mm
                          SPAR.AEX.0010
                          $189.02
                            Sliding Door LH 374mm x 664mm
                            SPAR.AEX.0011
                            $136.20
                              Accumulator 3/8"
                              SPAR.AEX.0325
                              $32.10
                                Glass Top Shelves 404mm x 225mm
                                SPAR.AEX.0047
                                $29.19
                                  Glass Middle Shelves 404mm x 275mm
                                  SPAR.AEX.0049
                                  $33.57
                                    Glass LH Base Shelves 382mm x 452 5mm
                                    SPAR.AEX.0004
                                    $48.63
                                      Glass RH Base Shelves 382mm x 452 5mm
                                      SPAR.AEX.0005
                                      $48.63
                                        Fan Motor
                                        SPAR.AEX.0398
                                        $38.91
                                          Bracket Assembly RH Middle Shelf
                                          SPAR.AEX.0273
                                          $77.82
                                            Bracket Assembly LH Middle Shelf
                                            SPAR.AEX.0546
                                            $36
                                              Bracket Assembly RH Botttom Shelf
                                              SPAR.AEX.0547
                                              $47.19
                                                Bracket Assembly LH Bottom Shelf
                                                SPAR.AEX.0548
                                                $23.85
                                                  LED Shelf Assembly 900mm With Brackets
                                                  SPAR.AEX.0549
                                                  $72.96
                                                    Bracket Assembly RH Top Shelf
                                                    SPAR.AEX.0552
                                                    $36.48
                                                      Bracket Assembly LH Top Shelf
                                                      SPAR.AEX.0553
                                                      $36.48
                                                        Rear Shelf Bracket 900mm
                                                        SPAR.AEX.0559
                                                        $35.01
                                                          Glass Front Air Deflector
                                                          SPAR.AEX.0001
                                                          $22.86
                                                            Roller Sliding Door Cold display
                                                            SPAR.AEX.0563
                                                            $9.72
