Product Brand

Airex

PRODUCT MODEL No

AXA.FDFSSQ.12

Product Serial Number

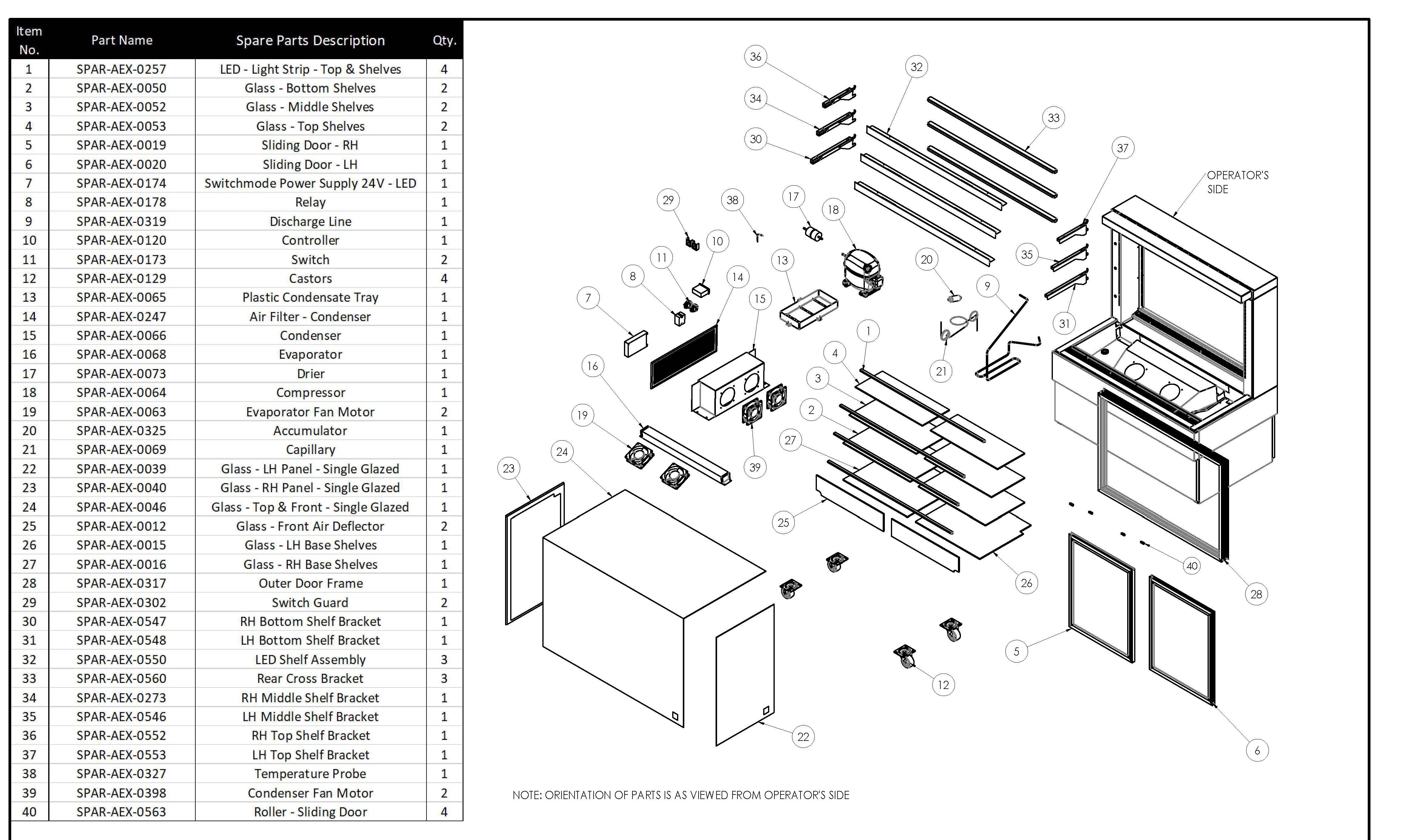

Spare Parts Drawing
axa.fdfssq.12_a1_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Compressor R134A
    SPAR.AEX.0064
    $549.66
      Dixell Controller
      SPAR.AEX.0120
      $97.29
        Fan Motor SEADA SA 1238A2LBL 1300 Speed
        SPAR.AEX.0063
        $58.38
          Castors
          SPAR.AEX.0129
          $19.47
            Relay
            SPAR.AEX.0178
            $53.49
              Air Filter Condensor
              SPAR.AEX.0247
              $17.01
                Plastic Condensate Tray
                SPAR.AEX.0065
                $24.33
                  Condensor
                  SPAR.AEX.0066
                  $340.02
                    3/8" filter drier
                    SPAR.AEX.0073
                    $34.05
                      MeanWell Power supply LRS-100-24
                      SPAR.AEX.0174
                      $75.87
                        Sliding Door RH 524mm x 664mm
                        SPAR.AEX.0019
                        $147.87
                          Sliding Door LH 524mm x 664mm
                          SPAR.AEX.0020
                          $147.87
                            Accumulator 3/8"
                            SPAR.AEX.0325
                            $32.10
                              Glass Bottom Shelves 554mm x 325mm
                              SPAR.AEX.0050
                              $48.63
                                Glass Middle Shelves 554mm x 275mm
                                SPAR.AEX.0052
                                $43.77
                                  Glass Top Shelves 554mm x 225mm
                                  SPAR.AEX.0053
                                  $41.34
                                    Glass LH Base Shelves 532mm x 452 5mm
                                    SPAR.AEX.0015
                                    $53.49
                                      Glass RH Base Shelves 532mm x 452 5mm
                                      SPAR.AEX.0016
                                      $51.06
                                        Fan Motor
                                        SPAR.AEX.0398
                                        $38.91
                                          Bracket Assembly RH Middle Shelf
                                          SPAR.AEX.0273
                                          $77.82
                                            Bracket Assembly LH Middle Shelf
                                            SPAR.AEX.0546
                                            $36
                                              Bracket Assembly RH Botttom Shelf
                                              SPAR.AEX.0547
                                              $47.19
                                                Bracket Assembly LH Bottom Shelf
                                                SPAR.AEX.0548
                                                $23.85
                                                  LED Shelf Assembly 1200mm
                                                  SPAR.AEX.0550
                                                  $87.57
                                                    Bracket Assembly RH Top Shelf
                                                    SPAR.AEX.0552
                                                    $36.48
                                                      Bracket Assembly LH Top Shelf
                                                      SPAR.AEX.0553
                                                      $36.48
                                                        Rear Shelf Bracket 1200mm
                                                        SPAR.AEX.0560
                                                        $60.81
                                                          Glass Front Air Deflector 555mm x 125mm
                                                          SPAR.AEX.0012
                                                          $34.05
                                                            Roller Sliding Door Cold display
                                                            SPAR.AEX.0563
                                                            $9.72
                                                              Door Frame Outer
                                                              SPAR.AEX.0317
                                                              $316.45
