Product Brand

Airex

PRODUCT MODEL No

AXF.UCGN.2

Product Serial Number

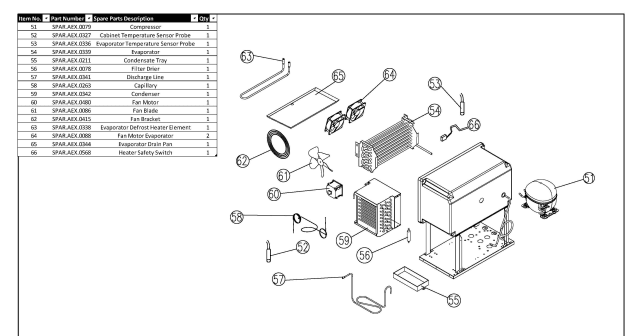

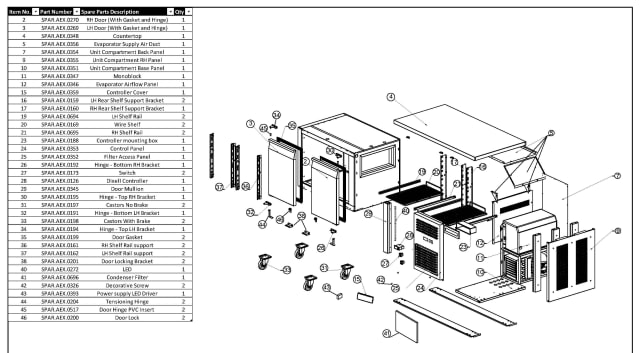

Spare Parts Drawing
axf.ucgn.2_c1_spare_parts axf.ucgn.2_c1_monoblock_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Compressor Secop NLE12.6CNL
    SPAR.AEX.0079
    $924.21
      Fan Motor Evaporator Xinruilian
      SPAR.AEX.0088
      $97.29
        Dixell Controller
        SPAR.AEX.0126
        $160.53
          Lock Door
          SPAR.AEX.0200
          $21.90
            1/ 4" Filter Drier
            SPAR.AEX.0078
            $14.58
              Fan Blade Φ200/34deg
              SPAR.AEX.0086
              $9.24
                Condensate Tray
                SPAR.AEX.0211
                $27.24
                  Shelf Wire
                  SPAR.AEX.0169
                  $43.77
                    Hinge Bottom Left Bracket
                    SPAR.AEX.0191
                    $19.47
                      Hinge Bottom Right Bracket
                      SPAR.AEX.0192
                      $19.47
                        LED
                        SPAR.AEX.0272
                        $92.43
                          Hinge Top Left Bracket
                          SPAR.AEX.0194
                          $19.47
                            Hinge Top Right Bracket
                            SPAR.AEX.0195
                            $19.47
                              Castor No Brake
                              SPAR.AEX.0197
                              $58.38
                                Castor With Brake
                                SPAR.AEX.0198
                                $58.38
                                  Door Gasket 578x416mm
                                  SPAR.AEX.0199
                                  $60.81
                                    Controller Cover
                                    SPAR.AEX.0359
                                    $21.90
                                      Door hinge PVC insert Top Hinge
                                      SPAR.AEX.0517
                                      $4
                                        Screw Decorative
                                        SPAR.AEX.0326
                                        $6.81
                                          Fan Bracket 200mm diameter
                                          SPAR.AEX.0415
                                          $11.19
                                            LED Driver Power supply
                                            SPAR.AEX.0393
                                            $52.53
                                              Tensioning Hinge
                                              SPAR.AEX.0204
                                              $29.19
                                                Fan Motor Weiguang ECM7120DAA2KA021 RPM1800
                                                SPAR.AEX.0480
                                                $330.78
                                                  Heater Safety Switch
                                                  SPAR.AEX.0568
                                                  $11.19
                                                    RH Shelf Rail
                                                    SPAR.AEX.0695
                                                    $34.05
                                                      Condenser Filter
                                                      SPAR.AEX.0696
                                                      $20.43
                                                        LH Shelf Rail
                                                        SPAR.AEX.0694
                                                        $34.05
