Product Brand

Airex

PRODUCT MODEL No

AXR.URGN.2

Product Serial Number

Spare Parts Drawing

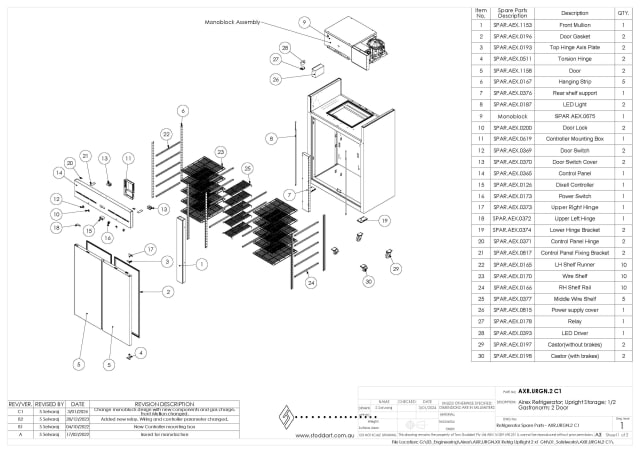

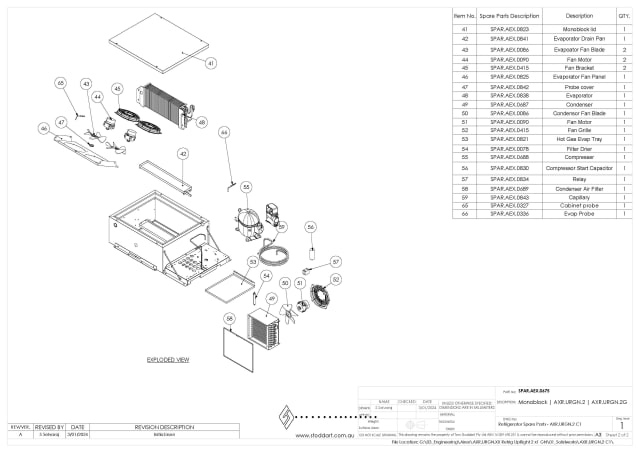

axr.urgn.2_c2_drawing_spare_parts axr.urgn.2_c2_monoblock_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Dixell Controller
    SPAR.AEX.0126
    $160.53
      Relay
      SPAR.AEX.0178
      $53.49
        Lock Door
        SPAR.AEX.0200
        $21.90
          1/ 4" Filter Drier
          SPAR.AEX.0078
          $14.58
            Fan Blade Φ200/34deg
            SPAR.AEX.0086
            $9.24
              Runner Shelf LH
              SPAR.AEX.0165
              $34.05
                Runner Shelf RH
                SPAR.AEX.0166
                $34.05
                  Shelf Wire
                  SPAR.AEX.0170
                  $68.10
                    Bottom PVC Hinge Axis Plate
                    SPAR.AEX.0193
                    $4
                      Castor No Brake
                      SPAR.AEX.0197
                      $58.38
                        Castor With Brake
                        SPAR.AEX.0198
                        $58.38
                          Upper RH Hinge Bracket
                          SPAR.AEX.0373
                          $21
                            Lower Hinge Bracket
                            SPAR.AEX.0374
                            $20.91
                              Upper LH Hinge Bracket
                              SPAR.AEX.0372
                              $16.77
                                Control Panel Hinge
                                SPAR.AEX.0371
                                $7.77
                                  Fan Bracket 200mm diameter
                                  SPAR.AEX.0415
                                  $11.19
                                    Door Switch
                                    SPAR.AEX.0369
                                    $4.38
                                      Wire Shelf Middle
                                      SPAR.AEX.0377
                                      $17.52
                                        LED Driver Power supply
                                        SPAR.AEX.0393
                                        $52.53
                                          Door Gasket
                                          SPAR.AEX.0196
                                          $27.24
                                            Tensioning Hinge
                                            SPAR.AEX.0511
                                            $26.76
                                              Controller Mounting Box
                                              SPAR.AEX.0619
                                              $7.77
                                                Monoblock
                                                SPAR.AEX.0675
                                                $1,897.70
                                                  Condenser Filter 382mm x 316mm
                                                  SPAR.AEX.0689
                                                  $7.54
                                                    Evaporator
                                                    SPAR.AEX.0838
                                                    $374.55
                                                      Condenser
                                                      SPAR.AEX.0687
                                                      $374.55
