Product Brand

Airex

(Discontinued)

PRODUCT MODEL No

AXH.FDFSSQ.15

Product Serial Number

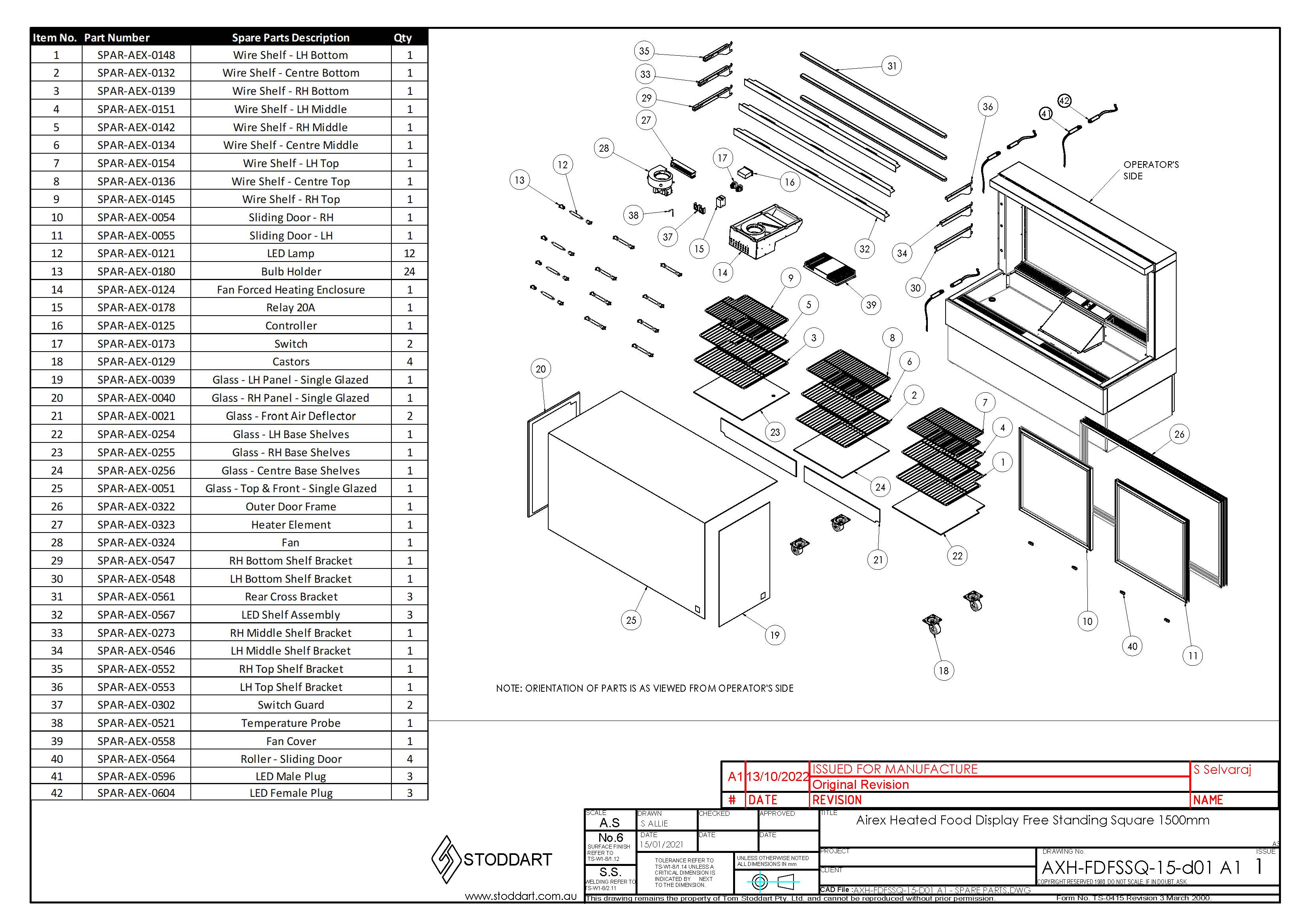

Spare Parts Drawing
axh.fdfssq.15_a1_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    LED Lamp
    SPAR.AEX.0121
    $31.62
      Dixell Controller
      SPAR.AEX.0125
      $107.01
        Shelf Bottom Middle
        SPAR.AEX.0132
        $60.81
          Wire Shelf RH Bottom
          SPAR.AEX.0139
          $63.24
            Wire Shelf LH Bottom
            SPAR.AEX.0148
            $63.24
              Castors
              SPAR.AEX.0129
              $19.47
                Relay
                SPAR.AEX.0178
                $53.49
                  Fan Forced Heating Enclosure
                  SPAR.AEX.0124
                  $413.46
                    Sliding Door RH 665mm x 670mm
                    SPAR.AEX.0054
                    $273.36
                      Sliding Door LH 665mm x 670mm
                      SPAR.AEX.0055
                      $273.36
                        Wire Shelf Centre Middle
                        SPAR.AEX.0134
                        $59.34
                          Wire Shelf Centre Top
                          SPAR.AEX.0136
                          $54.48
                            Wire Shelf RH Middle
                            SPAR.AEX.0142
                            $60.33
                              Wire Shelf RH Top
                              SPAR.AEX.0145
                              $55.95
                                Wire Shelf LH Middle
                                SPAR.AEX.0151
                                $60.33
                                  Wire Shelf LH Top
                                  SPAR.AEX.0154
                                  $55.44
                                    Glass LH Base Shelves
                                    SPAR.AEX.0254
                                    $52.53
                                      Base Shelf Glass Centre
                                      SPAR.AEX.0256
                                      $35.52
                                        Dixell Controller sensor probe
                                        SPAR.AEX.0521
                                        $32.10
                                          Bracket Assembly RH Middle Shelf
                                          SPAR.AEX.0273
                                          $77.82
                                            Bracket Assembly LH Middle Shelf
                                            SPAR.AEX.0546
                                            $36
                                              Bracket Assembly RH Botttom Shelf
                                              SPAR.AEX.0547
                                              $47.19
                                                Bracket Assembly LH Bottom Shelf
                                                SPAR.AEX.0548
                                                $23.85
                                                  Bracket Assembly RH Top Shelf
                                                  SPAR.AEX.0552
                                                  $36.48
                                                    Bracket Assembly LH Top Shelf
                                                    SPAR.AEX.0553
                                                    $36.48
                                                      Rear Shelf Bracket 1500mm
                                                      SPAR.AEX.0561
                                                      $71.01
                                                        Radial Fan
                                                        SPAR.AEX.0324
                                                        $166.83
                                                          Roller Sliding Door Heated display
                                                          SPAR.AEX.0564
                                                          $9.72
                                                            LED Shelf Assembly 1500mm
                                                            SPAR.AEX.0567
                                                            $128.91
                                                              Male LED Plug M12 small aviation plug
                                                              SPAR.AEX.0596
                                                              $60.81
