Product Brand

Airex

(Discontinued)

PRODUCT MODEL No

AXR.PM.1025

Product Serial Number

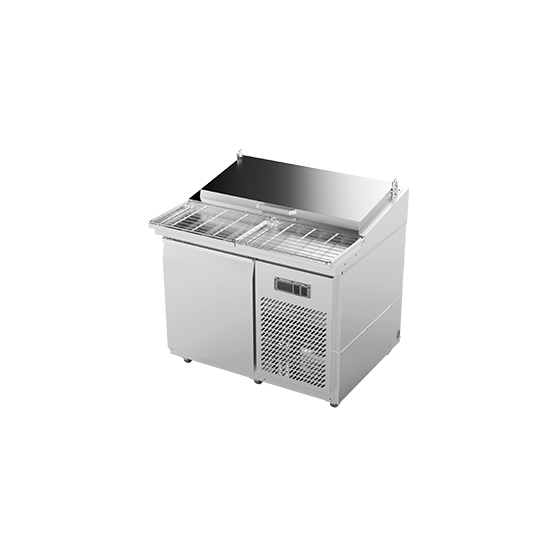

Spare Parts Drawing
axr.pm.1025_a1_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Dixell Controller
    SPAR.AEX.0120
    $97.29
      Fan Blade Φ200/28deg Condenser fan blade
      SPAR.AEX.0077
      $9.72
        3/8" filter drier
        SPAR.AEX.0073
        $34.05
          Hinge Bottom Left Bracket
          SPAR.AEX.0191
          $19.47
            Hinge Top Left Bracket
            SPAR.AEX.0194
            $19.47
              Controller Cover
              SPAR.AEX.0359
              $21.90
                Door hinge PVC insert Top Hinge
                SPAR.AEX.0517
                $4
                  Fan Bracket 200mm diameter
                  SPAR.AEX.0415
                  $11.19
                    Tensioning Hinge
                    SPAR.AEX.0204
                    $29.19
                      Relay 841-S-1A-D 200/240v AC
                      SPAR.AEX.0300
                      $63.24
                        Fan Cover
                        SPAR.AEX.0407
                        $7.29
                          Fan Seada
                          SPAR.AEX.0413
                          $58.38
                            Foot
                            SPAR.AEX.0414
                            $12.15
                              Condensate Tray
                              SPAR.AEX.0416
                              $31.62
                                Float Switch Cynergy3
                                SPAR.AEX.0417
                                $29.19
                                  Door Gasket
                                  SPAR.AEX.0421
                                  $22.38
                                    Night Lid Bracket RH
                                    SPAR.AEX.0426
                                    $14.58
                                      Night Lid Bracket LH
                                      SPAR.AEX.0428
                                      $14.58
                                        Castor With Brake
                                        SPAR.AEX.0477
                                        $19.47
                                          TX Valve Danfoss TN2
                                          SPAR.AEX.0479
                                          $230.55
                                            Evaporator
                                            SPAR.AEX.0437
                                            $267.54
                                              Condenser
                                              SPAR.AEX.0439
                                              $501.03
                                                Crumb Tray
                                                SPAR.AEX.0449
                                                $136.20
                                                  Tray Race
                                                  SPAR.AEX.0450
                                                  $119.16
                                                    Night Lid
                                                    SPAR.AEX.0451
                                                    $170.25
                                                      TX Valve Orifice No 1
                                                      SPAR.AEX.0462
                                                      $67.14
                                                        Castor No Brake
                                                        SPAR.AEX.0475
                                                        $19.47
                                                          Compressor
                                                          SPAR.AEX.0562
                                                          $914.46
