Product Brand

Airex

(Discontinued)

PRODUCT MODEL No

AXR.FDFSSQ.09

Product Serial Number

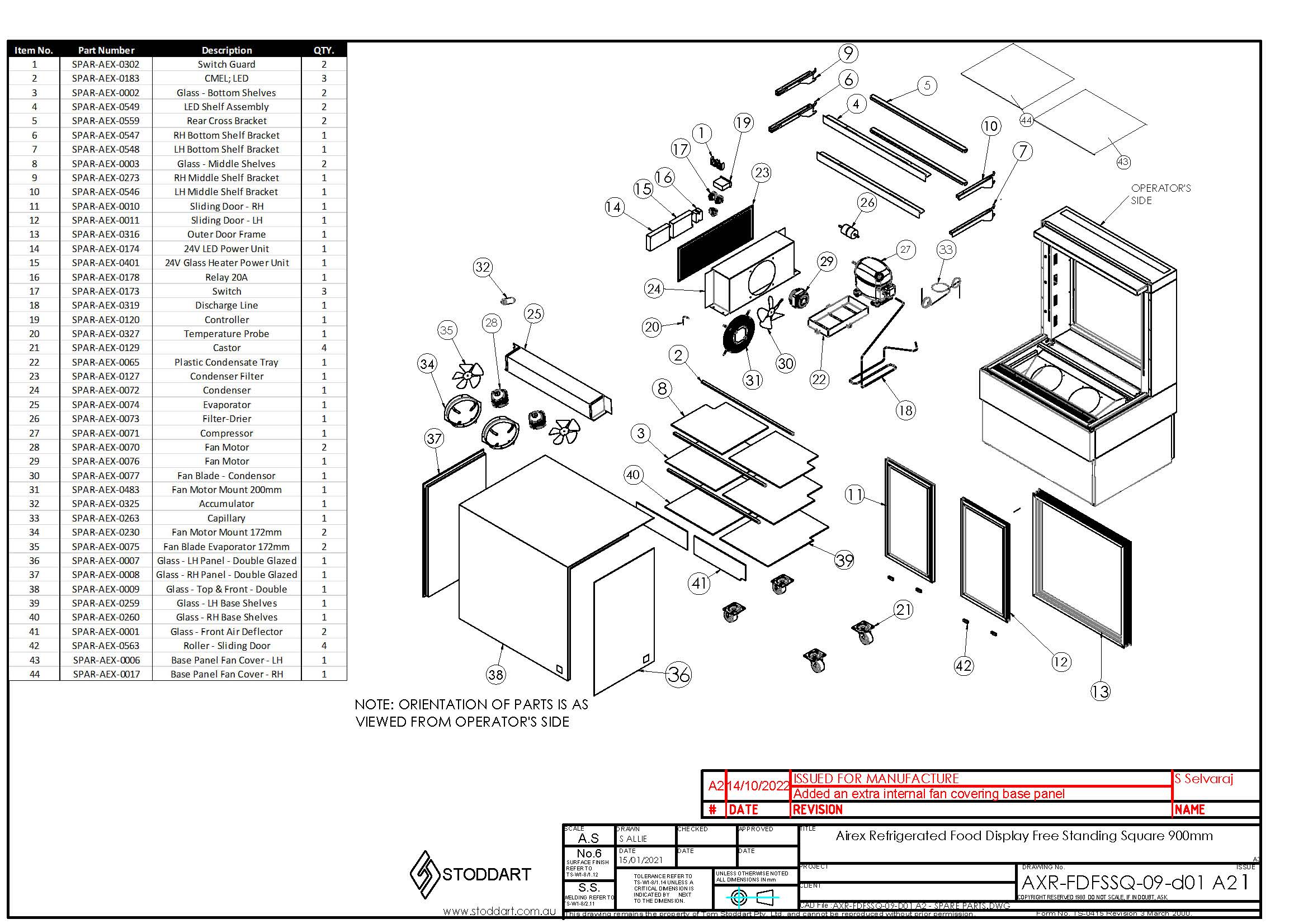

Spare Parts Drawing
axr.fdfssq.09_a2_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Compressor R134A
    SPAR.AEX.0071
    $773.40
      Dixell Controller
      SPAR.AEX.0120
      $97.29
        Air Filter Condensor
        SPAR.AEX.0127
        $17.01
          Fan Motor Condenser Fan motor
          SPAR.AEX.0076
          $97.29
            Fan Blade Φ200/28deg Condenser fan blade
            SPAR.AEX.0077
            $9.72
              Castors
              SPAR.AEX.0129
              $19.47
                Relay
                SPAR.AEX.0178
                $53.49
                  LED Light Strip Top shelves 720mm
                  SPAR.AEX.0183
                  $38.91
                    Plastic Condensate Tray
                    SPAR.AEX.0065
                    $24.33
                      Fan Motor Evaporator
                      SPAR.AEX.0070
                      $77.82
                        Condensor
                        SPAR.AEX.0072
                        $272.40
                          3/8" filter drier
                          SPAR.AEX.0073
                          $34.05
                            Evaporator
                            SPAR.AEX.0074
                            $272.40
                              Fan Blade 172/34 deg
                              SPAR.AEX.0075
                              $4
                                MeanWell Power supply LRS-100-24
                                SPAR.AEX.0174
                                $75.87
                                  Meanwell Power Supply LRS-150-24
                                  SPAR.AEX.0401
                                  $97.29
                                    Shelf Middle Glass
                                    SPAR.AEX.0003
                                    $44.76
                                      Glass Bottom Shelf 404mm x 448 5mm
                                      SPAR.AEX.0002
                                      $42.33
                                        Glass LH Panel Double Glaze 477mm x 774mm
                                        SPAR.AEX.0007
                                        $608.04
                                          Glass RH Panel Double Glazed 477mm x 774mm
                                          SPAR.AEX.0008
                                          $608.04
                                            Sliding Door RH 374mm x 664mm
                                            SPAR.AEX.0010
                                            $189.02
                                              Sliding Door LH 374mm x 664mm
                                              SPAR.AEX.0011
                                              $136.20
                                                Accumulator 3/8"
                                                SPAR.AEX.0325
                                                $32.10
                                                  Glass LH Base Shelves
                                                  SPAR.AEX.0259
                                                  $49.62
                                                    Glass RH Base Shelves
                                                    SPAR.AEX.0260
                                                    $49.62
                                                      Fan Motor Mount
                                                      SPAR.AEX.0230
                                                      $34.05
                                                        Bracket Assembly RH Middle Shelf
                                                        SPAR.AEX.0273
                                                        $77.82
                                                          Bracket Assembly LH Middle Shelf
                                                          SPAR.AEX.0546
                                                          $36
                                                            Bracket Assembly RH Botttom Shelf
                                                            SPAR.AEX.0547
                                                            $47.19
                                                              Bracket Assembly LH Bottom Shelf
                                                              SPAR.AEX.0548
                                                              $23.85
                                                                LED Shelf Assembly 900mm With Brackets
                                                                SPAR.AEX.0549
                                                                $72.96
                                                                  Rear Shelf Bracket 900mm
                                                                  SPAR.AEX.0559
                                                                  $35.01
                                                                    Glass Front Air Deflector
                                                                    SPAR.AEX.0001
                                                                    $22.86
                                                                      Fan Motor Mount 200mm
                                                                      SPAR.AEX.0483
                                                                      $34.05
                                                                        Roller Sliding Door Cold display
                                                                        SPAR.AEX.0563
                                                                        $9.72
