Product Brand

Airex

(Discontinued)

PRODUCT MODEL No

AXR.FDFSSQ.12

Product Serial Number

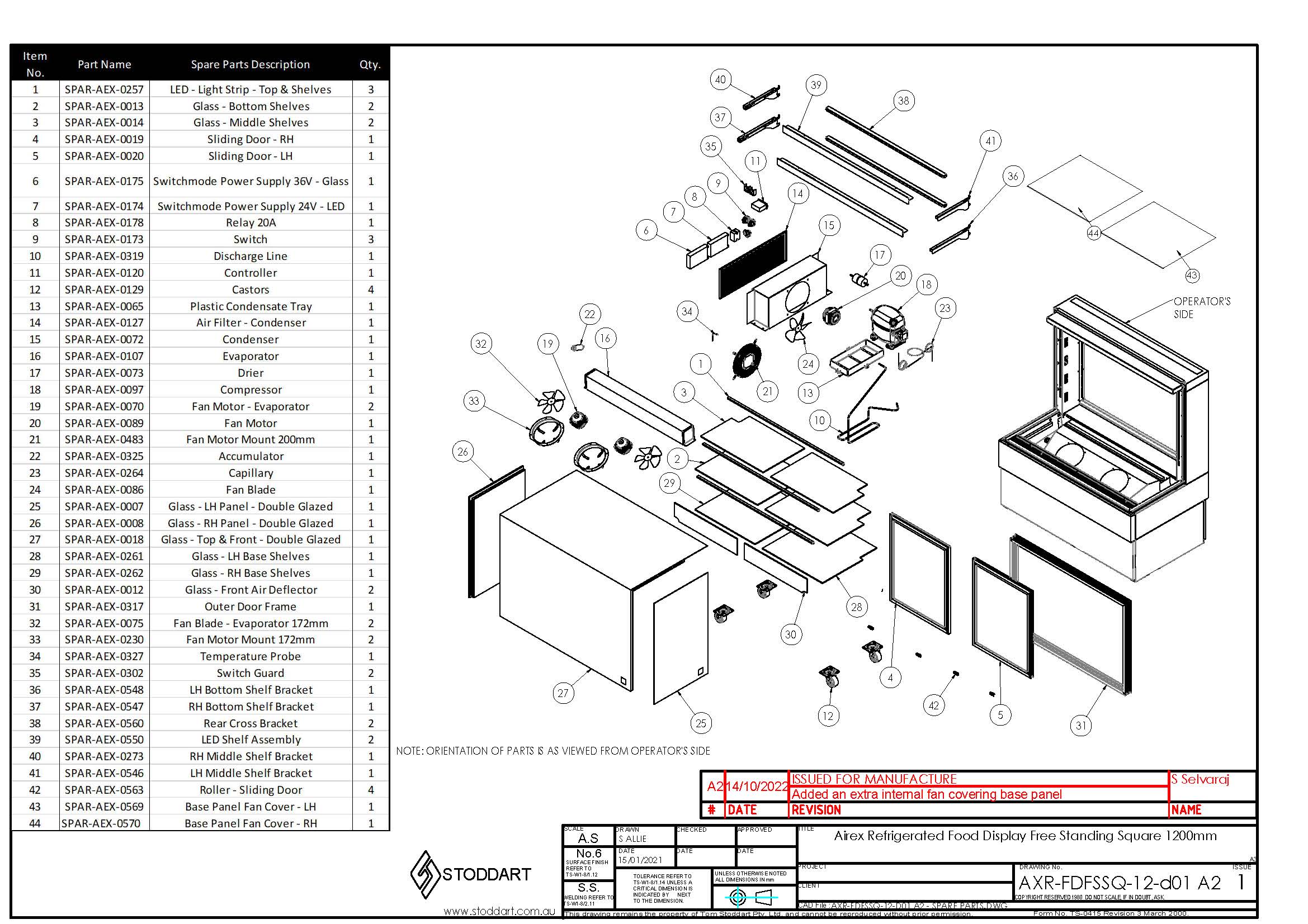

Spare Parts Drawing
axr.fdfssq.12_a2_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Dixell Controller
    SPAR.AEX.0120
    $97.29
      Air Filter Condensor
      SPAR.AEX.0127
      $17.01
        MeanWell Power supply
        SPAR.AEX.0175
        $150.78
          Fan Motor Condenser Fan motor
          SPAR.AEX.0089
          $218.88
            Castors
            SPAR.AEX.0129
            $19.47
              Relay
              SPAR.AEX.0178
              $53.49
                Plastic Condensate Tray
                SPAR.AEX.0065
                $24.33
                  Fan Motor Evaporator
                  SPAR.AEX.0070
                  $77.82
                    Condensor
                    SPAR.AEX.0072
                    $272.40
                      3/8" filter drier
                      SPAR.AEX.0073
                      $34.05
                        Fan Blade 172/34 deg
                        SPAR.AEX.0075
                        $4
                          Fan Blade Φ200/34deg
                          SPAR.AEX.0086
                          $9.24
                            Evaporator Cross Fin Coil
                            SPAR.AEX.0107
                            $277.26
                              MeanWell Power supply LRS-100-24
                              SPAR.AEX.0174
                              $75.87
                                Glass LH Panel Double Glaze 477mm x 774mm
                                SPAR.AEX.0007
                                $608.04
                                  Glass RH Panel Double Glazed 477mm x 774mm
                                  SPAR.AEX.0008
                                  $608.04
                                    Glass Middle Shelves 554mm x 368 5mm
                                    SPAR.AEX.0014
                                    $49.62
                                      Sliding Door RH 524mm x 664mm
                                      SPAR.AEX.0019
                                      $147.87
                                        Sliding Door LH 524mm x 664mm
                                        SPAR.AEX.0020
                                        $147.87
                                          Accumulator 3/8"
                                          SPAR.AEX.0325
                                          $32.10
                                            Base Shelf Glass RH
                                            SPAR.AEX.0261
                                            $49.62
                                              Base Shelf Glass LH
                                              SPAR.AEX.0262
                                              $49.62
                                                Fan Motor Mount
                                                SPAR.AEX.0230
                                                $34.05
                                                  Bracket Assembly RH Middle Shelf
                                                  SPAR.AEX.0273
                                                  $77.82
                                                    Bracket Assembly LH Middle Shelf
                                                    SPAR.AEX.0546
                                                    $36
                                                      Bracket Assembly RH Botttom Shelf
                                                      SPAR.AEX.0547
                                                      $47.19
                                                        Bracket Assembly LH Bottom Shelf
                                                        SPAR.AEX.0548
                                                        $23.85
                                                          LED Shelf Assembly 1200mm
                                                          SPAR.AEX.0550
                                                          $87.57
                                                            Rear Shelf Bracket 1200mm
                                                            SPAR.AEX.0560
                                                            $60.81
                                                              Glass Front Air Deflector 555mm x 125mm
                                                              SPAR.AEX.0012
                                                              $34.05
                                                                Fan Motor Mount 200mm
                                                                SPAR.AEX.0483
                                                                $34.05
                                                                  Roller Sliding Door Cold display
                                                                  SPAR.AEX.0563
                                                                  $9.72
                                                                    Door Frame Outer
                                                                    SPAR.AEX.0317
                                                                    $316.45
