Product Brand

Airex

(Discontinued)

PRODUCT MODEL No

AXR.FDFSSQ.15

Product Serial Number

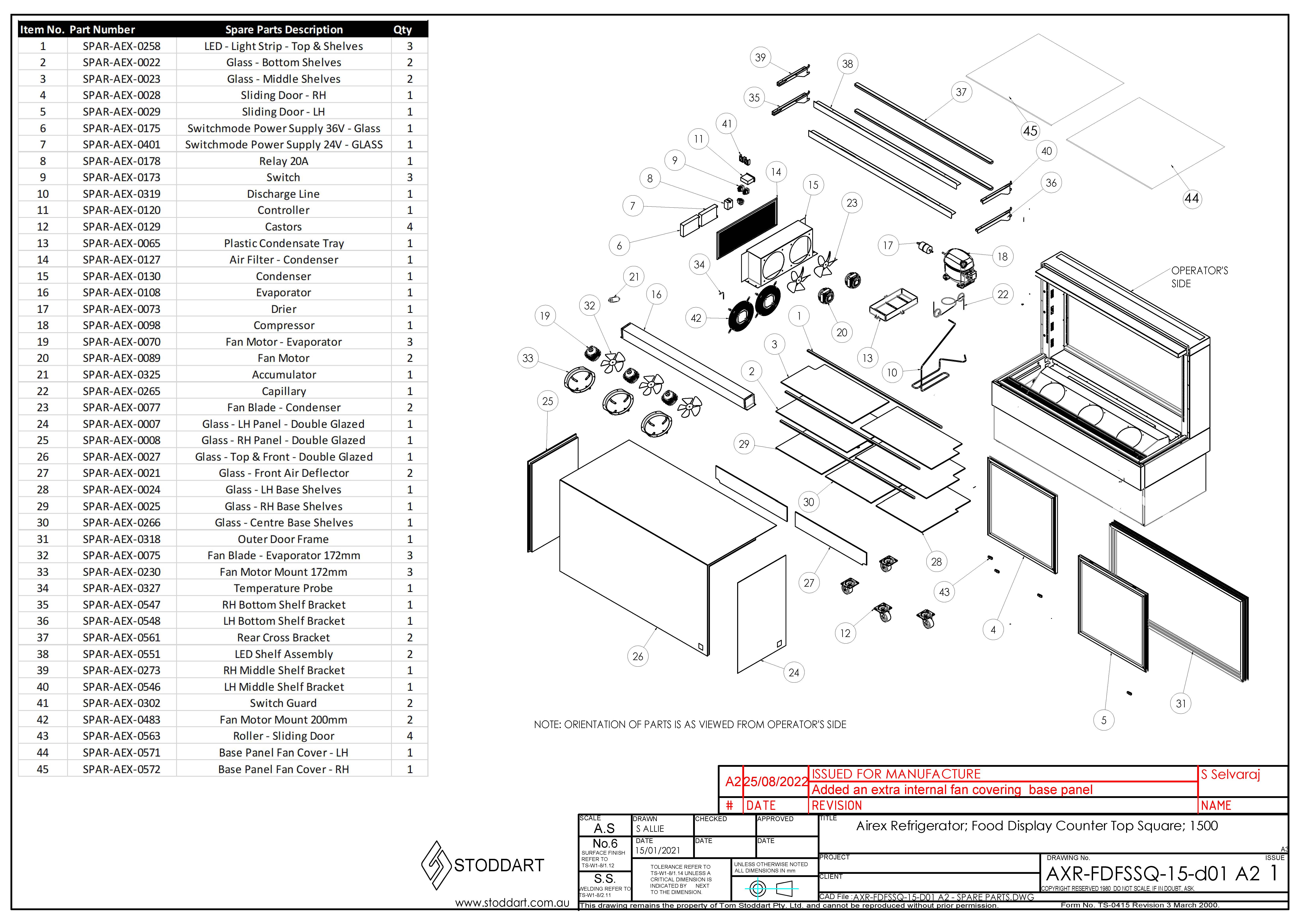

Spare Parts Drawing
axr.fdfssq.15_a2_drawing1_spare_parts axr.fdfssq.15_a2_drawing2_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Compressor R134a
    SPAR.AEX.0098
    $744.24
      Dixell Controller
      SPAR.AEX.0120
      $97.29
        Air Filter Condensor
        SPAR.AEX.0127
        $17.01
          MeanWell Power supply
          SPAR.AEX.0175
          $150.78
            Fan Blade Φ200/28deg Condenser fan blade
            SPAR.AEX.0077
            $9.72
              Fan Motor Condenser Fan motor
              SPAR.AEX.0089
              $218.88
                Castors
                SPAR.AEX.0129
                $19.47
                  Relay
                  SPAR.AEX.0178
                  $53.49
                    Glass LH Base Shelves 454 5mm x 510mm
                    SPAR.AEX.0024
                    $60.81
                      Plastic Condensate Tray
                      SPAR.AEX.0065
                      $24.33
                        Fan Motor Evaporator
                        SPAR.AEX.0070
                        $77.82
                          3/8" filter drier
                          SPAR.AEX.0073
                          $34.05
                            Fan Blade 172/34 deg
                            SPAR.AEX.0075
                            $4
                              Evaporator Cross Fin Coil
                              SPAR.AEX.0108
                              $277.26
                                Meanwell Power Supply LRS-150-24
                                SPAR.AEX.0401
                                $97.29
                                  Glass LH Panel Double Glaze 477mm x 774mm
                                  SPAR.AEX.0007
                                  $608.04
                                    Glass RH Panel Double Glazed 477mm x 774mm
                                    SPAR.AEX.0008
                                    $608.04
                                      Glass Middle Shelves 704mm x 368 5mm
                                      SPAR.AEX.0023
                                      $56.91
                                        Glass RH Base Shelves 454 5mm x 510mm
                                        SPAR.AEX.0025
                                        $61.75
                                          Glass Top Front Double Glazed
                                          SPAR.AEX.0027
                                          $1,844.15
                                            Sliding Door RH 674mm x 664mm
                                            SPAR.AEX.0028
                                            $183.64
                                              Sliding Door LH 674mm x 664mm
                                              SPAR.AEX.0029
                                              $179.97
                                                Accumulator 3/8"
                                                SPAR.AEX.0325
                                                $32.10
                                                  Base Shelf Glass Centre
                                                  SPAR.AEX.0266
                                                  $48.15
                                                    Condenser
                                                    SPAR.AEX.0130
                                                    $340.50
                                                      Fan Motor Mount
                                                      SPAR.AEX.0230
                                                      $34.05
                                                        Bracket Assembly RH Middle Shelf
                                                        SPAR.AEX.0273
                                                        $77.82
                                                          Bracket Assembly LH Middle Shelf
                                                          SPAR.AEX.0546
                                                          $36
                                                            Bracket Assembly RH Botttom Shelf
                                                            SPAR.AEX.0547
                                                            $47.19
                                                              Bracket Assembly LH Bottom Shelf
                                                              SPAR.AEX.0548
                                                              $23.85
                                                                LED Shelf Assembly 1500mm
                                                                SPAR.AEX.0551
                                                                $107.01
                                                                  Rear Shelf Bracket 1500mm
                                                                  SPAR.AEX.0561
                                                                  $71.01
                                                                    Fan Motor Mount 200mm
                                                                    SPAR.AEX.0483
                                                                    $34.05
                                                                      Roller Sliding Door Cold display
                                                                      SPAR.AEX.0563
                                                                      $9.72

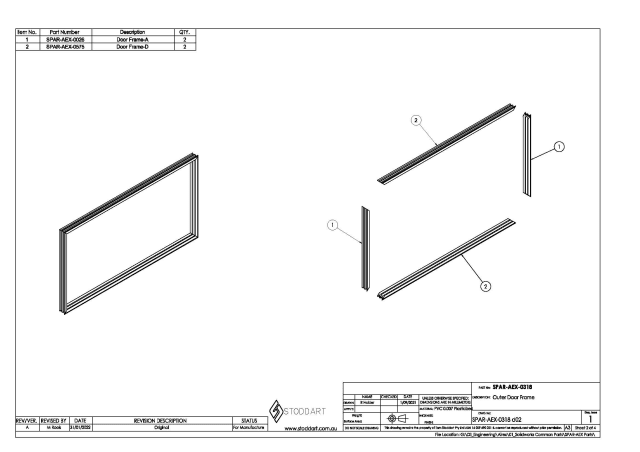

                                                                        Door Frame Outer
                                                                        SPAR.AEX.0318
                                                                        $311
