Product Brand

Airex

PRODUCT MODEL No

AXR.SW.1740

Product Serial Number

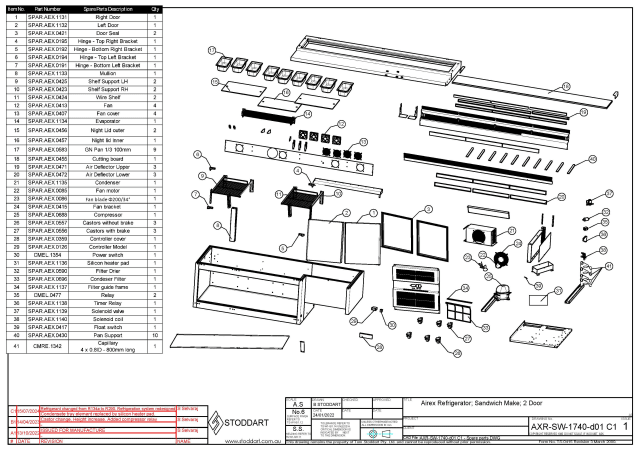

Spare Parts Drawing
axr.sw.1740_c1_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Relay Single Contact 30A 250 Volt
    CMEL.0477
    $32.76
      Dixell Controller
      SPAR.AEX.0126
      $160.53
        Fan Motor Condenser
        SPAR.AEX.0085
        $71.01
          Fan Blade Φ200/34deg
          SPAR.AEX.0086
          $9.24
            Hinge Bottom Left Bracket
            SPAR.AEX.0191
            $19.47
              Hinge Bottom Right Bracket
              SPAR.AEX.0192
              $19.47
                Hinge Top Left Bracket
                SPAR.AEX.0194
                $19.47
                  Hinge Top Right Bracket
                  SPAR.AEX.0195
                  $19.47
                    Controller Cover
                    SPAR.AEX.0359
                    $21.90
                      Fan Bracket 200mm diameter
                      SPAR.AEX.0415
                      $11.19
                        Fan Cover
                        SPAR.AEX.0407
                        $7.29
                          Fan Seada
                          SPAR.AEX.0413
                          $58.38
                            Door Gasket
                            SPAR.AEX.0421
                            $22.38
                              Castor with Brake
                              SPAR.AEX.0556
                              $58.38
                                Castor without Brake
                                SPAR.AEX.0557
                                $58.38
                                  Cutting Board
                                  SPAR.AEX.0455
                                  $510
                                    Night Lid Outer
                                    SPAR.AEX.0456
                                    $111.87
                                      Night Lid Inner
                                      SPAR.AEX.0457
                                      $111.87
                                        Condenser Filter
                                        SPAR.AEX.0696
                                        $20.43
                                          Filter Guide Frame
                                          SPAR.AEX.1137
                                          $4
