Product Brand

Airex

PRODUCT MODEL No

AXR.URGN.1G

Product Serial Number

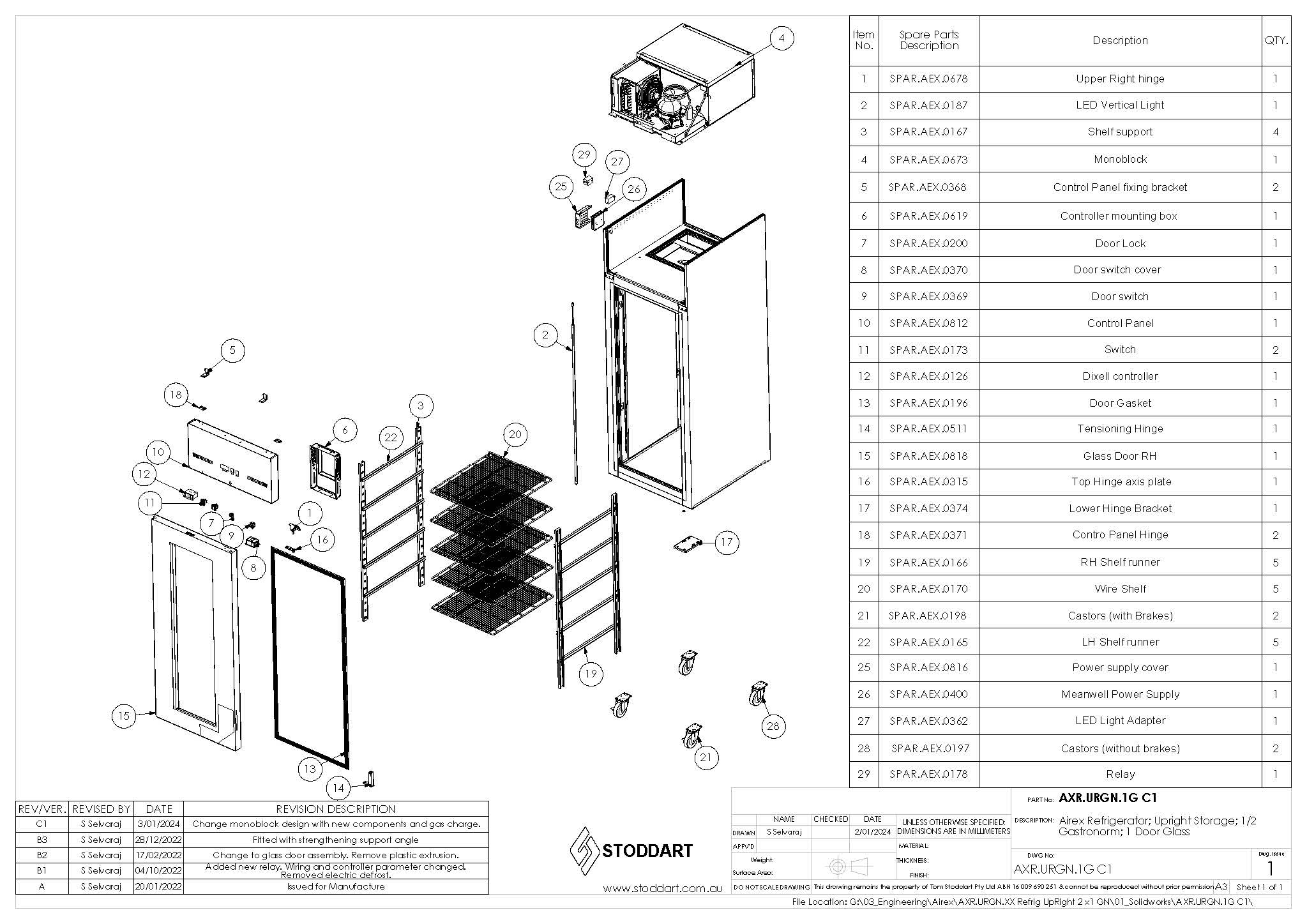

Spare Parts Drawing
axr.urgn.1g_c1_drawing_spare_parts axr.urgn.1g_c1_monoblock_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Dixell Controller
    SPAR.AEX.0126
    $160.53
      Relay
      SPAR.AEX.0178
      $53.49
        Lock Door
        SPAR.AEX.0200
        $21.90
          1/ 4" Filter Drier
          SPAR.AEX.0078
          $14.58
            Fan Motor SEADA 2600rpm
            SPAR.AEX.0082
            $165.39
              Fan Motor Condenser
              SPAR.AEX.0085
              $71.01
                Fan Blade Φ200/34deg
                SPAR.AEX.0086
                $9.24
                  Runner Shelf LH
                  SPAR.AEX.0165
                  $34.05
                    Runner Shelf RH
                    SPAR.AEX.0166
                    $34.05
                      Shelf Wire
                      SPAR.AEX.0170
                      $68.10
                        Castor No Brake
                        SPAR.AEX.0197
                        $58.38
                          Castor With Brake
                          SPAR.AEX.0198
                          $58.38
                            Lower Hinge Bracket
                            SPAR.AEX.0374
                            $20.91
                              Meanwell Power Supply LRS-75-24
                              SPAR.AEX.0400
                              $85.11
                                Control Panel Hinge
                                SPAR.AEX.0371
                                $7.77
                                  Fan Bracket 200mm diameter
                                  SPAR.AEX.0415
                                  $11.19
                                    Power Supply LED Driver
                                    SPAR.AEX.0362
                                    $34.05
                                      Door Switch
                                      SPAR.AEX.0369
                                      $4.38
                                        Door Gasket
                                        SPAR.AEX.0196
                                        $27.24
                                          Top PVC Hinge Axis Plate
                                          SPAR.AEX.0315
                                          $4.86
                                            Tensioning Hinge
                                            SPAR.AEX.0511
                                            $26.76
                                              Controller Mounting Box
                                              SPAR.AEX.0619
                                              $7.77
                                                Monoblock Refrigeration Unit
                                                SPAR.AEX.0673
                                                $1,546.98
                                                  Evaporator
                                                  SPAR.AEX.0686
                                                  $345.36
