Product Brand

Airex

(Discontinued)

PRODUCT MODEL No

AXF.UCGN.2

Product Serial Number

Spare Parts Drawing

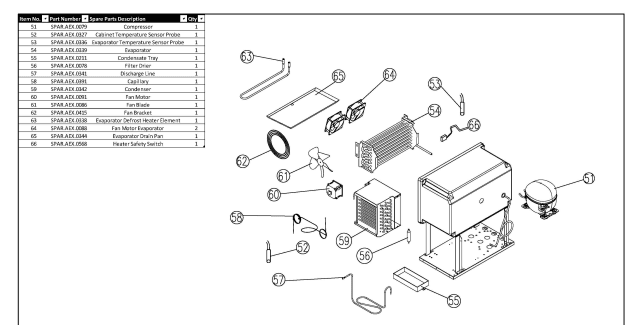

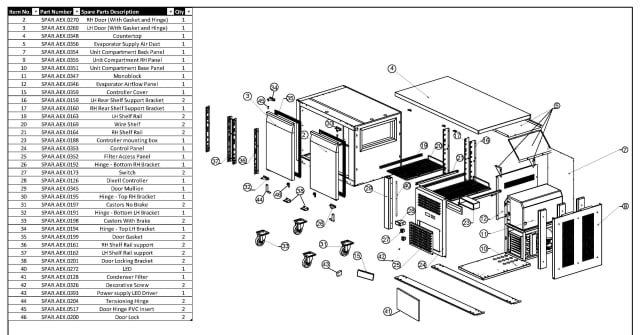

axf.ucgn.2_a2_spare_parts axf.ucgn.2_a2_monoblock_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Compressor Secop NLE12.6CNL
    SPAR.AEX.0079
    $924.21
      Fan Motor Evaporator Xinruilian
      SPAR.AEX.0088
      $97.29
        Dixell Controller
        SPAR.AEX.0126
        $160.53
          Air Filter Condenser
          SPAR.AEX.0128
          $9.72
            Lock Door
            SPAR.AEX.0200
            $21.90
              1/ 4" Filter Drier
              SPAR.AEX.0078
              $14.58
                Fan Blade Φ200/34deg
                SPAR.AEX.0086
                $9.24
                  Rails Shelf LH
                  SPAR.AEX.0163
                  $19.47
                    Rails Shelf RH
                    SPAR.AEX.0164
                    $19.47
                      Condensate Tray
                      SPAR.AEX.0211
                      $27.24
                        Shelf Wire
                        SPAR.AEX.0169
                        $43.77
                          Hinge Bottom Left Bracket
                          SPAR.AEX.0191
                          $19.47
                            Hinge Bottom Right Bracket
                            SPAR.AEX.0192
                            $19.47
                              LED
                              SPAR.AEX.0272
                              $92.43
                                Hinge Top Left Bracket
                                SPAR.AEX.0194
                                $19.47
                                  Hinge Top Right Bracket
                                  SPAR.AEX.0195
                                  $19.47
                                    Castor No Brake
                                    SPAR.AEX.0197
                                    $58.38
                                      Castor With Brake
                                      SPAR.AEX.0198
                                      $58.38
                                        Door Gasket 578x416mm
                                        SPAR.AEX.0199
                                        $60.81
                                          Controller Cover
                                          SPAR.AEX.0359
                                          $21.90
                                            Door hinge PVC insert Top Hinge
                                            SPAR.AEX.0517
                                            $4
                                              Screw Decorative
                                              SPAR.AEX.0326
                                              $6.81
                                                Fan Bracket 200mm diameter
                                                SPAR.AEX.0415
                                                $11.19
                                                  LED Driver Power supply
                                                  SPAR.AEX.0393
                                                  $52.53
                                                    Tensioning Hinge
                                                    SPAR.AEX.0204
                                                    $29.19
                                                      Evaporator Defrost Heater Element
                                                      SPAR.AEX.0338
                                                      $65.97
                                                        Heater Safety Switch
                                                        SPAR.AEX.0568
                                                        $11.19
