Product Brand

Airex

(Discontinued)

PRODUCT MODEL No

AXR.URGN.2G

Product Serial Number

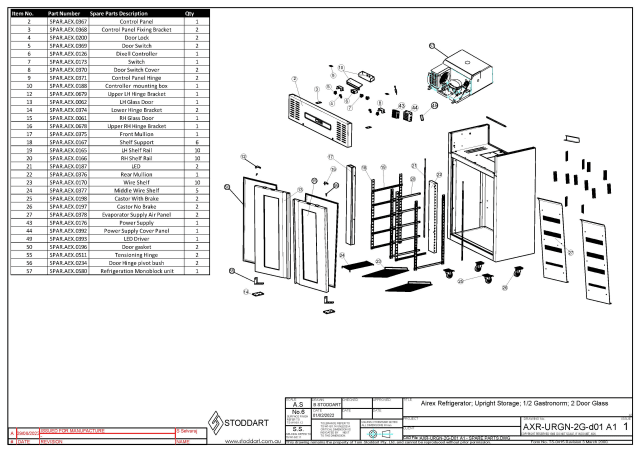

Spare Parts Drawing

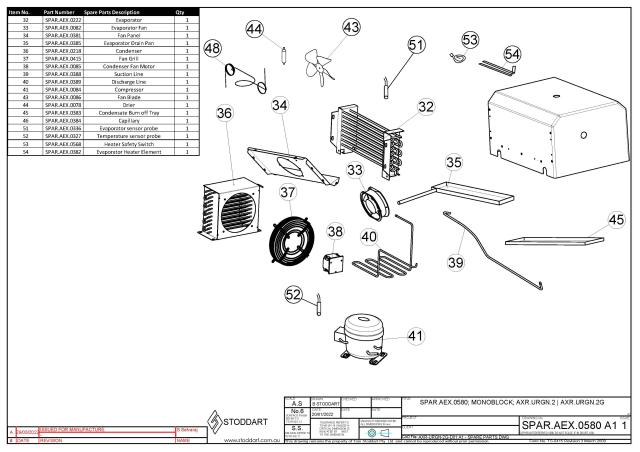

axr.urgn.2g_a1_drawing_spare_parts axr.urgn.2g_a1_monoblock_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Embraco Compressor EMTE6181U
    SPAR.AEX.0084
    $505.89
      Switchmode Power Supply 12V HDR-100-12
      SPAR.AEX.0176
      $218.88
        Dixell Controller
        SPAR.AEX.0126
        $160.53
          Lock Door
          SPAR.AEX.0200
          $21.90
            1/ 4" Filter Drier
            SPAR.AEX.0078
            $14.58
              Fan Motor SEADA 2600rpm
              SPAR.AEX.0082
              $165.39
                Fan Motor Condenser
                SPAR.AEX.0085
                $71.01
                  Fan Blade Φ200/34deg
                  SPAR.AEX.0086
                  $9.24
                    Runner Shelf LH
                    SPAR.AEX.0165
                    $34.05
                      Runner Shelf RH
                      SPAR.AEX.0166
                      $34.05
                        Shelf Wire
                        SPAR.AEX.0170
                        $68.10
                          Castor No Brake
                          SPAR.AEX.0197
                          $58.38
                            Castor With Brake
                            SPAR.AEX.0198
                            $58.38
                              Lower Hinge Bracket
                              SPAR.AEX.0374
                              $20.91
                                Control Panel Hinge
                                SPAR.AEX.0371
                                $7.77
                                  Glass Door RH
                                  SPAR.AEX.0061
                                  $769.02
                                    Glass Door LH
                                    SPAR.AEX.0062
                                    $769.02
                                      Fan Bracket 200mm diameter
                                      SPAR.AEX.0415
                                      $11.19
                                        Door Switch
                                        SPAR.AEX.0369
                                        $4.38
                                          Front Mullion
                                          SPAR.AEX.0375
                                          $142.02
                                            Wire Shelf Middle
                                            SPAR.AEX.0377
                                            $17.52
                                              LED Driver Power supply
                                              SPAR.AEX.0393
                                              $52.53
                                                Door Gasket
                                                SPAR.AEX.0196
                                                $27.24
                                                  Door hinge pivot Bush
                                                  SPAR.AEX.0234
                                                  $4.86
                                                    Tensioning Hinge
                                                    SPAR.AEX.0511
                                                    $26.76
                                                      Heater Safety Switch
                                                      SPAR.AEX.0568
                                                      $11.19
