Product Brand

Aristarco

PRODUCT MODEL No

AH800ees

Product Serial Number

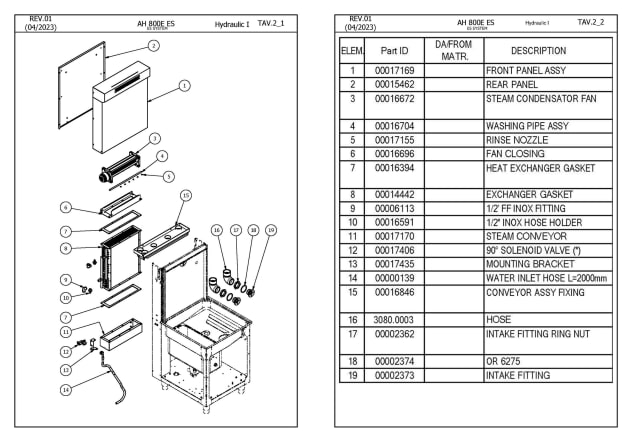

Spare Parts Drawing
spari.ah800ees_a1_drawing2_spare_parts spari.ah800ees_a1_electrical1_spare_parts spari.ah800ees_a1_electrical2_spare_parts spari.ah800ees_a1_electrical4_spare_parts spari.ah800ees_a1_hydraulic2_spare_parts spari.ah800ees_a2_hydraulic3_spare_parts spari.ah800ees_a1_mechanical1_spare_parts spari.ah800ees_a1_mechanical2_spare_parts spari.ah800ees_a1_mechanical3_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    O ring 128
    25
    $4
      O ring for boiler flange
      57
      $6.93
        Water inlet hose 2000mm
        139
        $37.50
          Clamp 19 6x20 6
          391
          $4
            Single solen valve 90 230v
            394
            $44.43
              O ring 112
              697
              $4
                O ring 147
                1633
                $4
                  Power cable 5G 4
                  1679
                  $208.26
                    Clamp 9 8-10 4 zn
                    2152
                    $4
                      Washing shaft pin
                      2153
                      $41.64
                        Water outlet hose 2000mm
                        2188
                        $69.42
                          O ring 6275
                          2374
                          $4
                            Rinse arm plug
                            2502
                            $4
                              O ring 106
                              2531
                              $4
                                Traction spring
                                2543
                                $83.31
                                  Washing arm cap
                                  2650
                                  $5.55
                                    Exhaust cockpit gasket
                                    204
                                    $4
                                      Clamp 14 4x15 1
                                      388
                                      $4
                                        Spring
                                        2654
                                        $4
                                          Filter 0.47 uf
                                          2779
                                          $27.78
                                            Fitting
                                            2927
                                            $11.10
                                              Air trap junction
                                              2933
                                              $6.12
                                                O ring 4081
                                                2934
                                                $4
                                                  Hose
                                                  3072
                                                  $33.33
                                                    Rubber gasket
                                                    3086
                                                    $8.34
                                                      Nut m12x1
                                                      3265
                                                      $19.44
                                                        Air trap
                                                        3535
                                                        $16.65
                                                          Nut for air trap
                                                          3536
                                                          $6.93
                                                            Manual reset safety thermostat
                                                            4066
                                                            $19.44
                                                              Four way distributor
                                                              4121
                                                              $11.10
                                                                Contactor 230v 50hz bf09 4 2kw
                                                                4375
                                                                $138.84
                                                                  Washer
                                                                  4671
                                                                  $12.51
                                                                    Manual reset safety thermostat
                                                                    4913
                                                                    $19.44
                                                                      Deterg dispens filter assy
                                                                      5069
                                                                      $63.87
                                                                        90 m13x1 plastic connection
                                                                        10620
                                                                        $24.99
                                                                          Gasket for washing flange
                                                                          10955
                                                                          $6.93
                                                                            Adjustable feet
                                                                            12041
                                                                            $69.42
                                                                              Micro switch
                                                                              12685
                                                                              $83.31
                                                                                Seal kit
                                                                                14564
                                                                                $61.08
                                                                                  Element resistance 230v 2 8kw
                                                                                  14795
                                                                                  $152.73
                                                                                    Element 230v 9kw
                                                                                    14802
                                                                                    $444.30
                                                                                      Outlet pump hose
                                                                                      15201
                                                                                      $166.62
                                                                                        Washer
                                                                                        14371
                                                                                        $13.89
                                                                                          Exchanger gasket
                                                                                          14442
                                                                                          $2,093.75
                                                                                            Inlet pump hose
                                                                                            15203
                                                                                            $144.39
                                                                                              Wash pump complete
                                                                                              15237
                                                                                              $777.51
                                                                                                O ring 4500
                                                                                                15315
                                                                                                $4
                                                                                                  Rinse pump 230v 50hz
                                                                                                  15422
                                                                                                  $721.98
                                                                                                    Element 230v 1.5kw
                                                                                                    15608
                                                                                                    $152.73
                                                                                                      12l boiler assy
                                                                                                      15620
                                                                                                      $888.60
                                                                                                        Oring air break
                                                                                                        15777
                                                                                                        $4
                                                                                                          Planar gasket air break
                                                                                                          15778
                                                                                                          $4
                                                                                                            Threaded ring for air break
                                                                                                            15779
                                                                                                            $10.56
                                                                                                              Boiler insulation band
                                                                                                              15910
                                                                                                              $61.08
                                                                                                                Air break
                                                                                                                15941
                                                                                                                $111.09
                                                                                                                  Magnetic unit
                                                                                                                  16006
                                                                                                                  $33.33
                                                                                                                    Pressure switch 28/12
                                                                                                                    16403
                                                                                                                    $77.76
                                                                                                                      Inlet reg 8 l min
                                                                                                                      16405
                                                                                                                      $7.77
                                                                                                                        Overflow gasket
                                                                                                                        17178
                                                                                                                        $9.72
                                                                                                                          Resistance 230v 6kw
                                                                                                                          16572
                                                                                                                          $388.77
                                                                                                                            Steam condensator fan
                                                                                                                            16672
                                                                                                                            $777.51
                                                                                                                              Gasket
                                                                                                                              16747
                                                                                                                              $12.51
                                                                                                                                Impeller for 50hz pump
                                                                                                                                16748
                                                                                                                                $83.31
                                                                                                                                  Internal detergent dispenser hose
                                                                                                                                  17128
                                                                                                                                  $105.51
                                                                                                                                    Rinse nozzle
                                                                                                                                    17155
                                                                                                                                    $8.34
                                                                                                                                      Filter of filt group
                                                                                                                                      17156
                                                                                                                                      $55.53
                                                                                                                                        Drain
                                                                                                                                        17159
                                                                                                                                        $33.33
                                                                                                                                          90 solenoid valve
                                                                                                                                          17406
                                                                                                                                          $83.31
                                                                                                                                            Drain hose 2500mm
                                                                                                                                            271500002
                                                                                                                                            $58.32
                                                                                                                                              Capacitor 12.5uf
                                                                                                                                              2080.0001
                                                                                                                                              $97.20
                                                                                                                                                Hose
                                                                                                                                                3080.0003
                                                                                                                                                $116.64
                                                                                                                                                  Ntc probe amp module for boiler tank
                                                                                                                                                  4011.0002
                                                                                                                                                  $77.76
                                                                                                                                                    Contactor bf26 230 45
                                                                                                                                                    4016.0001
                                                                                                                                                    $319.35
                                                                                                                                                      2 relays electronic cardboard
                                                                                                                                                      4030.0002
                                                                                                                                                      $624.78
                                                                                                                                                        Additional cardboard
                                                                                                                                                        4030.0003
                                                                                                                                                        $138.84
                                                                                                                                                          6 keys display
                                                                                                                                                          4035.0001
                                                                                                                                                          $319.35
                                                                                                                                                            10-wires flat cable
                                                                                                                                                            4040.0001
                                                                                                                                                            $41.64
                                                                                                                                                              Internal rinse aid disp hose with valve
                                                                                                                                                              8395.0012
                                                                                                                                                              $102.75
                                                                                                                                                                Cover assy
                                                                                                                                                                8395.0013
                                                                                                                                                                $24.99
                                                                                                                                                                  Rinse aid dispenser roll holder assy
                                                                                                                                                                  8395.0014
                                                                                                                                                                  $69.42
                                                                                                                                                                    Washing arm washer
                                                                                                                                                                    1173
                                                                                                                                                                    $4
                                                                                                                                                                      Connector
                                                                                                                                                                      1954
                                                                                                                                                                      $44.43
                                                                                                                                                                        PTFE ring
                                                                                                                                                                        2808
                                                                                                                                                                        $4.17
                                                                                                                                                                          Stainless steel knurled screw
                                                                                                                                                                          1133
                                                                                                                                                                          $27.78
                                                                                                                                                                            Epdm hose
                                                                                                                                                                            3040.0002
                                                                                                                                                                            $8.34
                                                                                                                                                                              Drain hose support
                                                                                                                                                                              16395
                                                                                                                                                                              $13.89
                                                                                                                                                                                Bushing for hood lift handle
                                                                                                                                                                                14616
                                                                                                                                                                                $33.33
                                                                                                                                                                                  Spring plate lock
                                                                                                                                                                                  3056.0038
                                                                                                                                                                                  $13.89
                                                                                                                                                                                    Spring plate
                                                                                                                                                                                    3051.0031
                                                                                                                                                                                    $41.64
                                                                                                                                                                                      Handle fixing plate
                                                                                                                                                                                      3002.0054
                                                                                                                                                                                      $27.78
                                                                                                                                                                                        Handle support
                                                                                                                                                                                        14390
                                                                                                                                                                                        $27.78
                                                                                                                                                                                          Double skinned hood assy opt
                                                                                                                                                                                          8302.002
                                                                                                                                                                                          $3,554.38
                                                                                                                                                                                            Rail guide
                                                                                                                                                                                            14398
                                                                                                                                                                                            $111.09
                                                                                                                                                                                              Hood lift handle
                                                                                                                                                                                              16878
                                                                                                                                                                                              $499.83
                                                                                                                                                                                                Spring roller
                                                                                                                                                                                                2576
                                                                                                                                                                                                $16.65
                                                                                                                                                                                                  Sleeve bearing
                                                                                                                                                                                                  2574
                                                                                                                                                                                                  $4.17
                                                                                                                                                                                                    Hook m8x120
                                                                                                                                                                                                    6558
                                                                                                                                                                                                    $19.44
                                                                                                                                                                                                      90 elbow
                                                                                                                                                                                                      3065.0009
                                                                                                                                                                                                      $99.96
                                                                                                                                                                                                        Internal plate
                                                                                                                                                                                                        3051.0032
                                                                                                                                                                                                        $15.27
                                                                                                                                                                                                          Side panel rh-lh
                                                                                                                                                                                                          3011.0005
                                                                                                                                                                                                          $249.93
                                                                                                                                                                                                            Tank cover band
                                                                                                                                                                                                            3009.0001
                                                                                                                                                                                                            $305.46
                                                                                                                                                                                                              Rear panel
                                                                                                                                                                                                              3012.0007
                                                                                                                                                                                                              $305.46
                                                                                                                                                                                                                Roof panel rh-lh
                                                                                                                                                                                                                3011.0006
                                                                                                                                                                                                                $166.62
                                                                                                                                                                                                                  Basket frame assy
                                                                                                                                                                                                                  15360
                                                                                                                                                                                                                  $472.08
                                                                                                                                                                                                                    Tank filter
                                                                                                                                                                                                                    14801
                                                                                                                                                                                                                    $333.21
                                                                                                                                                                                                                      Cap 3/4 pp
                                                                                                                                                                                                                      2006.0002
                                                                                                                                                                                                                      $24.99
                                                                                                                                                                                                                        Threaded ring for cap 3/4 pp
                                                                                                                                                                                                                        2019.0002
                                                                                                                                                                                                                        $16.65
                                                                                                                                                                                                                          M10 brass nut
                                                                                                                                                                                                                          267
                                                                                                                                                                                                                          $4.17
                                                                                                                                                                                                                            Cable guide
                                                                                                                                                                                                                            14489
                                                                                                                                                                                                                            $5.55
                                                                                                                                                                                                                              Detergent dispenser support
                                                                                                                                                                                                                              14349
                                                                                                                                                                                                                              $55.53
                                                                                                                                                                                                                                Washer
                                                                                                                                                                                                                                14376
                                                                                                                                                                                                                                $77.76
                                                                                                                                                                                                                                  Drain screw
                                                                                                                                                                                                                                  203
                                                                                                                                                                                                                                  $6.93
                                                                                                                                                                                                                                    Threaded ring
                                                                                                                                                                                                                                    17157
                                                                                                                                                                                                                                    $55.53
                                                                                                                                                                                                                                      Exhaust cockpit
                                                                                                                                                                                                                                      17158
                                                                                                                                                                                                                                      $74.97
                                                                                                                                                                                                                                        Overflow
                                                                                                                                                                                                                                        17160
                                                                                                                                                                                                                                        $49.98
                                                                                                                                                                                                                                          Washing pump supp
                                                                                                                                                                                                                                          15199
                                                                                                                                                                                                                                          $55.53
                                                                                                                                                                                                                                            Protection
                                                                                                                                                                                                                                            16028
                                                                                                                                                                                                                                            $69.42
                                                                                                                                                                                                                                              Washing pipe
                                                                                                                                                                                                                                              14732
                                                                                                                                                                                                                                              $97.20
                                                                                                                                                                                                                                                Washing pipe assy
                                                                                                                                                                                                                                                14379
                                                                                                                                                                                                                                                $305.46
                                                                                                                                                                                                                                                  Washing arm
                                                                                                                                                                                                                                                  8304.0001
                                                                                                                                                                                                                                                  $360.99
                                                                                                                                                                                                                                                    Fixing part
                                                                                                                                                                                                                                                    10740
                                                                                                                                                                                                                                                    $22.23
                                                                                                                                                                                                                                                      Double wash distributor
                                                                                                                                                                                                                                                      2149
                                                                                                                                                                                                                                                      $13.89
                                                                                                                                                                                                                                                        Drain pump support
                                                                                                                                                                                                                                                        14606
                                                                                                                                                                                                                                                        $33.33
                                                                                                                                                                                                                                                          Front panel
                                                                                                                                                                                                                                                          3013.0014
                                                                                                                                                                                                                                                          $305.46
                                                                                                                                                                                                                                                            Adhesive label
                                                                                                                                                                                                                                                            3501.0064
                                                                                                                                                                                                                                                            $111.09
                                                                                                                                                                                                                                                              Pump case
                                                                                                                                                                                                                                                              16750
                                                                                                                                                                                                                                                              $97.20
                                                                                                                                                                                                                                                                Fan closing
                                                                                                                                                                                                                                                                16696
                                                                                                                                                                                                                                                                $194.37
                                                                                                                                                                                                                                                                  Intake fitting ring nut
                                                                                                                                                                                                                                                                  2362
                                                                                                                                                                                                                                                                  $8.34
                                                                                                                                                                                                                                                                    Front panel assy
                                                                                                                                                                                                                                                                    17169
                                                                                                                                                                                                                                                                    $624.78
                                                                                                                                                                                                                                                                      Rear panel
                                                                                                                                                                                                                                                                      15462
                                                                                                                                                                                                                                                                      $277.68
                                                                                                                                                                                                                                                                        Heat exchanger gasket
                                                                                                                                                                                                                                                                        16394
                                                                                                                                                                                                                                                                        $41.64
                                                                                                                                                                                                                                                                          1/2" ff inox fitting
                                                                                                                                                                                                                                                                          6113
                                                                                                                                                                                                                                                                          $111.09
                                                                                                                                                                                                                                                                            1/2" inox hose holder
                                                                                                                                                                                                                                                                            16591
                                                                                                                                                                                                                                                                            $99.96
                                                                                                                                                                                                                                                                              Steam conveyor
                                                                                                                                                                                                                                                                              17170
                                                                                                                                                                                                                                                                              $305.46
                                                                                                                                                                                                                                                                                Mounting bracket
                                                                                                                                                                                                                                                                                17435
                                                                                                                                                                                                                                                                                $24.99
                                                                                                                                                                                                                                                                                  Conveyor assy fixing
                                                                                                                                                                                                                                                                                  16846
                                                                                                                                                                                                                                                                                  $610.92
                                                                                                                                                                                                                                                                                    Intake fitting
                                                                                                                                                                                                                                                                                    2373
                                                                                                                                                                                                                                                                                    $33.33
                                                                                                                                                                                                                                                                                      Guide for hood lift handle
                                                                                                                                                                                                                                                                                      14789
                                                                                                                                                                                                                                                                                      $38.88
                                                                                                                                                                                                                                                                                        Washing pipe assy
                                                                                                                                                                                                                                                                                        16704
                                                                                                                                                                                                                                                                                        $138.84
                                                                                                                                                                                                                                                                                          Drain pump 90 230v 50hz
                                                                                                                                                                                                                                                                                          6006.0004
                                                                                                                                                                                                                                                                                          $194.37
                                                                                                                                                                                                                                                                                            Rear sup washing pipe assy
                                                                                                                                                                                                                                                                                            10953
                                                                                                                                                                                                                                                                                            $180.51

                                                                                                                                                                                                                                                                                            Consumables

                                                                                                                                                                                                                                                                                              Aristarco Flat Basket Accessory
                                                                                                                                                                                                                                                                                              WABC.5050
                                                                                                                                                                                                                                                                                              $35
                                                                                                                                                                                                                                                                                                Aristarco 64 Peg Plate Rack Accessory
                                                                                                                                                                                                                                                                                                WABD.5050.64
                                                                                                                                                                                                                                                                                                $35
                                                                                                                                                                                                                                                                                                  Aristarco 25 Peg Plate Rack Accessory
                                                                                                                                                                                                                                                                                                  WABD.5050.25
                                                                                                                                                                                                                                                                                                  $35
