Product Brand

Aristarco

PRODUCT MODEL No

AH800EPRS

Product Serial Number

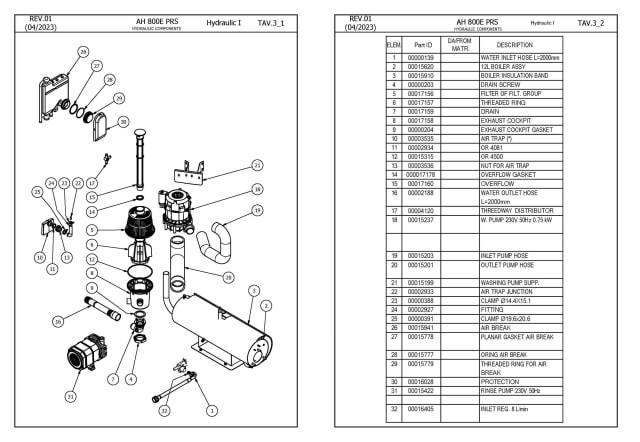

Spare Parts Drawing
spari.ah800eprs_a1_electrical1_spare_parts spari.ah800eprs_a1_electrical2_spare_parts spari.ah800eprs_a1_electrical3_spare_parts spari.ah800eprs_a1_hydraulic1_spare_parts spari.ah800eprs_a2_hydraulic2_spare_parts spari.ah800eprs_a1_hydraulic3_spare_parts spari.ah800eprs_a1_hydraulic4_spare_parts spari.ah800eprs_a1_mechanical1_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    O ring 128
    25
    $4
      O ring for boiler flange
      57
      $6.93
        Water inlet hose 2000mm
        139
        $37.50
          Clamp 19 6x20 6
          391
          $4
            Single solen valve 90 230v
            394
            $44.43
              O ring 112
              697
              $4
                O ring 147
                1633
                $4
                  Power cable 5G 4
                  1679
                  $208.26
                    Clamp 9 8-10 4 zn
                    2152
                    $4
                      Washing shaft pin
                      2153
                      $41.64
                        Water outlet hose 2000mm
                        2188
                        $69.42
                          Rinse arm plug
                          2502
                          $4
                            O ring 106
                            2531
                            $4
                              Traction spring
                              2543
                              $83.31
                                Washing arm cap
                                2650
                                $5.55
                                  Exhaust cockpit gasket
                                  204
                                  $4
                                    Clamp 14 4x15 1
                                    388
                                    $4
                                      Spring
                                      2654
                                      $4
                                        Filter 0.47 uf
                                        2779
                                        $27.78
                                          Fitting
                                          2927
                                          $11.10
                                            Air trap junction
                                            2933
                                            $6.12
                                              O ring 4081
                                              2934
                                              $4
                                                Hose
                                                3072
                                                $33.33
                                                  Rubber gasket
                                                  3086
                                                  $8.34
                                                    Nut m12x1
                                                    3265
                                                    $19.44
                                                      Air trap
                                                      3535
                                                      $16.65
                                                        Nut for air trap
                                                        3536
                                                        $6.93
                                                          Manual reset safety thermostat
                                                          4066
                                                          $19.44
                                                            Three way distributor
                                                            4120
                                                            $8.34
                                                              Contactor 230v 50hz bf09 4 2kw
                                                              4375
                                                              $138.84
                                                                Washer
                                                                4671
                                                                $12.51
                                                                  Manual reset safety thermostat
                                                                  4913
                                                                  $19.44
                                                                    Deterg dispens filter assy
                                                                    5069
                                                                    $63.87
                                                                      90 m13x1 plastic connection
                                                                      10620
                                                                      $24.99
                                                                        Gasket for washing flange
                                                                        10955
                                                                        $6.93
                                                                          Adjustable feet
                                                                          12041
                                                                          $69.42
                                                                            Micro switch
                                                                            12685
                                                                            $83.31
                                                                              Seal kit
                                                                              14564
                                                                              $61.08
                                                                                Element resistance 230v 2 8kw
                                                                                14795
                                                                                $152.73
                                                                                  Element 230v 9kw
                                                                                  14802
                                                                                  $444.30
                                                                                    Outlet pump hose
                                                                                    15201
                                                                                    $166.62
                                                                                      Washer
                                                                                      14371
                                                                                      $13.89
                                                                                        Inlet pump hose
                                                                                        15203
                                                                                        $144.39

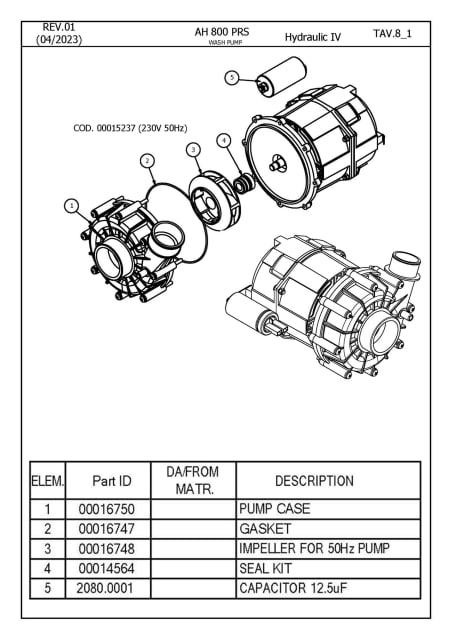

                                                                                          Wash pump complete
                                                                                          15237
                                                                                          $777.51
                                                                                            O ring 4500
                                                                                            15315
                                                                                            $4
                                                                                              Rinse pump 230v 50hz
                                                                                              15422
                                                                                              $721.98
                                                                                                12l boiler assy
                                                                                                15620
                                                                                                $888.60
                                                                                                  Oring air break
                                                                                                  15777
                                                                                                  $4
                                                                                                    Planar gasket air break
                                                                                                    15778
                                                                                                    $4
                                                                                                      Threaded ring for air break
                                                                                                      15779
                                                                                                      $10.56
                                                                                                        Boiler insulation band
                                                                                                        15910
                                                                                                        $61.08
                                                                                                          Air break
                                                                                                          15941
                                                                                                          $111.09
                                                                                                            Magnetic unit
                                                                                                            16006
                                                                                                            $33.33
                                                                                                              Pressure switch 125/45
                                                                                                              16037
                                                                                                              $77.76
                                                                                                                Pressure switch 28/12
                                                                                                                16403
                                                                                                                $77.76
                                                                                                                  Inlet reg 8 l min
                                                                                                                  16405
                                                                                                                  $7.77
                                                                                                                    Overflow gasket
                                                                                                                    17178
                                                                                                                    $9.72
                                                                                                                      Resistance 230v 6kw
                                                                                                                      16572
                                                                                                                      $388.77
                                                                                                                        Gasket
                                                                                                                        16747
                                                                                                                        $12.51
                                                                                                                          Impeller for 50hz pump
                                                                                                                          16748
                                                                                                                          $83.31
                                                                                                                            Internal detergent dispenser hose
                                                                                                                            17128
                                                                                                                            $105.51
                                                                                                                              Rinse nozzle
                                                                                                                              17155
                                                                                                                              $8.34
                                                                                                                                Filter of filt group
                                                                                                                                17156
                                                                                                                                $55.53
                                                                                                                                  Drain
                                                                                                                                  17159
                                                                                                                                  $33.33
                                                                                                                                    Drain hose 2500mm
                                                                                                                                    271500002
                                                                                                                                    $58.32
                                                                                                                                      Capacitor 12.5uf
                                                                                                                                      2080.0001
                                                                                                                                      $97.20
                                                                                                                                        Ntc probe amp module for boiler tank
                                                                                                                                        4011.0002
                                                                                                                                        $77.76
                                                                                                                                          Contactor bf26 230 45
                                                                                                                                          4016.0001
                                                                                                                                          $319.35
                                                                                                                                            2 relays electronic cardboard
                                                                                                                                            4030.0002
                                                                                                                                            $624.78
                                                                                                                                              6 keys display
                                                                                                                                              4035.0001
                                                                                                                                              $319.35
                                                                                                                                                10-wires flat cable
                                                                                                                                                4040.0001
                                                                                                                                                $41.64
                                                                                                                                                  Internal rinse aid disp hose with valve
                                                                                                                                                  8395.0012
                                                                                                                                                  $102.75
                                                                                                                                                    Cover assy
                                                                                                                                                    8395.0013
                                                                                                                                                    $24.99
                                                                                                                                                      Rinse aid dispenser roll holder assy
                                                                                                                                                      8395.0014
                                                                                                                                                      $69.42
                                                                                                                                                        Washing arm washer
                                                                                                                                                        1173
                                                                                                                                                        $4
                                                                                                                                                          Connector
                                                                                                                                                          1954
                                                                                                                                                          $44.43
                                                                                                                                                            PTFE ring
                                                                                                                                                            2808
                                                                                                                                                            $4.17
                                                                                                                                                              Stainless steel knurled screw
                                                                                                                                                              1133
                                                                                                                                                              $27.78
                                                                                                                                                                Epdm hose
                                                                                                                                                                3040.0002
                                                                                                                                                                $8.34
                                                                                                                                                                  Drain hose support
                                                                                                                                                                  16395
                                                                                                                                                                  $13.89
                                                                                                                                                                    Single skinned hood assy
                                                                                                                                                                    8302.0019
                                                                                                                                                                    $1,999.35
                                                                                                                                                                      Bushing for hood lift handle
                                                                                                                                                                      14616
                                                                                                                                                                      $33.33
                                                                                                                                                                        Spring plate lock
                                                                                                                                                                        3056.0038
                                                                                                                                                                        $13.89
                                                                                                                                                                          Spring plate
                                                                                                                                                                          3051.0031
                                                                                                                                                                          $41.64
                                                                                                                                                                            Handle fixing plate
                                                                                                                                                                            3002.0054
                                                                                                                                                                            $27.78
                                                                                                                                                                              Handle support
                                                                                                                                                                              14390
                                                                                                                                                                              $27.78
                                                                                                                                                                                Double skinned hood assy opt
                                                                                                                                                                                8302.002
                                                                                                                                                                                $3,554.38
                                                                                                                                                                                  Rail guide
                                                                                                                                                                                  14398
                                                                                                                                                                                  $111.09
                                                                                                                                                                                    Hood lift handle
                                                                                                                                                                                    16878
                                                                                                                                                                                    $499.83
                                                                                                                                                                                      Spring roller
                                                                                                                                                                                      2576
                                                                                                                                                                                      $16.65
                                                                                                                                                                                        Sleeve bearing
                                                                                                                                                                                        2574
                                                                                                                                                                                        $4.17
                                                                                                                                                                                          Hook m8x120
                                                                                                                                                                                          6558
                                                                                                                                                                                          $19.44
                                                                                                                                                                                            90 elbow
                                                                                                                                                                                            3065.0009
                                                                                                                                                                                            $99.96
                                                                                                                                                                                              Internal plate
                                                                                                                                                                                              3051.0032
                                                                                                                                                                                              $15.27
                                                                                                                                                                                                Side panel rh-lh
                                                                                                                                                                                                3011.0005
                                                                                                                                                                                                $249.93
                                                                                                                                                                                                  Tank cover band
                                                                                                                                                                                                  3009.0001
                                                                                                                                                                                                  $305.46
                                                                                                                                                                                                    Upper panel
                                                                                                                                                                                                    3012.0008
                                                                                                                                                                                                    $111.09
                                                                                                                                                                                                      Rear panel
                                                                                                                                                                                                      3012.0007
                                                                                                                                                                                                      $305.46
                                                                                                                                                                                                        Roof panel rh-lh
                                                                                                                                                                                                        3011.0006
                                                                                                                                                                                                        $166.62
                                                                                                                                                                                                          Basket frame assy
                                                                                                                                                                                                          15360
                                                                                                                                                                                                          $472.08
                                                                                                                                                                                                            Tank filter
                                                                                                                                                                                                            14801
                                                                                                                                                                                                            $333.21
                                                                                                                                                                                                              Cap 3/4 pp
                                                                                                                                                                                                              2006.0002
                                                                                                                                                                                                              $24.99
                                                                                                                                                                                                                Threaded ring for cap 3/4 pp
                                                                                                                                                                                                                2019.0002
                                                                                                                                                                                                                $16.65
                                                                                                                                                                                                                  M10 brass nut
                                                                                                                                                                                                                  267
                                                                                                                                                                                                                  $4.17
                                                                                                                                                                                                                    Cable guide
                                                                                                                                                                                                                    14489
                                                                                                                                                                                                                    $5.55
                                                                                                                                                                                                                      Detergent dispenser support
                                                                                                                                                                                                                      14349
                                                                                                                                                                                                                      $55.53
                                                                                                                                                                                                                        Washer
                                                                                                                                                                                                                        14376
                                                                                                                                                                                                                        $77.76
                                                                                                                                                                                                                          Threaded ring
                                                                                                                                                                                                                          17157
                                                                                                                                                                                                                          $55.53
                                                                                                                                                                                                                            Exhaust cockpit
                                                                                                                                                                                                                            17158
                                                                                                                                                                                                                            $74.97
                                                                                                                                                                                                                              Overflow
                                                                                                                                                                                                                              17160
                                                                                                                                                                                                                              $49.98
                                                                                                                                                                                                                                Washing pump supp
                                                                                                                                                                                                                                15199
                                                                                                                                                                                                                                $55.53
                                                                                                                                                                                                                                  Protection
                                                                                                                                                                                                                                  16028
                                                                                                                                                                                                                                  $69.42
                                                                                                                                                                                                                                    Washing pipe
                                                                                                                                                                                                                                    14732
                                                                                                                                                                                                                                    $97.20
                                                                                                                                                                                                                                      Washing pipe assy
                                                                                                                                                                                                                                      14379
                                                                                                                                                                                                                                      $305.46
                                                                                                                                                                                                                                        Washing arm
                                                                                                                                                                                                                                        8304.0001
                                                                                                                                                                                                                                        $360.99
                                                                                                                                                                                                                                          Fixing part
                                                                                                                                                                                                                                          10740
                                                                                                                                                                                                                                          $22.23
                                                                                                                                                                                                                                            Rear sup washing pipe assy
                                                                                                                                                                                                                                            10953
                                                                                                                                                                                                                                            $180.51
                                                                                                                                                                                                                                              Double wash distributor
                                                                                                                                                                                                                                              2149
                                                                                                                                                                                                                                              $13.89
                                                                                                                                                                                                                                                Drain pump support
                                                                                                                                                                                                                                                14606
                                                                                                                                                                                                                                                $33.33

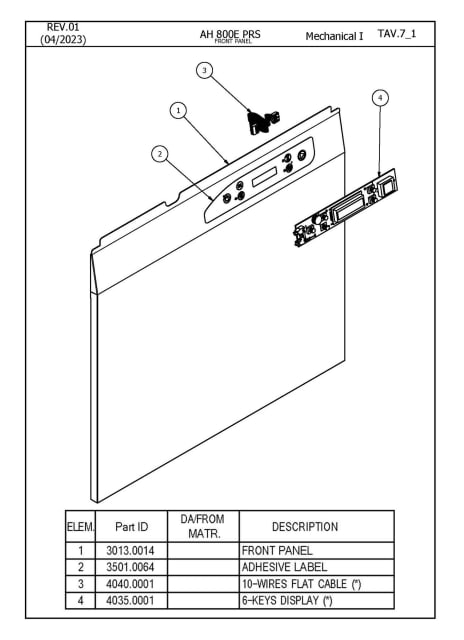

                                                                                                                                                                                                                                                  Front panel
                                                                                                                                                                                                                                                  3013.0014
                                                                                                                                                                                                                                                  $305.46
                                                                                                                                                                                                                                                    Adhesive label
                                                                                                                                                                                                                                                    3501.0064
                                                                                                                                                                                                                                                    $111.09
                                                                                                                                                                                                                                                      Pump case
                                                                                                                                                                                                                                                      16750
                                                                                                                                                                                                                                                      $97.20
                                                                                                                                                                                                                                                        Guide for hood lift handle
                                                                                                                                                                                                                                                        14789
                                                                                                                                                                                                                                                        $38.88

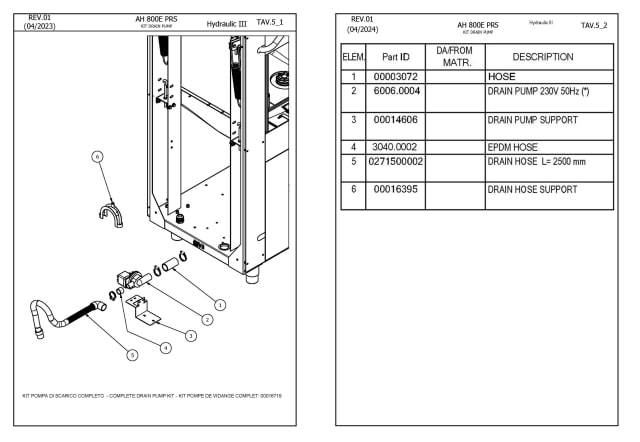

                                                                                                                                                                                                                                                          Drain pump 90 230v 50hz
                                                                                                                                                                                                                                                          6006.0004
                                                                                                                                                                                                                                                          $194.37
                                                                                                                                                                                                                                                            Drain screw
                                                                                                                                                                                                                                                            203
                                                                                                                                                                                                                                                            $6.93

                                                                                                                                                                                                                                                            Consumables

                                                                                                                                                                                                                                                              Aristarco Flat Basket Accessory
                                                                                                                                                                                                                                                              WABC.5050
                                                                                                                                                                                                                                                              $35
                                                                                                                                                                                                                                                                Aristarco 64 Peg Plate Rack Accessory
                                                                                                                                                                                                                                                                WABD.5050.64
                                                                                                                                                                                                                                                                $35
                                                                                                                                                                                                                                                                  Aristarco 25 Peg Plate Rack Accessory
                                                                                                                                                                                                                                                                  WABD.5050.25
                                                                                                                                                                                                                                                                  $35
