Product Brand

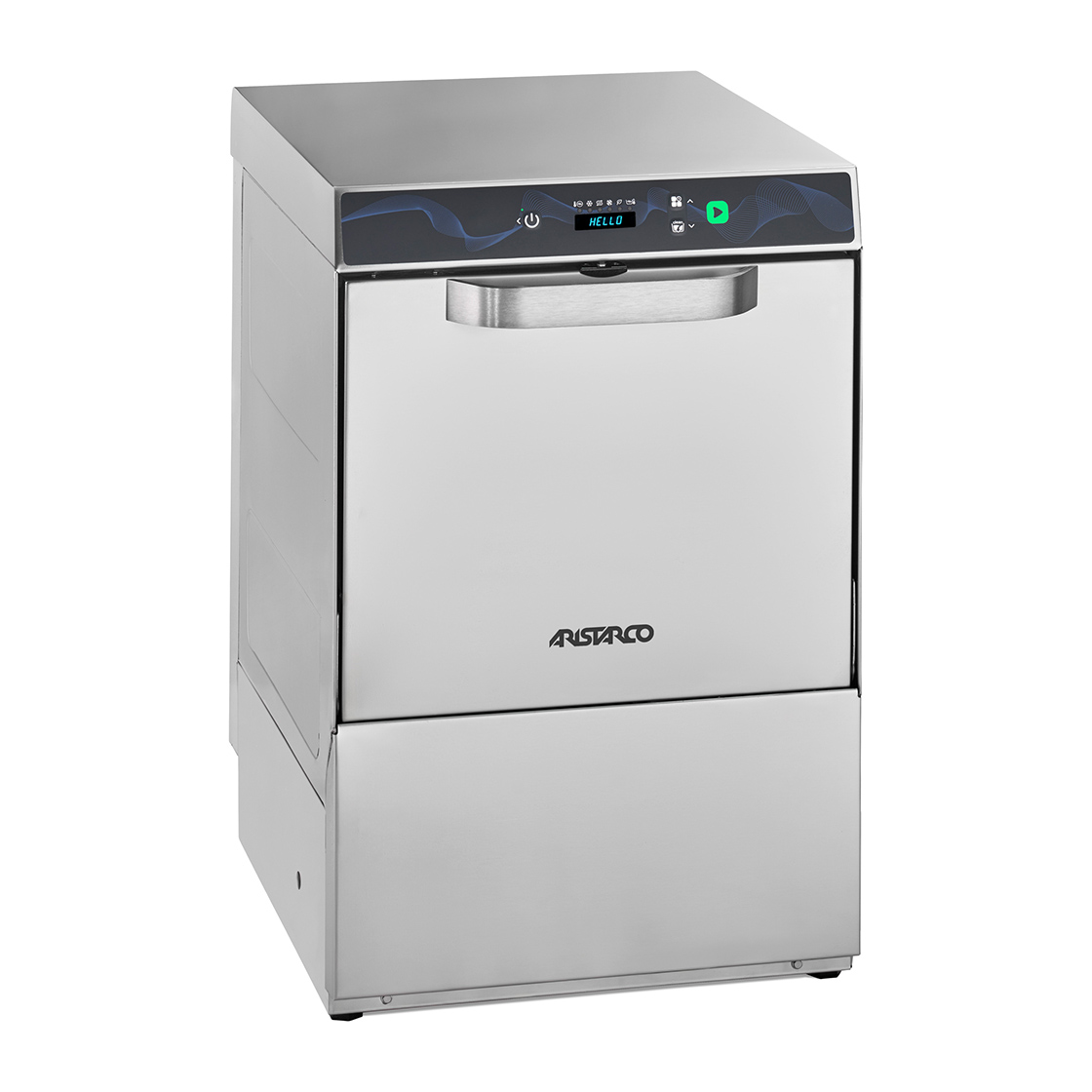

Aristarco

PRODUCT MODEL No

SPARI.AF40.30ESI.LS

Product Serial Number

Spare Parts Drawing
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    O ring 128
    25
    $4
      O ring for boiler flange
      57
      $6.93
        O ring 115
        123
        $4
          Water inlet hose 2000mm
          139
          $37.50
            Sphere 5/8 ptfe
            144
            $16.65
              Single solen valve 90 230v
              394
              $44.43
                O ring 147
                1633
                $4
                  Rinse arm plug
                  2502
                  $4
                    O ring 106
                    2531
                    $4
                      Washing arm cap
                      2650
                      $5.55
                        Filter 0.47 uf
                        2779
                        $27.78
                          No return valve body
                          2802
                          $27.78
                            No return valve ring nut
                            2803
                            $18.06
                              Fitting
                              2927
                              $11.10
                                Air trap junction
                                2933
                                $6.12
                                  O ring 4081
                                  2934
                                  $4
                                    Rubber gasket
                                    3086
                                    $8.34
                                      Wash pipe
                                      3474
                                      $111.09
                                        Drain
                                        3515
                                        $38.88
                                          Nut for air trap
                                          3536
                                          $6.93
                                            Three way distributor
                                            4120
                                            $8.34
                                              Washer
                                              4671
                                              $12.51
                                                Manual reset safety thermostat
                                                4913
                                                $19.44
                                                  Rubber hose
                                                  4985
                                                  $55.53
                                                    Magnetic unit
                                                    5679
                                                    $33.33
                                                      Adjustable foot
                                                      6662
                                                      $11.10
                                                        Drain pump 230v 50hz
                                                        9563
                                                        $194.37
                                                          90 m13x1 plastic connection
                                                          10620
                                                          $24.99
                                                            Flange
                                                            12208
                                                            $6.93
                                                              Micro switch
                                                              12685
                                                              $83.31
                                                                Pump case
                                                                14572
                                                                $111.09
                                                                  Gasket
                                                                  14574
                                                                  $19.44
                                                                    Fixing part
                                                                    12996
                                                                    $41.64
                                                                      Filter of filtering group
                                                                      470900002
                                                                      $27.78
                                                                        Air trap
                                                                        480100001
                                                                        $16.65
                                                                          Cover no return valve
                                                                          16213
                                                                          $8.34
                                                                            Pressure switch 28/12
                                                                            16403
                                                                            $77.76
                                                                              Overflow gasket
                                                                              17178
                                                                              $9.72
                                                                                Rinse nozzle
                                                                                17155
                                                                                $8.34
                                                                                  Exhaust cockpit gasket
                                                                                  80600004
                                                                                  $7.77
                                                                                    Door rod washer
                                                                                    111200001
                                                                                    $4
                                                                                      Element resistance 2.4kw 220-240v
                                                                                      130400001
                                                                                      $138.84
                                                                                        Boiler Assembly 3lt
                                                                                        160500005
                                                                                        $305.46
                                                                                          Door jack assembly
                                                                                          161100002
                                                                                          $36.09
                                                                                            Suction pump sleeve
                                                                                            220100002
                                                                                            $27.78
                                                                                              Pump delivery sleeve
                                                                                              220200003
                                                                                              $41.64
                                                                                                Threaded ring for filtering group
                                                                                                235200003
                                                                                                $18.06
                                                                                                  Drain hose 2500mm
                                                                                                  271500002
                                                                                                  $58.32
                                                                                                    Overflow
                                                                                                    320200007
                                                                                                    $22.23
                                                                                                      Double wash distributor
                                                                                                      330700001
                                                                                                      $16.65
                                                                                                        Tensioning pin
                                                                                                        430800001
                                                                                                        $10.83
                                                                                                          Block for door tensioner
                                                                                                          780100002
                                                                                                          $11.10
                                                                                                            Tensioner guide
                                                                                                            1120600002
                                                                                                            $6.93
                                                                                                              Door tensioner
                                                                                                              1200100002
                                                                                                              $41.64
                                                                                                                Linchpin
                                                                                                                1870100002
                                                                                                                $7.77
                                                                                                                  Exhaust cockpit
                                                                                                                  2050100003
                                                                                                                  $22.23
                                                                                                                    Spacer for electronic timer
                                                                                                                    1020.0001
                                                                                                                    $4
                                                                                                                      Capacitor 8f
                                                                                                                      2080.0003
                                                                                                                      $61.08
                                                                                                                        Safety thermostat 95 fast-on
                                                                                                                        4020.0001
                                                                                                                        $19.44
                                                                                                                          Element 2.7kw 220-240v
                                                                                                                          4025.0001
                                                                                                                          $180.51
                                                                                                                            10 wires flat cable
                                                                                                                            4040.0005
                                                                                                                            $41.64
                                                                                                                              Wash pump 230v 50hz
                                                                                                                              6001.0002
                                                                                                                              $499.83
                                                                                                                                D 80 impeller for 50hz pump
                                                                                                                                8304.0006
                                                                                                                                $111.09
                                                                                                                                  Stainless steel wash arm 40 with screw
                                                                                                                                  8304.0015
                                                                                                                                  $305.46
                                                                                                                                    Base assembly
                                                                                                                                    640200003
                                                                                                                                    $333.21
                                                                                                                                      Rigid cable guide
                                                                                                                                      17100
                                                                                                                                      $5.55
                                                                                                                                        Lh mountain bracket assembly
                                                                                                                                        166400002
                                                                                                                                        $36.09
                                                                                                                                          Rear panel
                                                                                                                                          1640200001
                                                                                                                                          $194.37
                                                                                                                                            Lower trim panel
                                                                                                                                            1740700001
                                                                                                                                            $152.73
                                                                                                                                              Cable clamp
                                                                                                                                              612
                                                                                                                                              $4.17
                                                                                                                                                Male plastic latch
                                                                                                                                                15239
                                                                                                                                                $4
                                                                                                                                                  Rh mountain bracket assembly
                                                                                                                                                  166300002
                                                                                                                                                  $36.09
                                                                                                                                                    Cable guide
                                                                                                                                                    2005.0005
                                                                                                                                                    $4
                                                                                                                                                      Lower rear panel
                                                                                                                                                      3012.0003
                                                                                                                                                      $33.33
                                                                                                                                                        Electrical support
                                                                                                                                                        740100001
                                                                                                                                                        $61.08
                                                                                                                                                          Epdm hose
                                                                                                                                                          3040.0002
                                                                                                                                                          $8.34
                                                                                                                                                            Drain hose support
                                                                                                                                                            16395
                                                                                                                                                            $13.89
                                                                                                                                                              Seal kit
                                                                                                                                                              8395.0015
                                                                                                                                                              $83.31
                                                                                                                                                                Power cable 5g 3 5
                                                                                                                                                                2776
                                                                                                                                                                $144.39
                                                                                                                                                                  Washing and rinse through pin
                                                                                                                                                                  3065.0028
                                                                                                                                                                  $41.64

                                                                                                                                                                  Consumables
