Product Brand

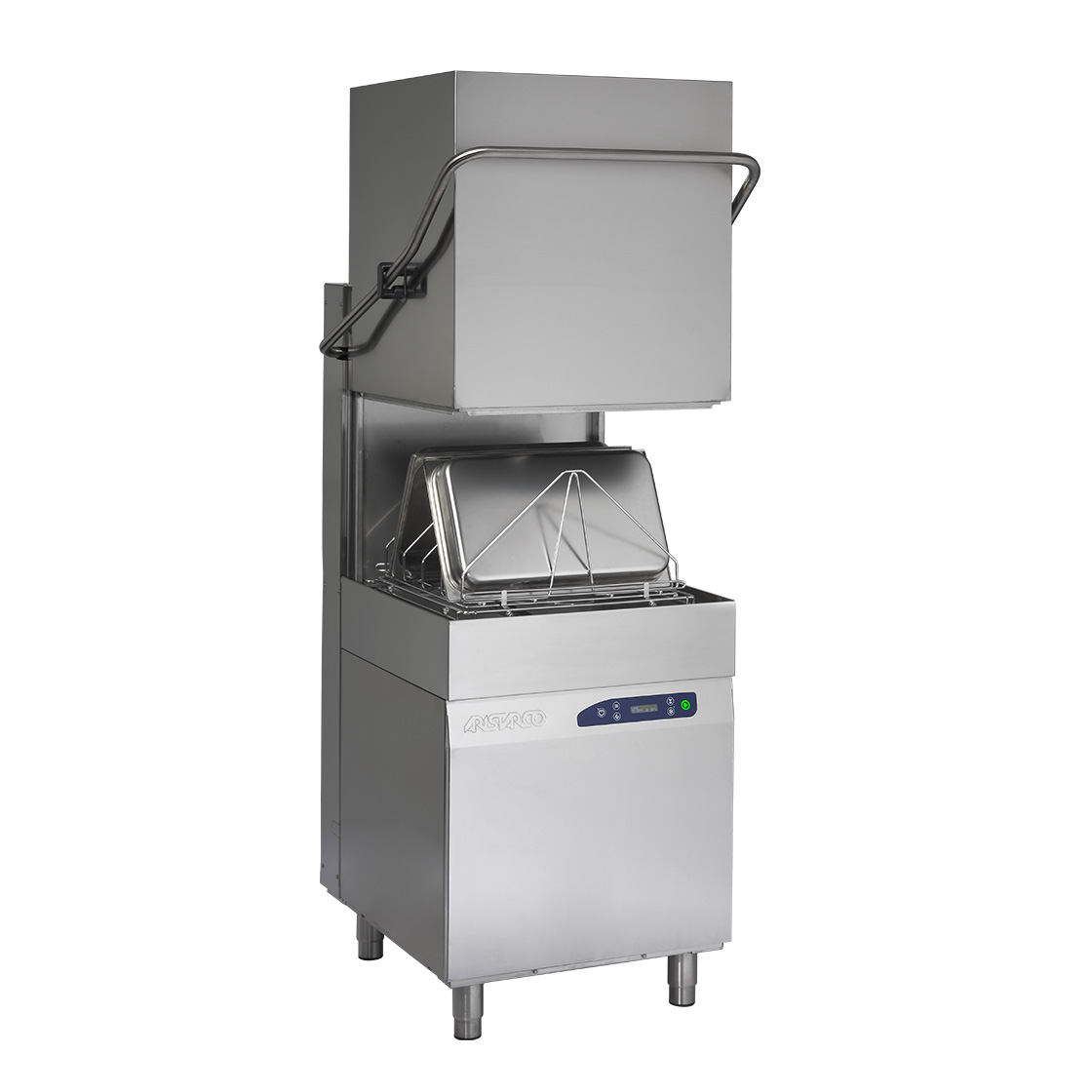

Aristarco

PRODUCT MODEL No

AH60.42EPRS

Product Serial Number

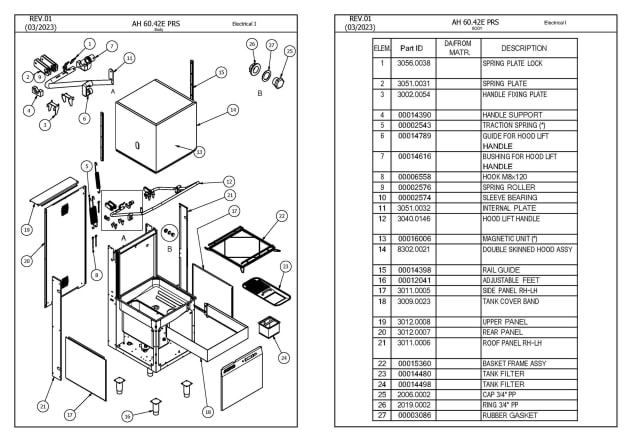

Spare Parts Drawing
spari.ah60.42epr_a1_electrical1_spare_parts spari.ah60.42epr_a1_electrical2_spare_parts spari.ah60.42epr_a1_electrical3_spare_parts spari.ah60.42epr_a1_hydraulic1_spare_parts spari.ah60.42epr_a1_hydraulic2_spare_parts spari.ah60.42epr_a1_mechanical1_spare_parts spari.ah60.42epr_a1_mechanical2_spare_parts spari.ah60.42epr_a1_mechanical3_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    O ring 128
    25
    $4
      O ring for boiler flange
      57
      $6.93
        Water inlet hose 2000mm
        139
        $37.50
          Clamp 19 6x20 6
          391
          $4
            Single solen valve 90 230v
            394
            $44.43

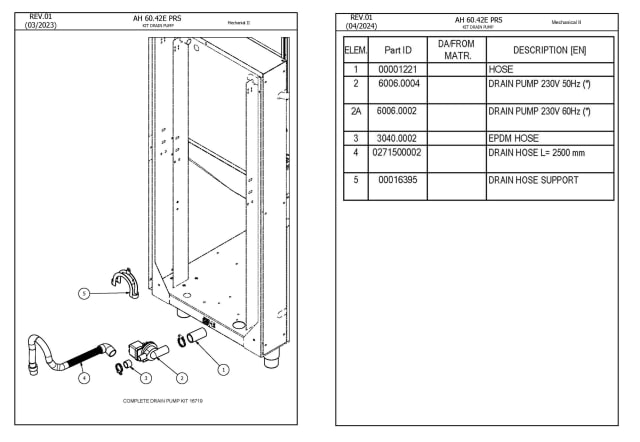

              Hose
              1221
              $152.73
                Water outlet hose 2000mm
                2188
                $69.42
                  Rinse arm plug
                  2502
                  $4
                    O ring 106
                    2531
                    $4
                      Traction spring
                      2543
                      $83.31
                        Washing arm cap
                        2650
                        $5.55
                          Exhaust cockpit gasket
                          204
                          $4
                            Clamp 14 4x15 1
                            388
                            $4
                              Spring
                              2654
                              $4
                                Filter 0.47 uf
                                2779
                                $27.78
                                  Fitting
                                  2927
                                  $11.10
                                    Air trap junction
                                    2933
                                    $6.12
                                      O ring 4081
                                      2934
                                      $4
                                        Rubber gasket
                                        3086
                                        $8.34
                                          Nut m12x1
                                          3265
                                          $19.44
                                            Air trap
                                            3535
                                            $16.65
                                              Nut for air trap
                                              3536
                                              $6.93
                                                Manual reset safety thermostat
                                                4066
                                                $19.44
                                                  Three way distributor
                                                  4120
                                                  $8.34
                                                    Contactor 230v 50hz bf09 4 2kw
                                                    4375
                                                    $138.84
                                                      Manual reset safety thermostat
                                                      4913
                                                      $19.44
                                                        Deterg dispens filter assy
                                                        5069
                                                        $63.87
                                                          O ring 158
                                                          6546
                                                          $4
                                                            Gasket for washing flange
                                                            10955
                                                            $6.93
                                                              Adjustable feet
                                                              12041
                                                              $69.42
                                                                Micro switch
                                                                12685
                                                                $83.31
                                                                  Seal kit
                                                                  14564
                                                                  $61.08
                                                                    Element 230v 9kw
                                                                    14802
                                                                    $444.30
                                                                      Outlet pump hose
                                                                      15201
                                                                      $166.62
                                                                        Inlet pump hose
                                                                        15204
                                                                        $194.37
                                                                          O ring 4500
                                                                          15315
                                                                          $4
                                                                            Pressure switch 70 180
                                                                            15317
                                                                            $77.76
                                                                              Rinse pump 230v 50hz
                                                                              15422
                                                                              $721.98

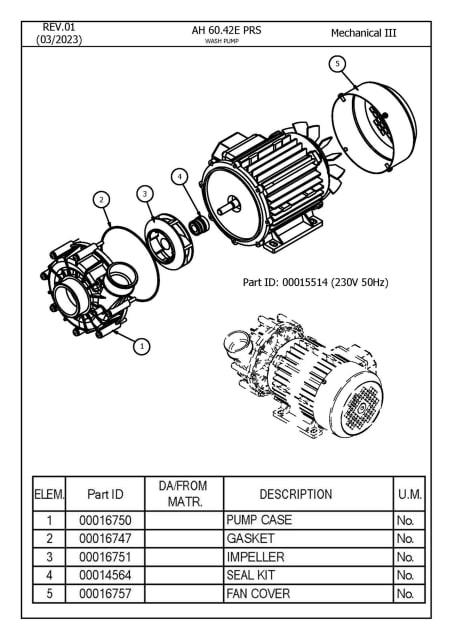

                                                                                Wash pump 230v 50hz 1.3kw complete
                                                                                15514
                                                                                $1,388.43
                                                                                  Element 230v 1.5kw
                                                                                  15608
                                                                                  $152.73
                                                                                    12l boiler assy
                                                                                    15620
                                                                                    $888.60
                                                                                      Oring air break
                                                                                      15777
                                                                                      $4
                                                                                        Planar gasket air break
                                                                                        15778
                                                                                        $4
                                                                                          Threaded ring for air break
                                                                                          15779
                                                                                          $10.56
                                                                                            Boiler insulation band
                                                                                            15910
                                                                                            $61.08
                                                                                              Air break
                                                                                              15941
                                                                                              $111.09
                                                                                                Magnetic unit
                                                                                                16006
                                                                                                $33.33
                                                                                                  Pressure switch 28/12
                                                                                                  16403
                                                                                                  $77.76
                                                                                                    Inlet reg 8 l min
                                                                                                    16405
                                                                                                    $7.77
                                                                                                      Overflow gasket
                                                                                                      17178
                                                                                                      $9.72
                                                                                                        Gasket
                                                                                                        16747
                                                                                                        $12.51
                                                                                                          Impeller
                                                                                                          16751
                                                                                                          $97.20
                                                                                                            Internal detergent dispenser hose
                                                                                                            17128
                                                                                                            $105.51
                                                                                                              Rinse nozzle
                                                                                                              17155
                                                                                                              $8.34
                                                                                                                Filter of filt group
                                                                                                                17156
                                                                                                                $55.53
                                                                                                                  Drain
                                                                                                                  17159
                                                                                                                  $33.33
                                                                                                                    Drain hose 2500mm
                                                                                                                    271500002
                                                                                                                    $58.32
                                                                                                                      Rinse arm complete
                                                                                                                      0002761C
                                                                                                                      $333.21
                                                                                                                        Ntc probe amp module for boiler tank
                                                                                                                        4011.0002
                                                                                                                        $77.76
                                                                                                                          Contactor bf26 230 45
                                                                                                                          4016.0001
                                                                                                                          $319.35
                                                                                                                            2 relays electronic cardboard
                                                                                                                            4030.0002
                                                                                                                            $624.78
                                                                                                                              6 keys display
                                                                                                                              4035.0001
                                                                                                                              $319.35
                                                                                                                                10-wires flat cable
                                                                                                                                4040.0001
                                                                                                                                $41.64
                                                                                                                                  Internal rinse aid disp hose with valve
                                                                                                                                  8395.0012
                                                                                                                                  $102.75
                                                                                                                                    Cover assy
                                                                                                                                    8395.0013
                                                                                                                                    $24.99
                                                                                                                                      Rinse aid dispenser roll holder assy
                                                                                                                                      8395.0014
                                                                                                                                      $69.42
                                                                                                                                        Epdm hose
                                                                                                                                        3040.0002
                                                                                                                                        $8.34
                                                                                                                                          Drain hose support
                                                                                                                                          16395
                                                                                                                                          $13.89
                                                                                                                                            Bushing for hood lift handle
                                                                                                                                            14616
                                                                                                                                            $33.33
                                                                                                                                              Spring plate lock
                                                                                                                                              3056.0038
                                                                                                                                              $13.89
                                                                                                                                                Spring plate
                                                                                                                                                3051.0031
                                                                                                                                                $41.64
                                                                                                                                                  Handle fixing plate
                                                                                                                                                  3002.0054
                                                                                                                                                  $27.78
                                                                                                                                                    Handle support
                                                                                                                                                    14390
                                                                                                                                                    $27.78
                                                                                                                                                      Rail guide
                                                                                                                                                      14398
                                                                                                                                                      $111.09
                                                                                                                                                        Spring roller
                                                                                                                                                        2576
                                                                                                                                                        $16.65
                                                                                                                                                          Sleeve bearing
                                                                                                                                                          2574
                                                                                                                                                          $4.17
                                                                                                                                                            Hook m8x120
                                                                                                                                                            6558
                                                                                                                                                            $19.44
                                                                                                                                                              Internal plate
                                                                                                                                                              3051.0032
                                                                                                                                                              $15.27
                                                                                                                                                                Side panel rh-lh
                                                                                                                                                                3011.0005
                                                                                                                                                                $249.93
                                                                                                                                                                  Upper panel
                                                                                                                                                                  3012.0008
                                                                                                                                                                  $111.09
                                                                                                                                                                    Rear panel
                                                                                                                                                                    3012.0007
                                                                                                                                                                    $305.46
                                                                                                                                                                      Roof panel rh-lh
                                                                                                                                                                      3011.0006
                                                                                                                                                                      $166.62
                                                                                                                                                                        Basket frame assy
                                                                                                                                                                        15360
                                                                                                                                                                        $472.08
                                                                                                                                                                          Cap 3/4 pp
                                                                                                                                                                          2006.0002
                                                                                                                                                                          $24.99
                                                                                                                                                                            Threaded ring for cap 3/4 pp
                                                                                                                                                                            2019.0002
                                                                                                                                                                            $16.65
                                                                                                                                                                              Cable guide
                                                                                                                                                                              14489
                                                                                                                                                                              $5.55
                                                                                                                                                                                Detergent dispenser support
                                                                                                                                                                                14349
                                                                                                                                                                                $55.53
                                                                                                                                                                                  Drain screw
                                                                                                                                                                                  203
                                                                                                                                                                                  $6.93
                                                                                                                                                                                    Threaded ring
                                                                                                                                                                                    17157
                                                                                                                                                                                    $55.53
                                                                                                                                                                                      Exhaust cockpit
                                                                                                                                                                                      17158
                                                                                                                                                                                      $74.97
                                                                                                                                                                                        Washing pump supp
                                                                                                                                                                                        15199
                                                                                                                                                                                        $55.53
                                                                                                                                                                                          Protection
                                                                                                                                                                                          16028
                                                                                                                                                                                          $69.42
                                                                                                                                                                                            Rear sup washing pipe assy
                                                                                                                                                                                            10953
                                                                                                                                                                                            $180.51
                                                                                                                                                                                              Front panel
                                                                                                                                                                                              3013.0014
                                                                                                                                                                                              $305.46
                                                                                                                                                                                                Adhesive label
                                                                                                                                                                                                3501.0064
                                                                                                                                                                                                $111.09
                                                                                                                                                                                                  Pump case
                                                                                                                                                                                                  16750
                                                                                                                                                                                                  $97.20
                                                                                                                                                                                                    Guide for hood lift handle
                                                                                                                                                                                                    14789
                                                                                                                                                                                                    $38.88
                                                                                                                                                                                                      Overflow
                                                                                                                                                                                                      17161
                                                                                                                                                                                                      $69.42
                                                                                                                                                                                                        Hood lift handle
                                                                                                                                                                                                        3040.0146
                                                                                                                                                                                                        $694.23
                                                                                                                                                                                                          Double skinned hood assy
                                                                                                                                                                                                          8302.0021
                                                                                                                                                                                                          $3,887.59
                                                                                                                                                                                                            Tank filter
                                                                                                                                                                                                            14480
                                                                                                                                                                                                            $388.77
                                                                                                                                                                                                              Tank filter
                                                                                                                                                                                                              14498
                                                                                                                                                                                                              $333.21
                                                                                                                                                                                                                Power cable 5g 3 5
                                                                                                                                                                                                                2776
                                                                                                                                                                                                                $144.39
                                                                                                                                                                                                                  90 elbow
                                                                                                                                                                                                                  6590
                                                                                                                                                                                                                  $69.42
                                                                                                                                                                                                                    Disc assy of sup washing pipe
                                                                                                                                                                                                                    8380.001
                                                                                                                                                                                                                    $36.09
                                                                                                                                                                                                                      Upper rinse pipe
                                                                                                                                                                                                                      10952
                                                                                                                                                                                                                      $77.76
                                                                                                                                                                                                                        Washing pipe assy
                                                                                                                                                                                                                        8305.0001
                                                                                                                                                                                                                        $188.82
                                                                                                                                                                                                                          Internal flange
                                                                                                                                                                                                                          17510
                                                                                                                                                                                                                          $138.84
                                                                                                                                                                                                                            Internal flange
                                                                                                                                                                                                                            17541
                                                                                                                                                                                                                            $38.88
                                                                                                                                                                                                                              Upper tensioner
                                                                                                                                                                                                                              11088
                                                                                                                                                                                                                              $69.42
                                                                                                                                                                                                                                Wash pin
                                                                                                                                                                                                                                2587
                                                                                                                                                                                                                                $77.76
                                                                                                                                                                                                                                  Lower tensioner cover
                                                                                                                                                                                                                                  17509
                                                                                                                                                                                                                                  $41.64
                                                                                                                                                                                                                                    Stainless steel ring nut
                                                                                                                                                                                                                                    2416
                                                                                                                                                                                                                                    $33.33
                                                                                                                                                                                                                                      Stainless steel pin
                                                                                                                                                                                                                                      2417
                                                                                                                                                                                                                                      $36.09
                                                                                                                                                                                                                                        Teflon plan bearings
                                                                                                                                                                                                                                        2419
                                                                                                                                                                                                                                        $49.98
                                                                                                                                                                                                                                          Lower tensioner
                                                                                                                                                                                                                                          14578
                                                                                                                                                                                                                                          $69.42
                                                                                                                                                                                                                                            M12x1 ss fitting
                                                                                                                                                                                                                                            8648
                                                                                                                                                                                                                                            $38.88
                                                                                                                                                                                                                                              Lower washing pipe assy
                                                                                                                                                                                                                                              14357
                                                                                                                                                                                                                                              $472.08
                                                                                                                                                                                                                                                Fan cover
                                                                                                                                                                                                                                                16757
                                                                                                                                                                                                                                                $61.08
                                                                                                                                                                                                                                                  Drain pump 90 230v 50hz
                                                                                                                                                                                                                                                  6006.0004
                                                                                                                                                                                                                                                  $194.37

                                                                                                                                                                                                                                                  Consumables

                                                                                                                                                                                                                                                    Aristarco Flat Basket Accessory
                                                                                                                                                                                                                                                    WABC.5050
                                                                                                                                                                                                                                                    $35
                                                                                                                                                                                                                                                      Aristarco 64 Peg Plate Rack Accessory
                                                                                                                                                                                                                                                      WABD.5050.64
                                                                                                                                                                                                                                                      $35
                                                                                                                                                                                                                                                        Aristarco 25 Peg Plate Rack Accessory
                                                                                                                                                                                                                                                        WABD.5050.25
                                                                                                                                                                                                                                                        $35
