Product Brand

Giorik

PRODUCT MODEL No

SPGI.SNHE201WT

Product Serial Number

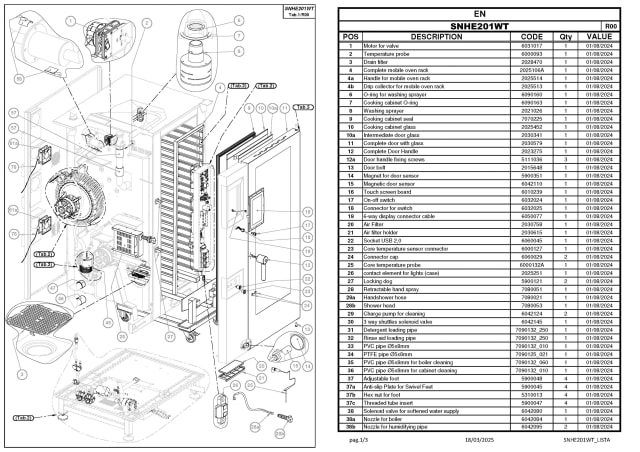

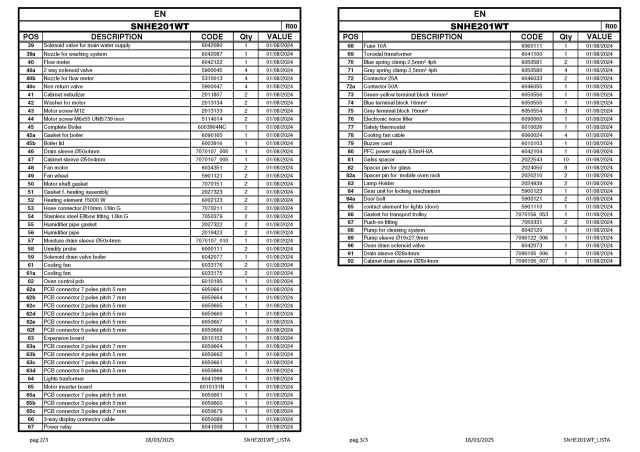

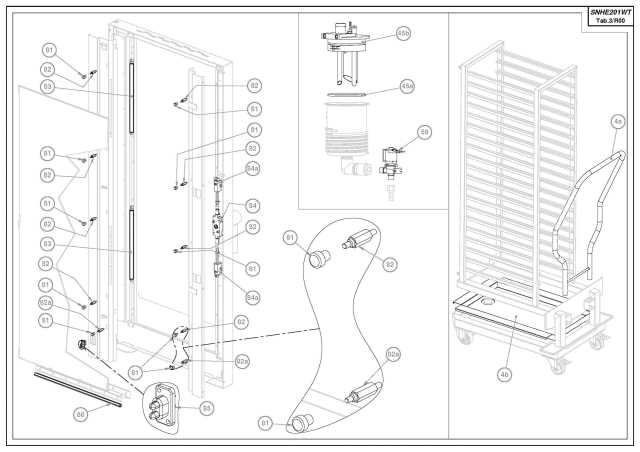

Spare Parts Drawing
spgi.snhe201wt_a1_spare_parts_drawing1 spgi.snhe201wt_a1_spare_parts_drawing2 spgi.snhe201wt_a1_spare_parts_drawing3 spgi.snhe201wt_a1_spare_parts_drawing4
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Door light connector
    2025007
    $114.77
      Gasket element
      2027323
      $165.40
        Cavity probe
        6000093
        $165.40
          Light transformer
          6041099
          $162.02
            Motorized valve
            6042073
            $718.96
              Boiler drain solenoid valve
              6042077
              $148.52
                Boiler expansion board
                6010153
                $718.96
                  Nozzle yellow
                  6042084
                  $25.32
                    Nozzle washing system blue
                    6042087
                    $7.09
                      Main board oven
                      6010195
                      $894.48
                        Nozzle boiler red
                        6042095
                        $8.78
                          Magnetic sensor
                          6042110
                          $74.26
                            Pump washing
                            6042120
                            $864.10
                              Flow meter
                              6042122
                              $249.78
                                Power relay
                                6041008
                                $249.78
                                  Oven seal 20 x 1/1
                                  7070225
                                  $351.04
                                    Shower minireel
                                    7080051
                                    $985.53
                                      Door light connector
                                      2025251
                                      $128.27
                                        Buzzer
                                        6010103
                                        $77.64
                                          Fan oven 350x110
                                          5901121
                                          $540.07
                                            Fan
                                            6033175
                                            $330.79
                                              Transformer
                                              6041100
                                              $172.15
                                                3 way solenoid valve
                                                6042080
                                                $249.78
                                                  Detergent pump
                                                  6042124
                                                  $249.78
                                                    Usb
                                                    6060045
                                                    $158.65
                                                      Gasket for shaft M. 9461 24x46x4
                                                      7070151
                                                      $202.53

                                                      Consumables

                                                        Humidity probe
                                                        6000111
                                                        $222.78
