Product Brand

Giorik

PRODUCT MODEL No

SNHE061WT

Product Serial Number

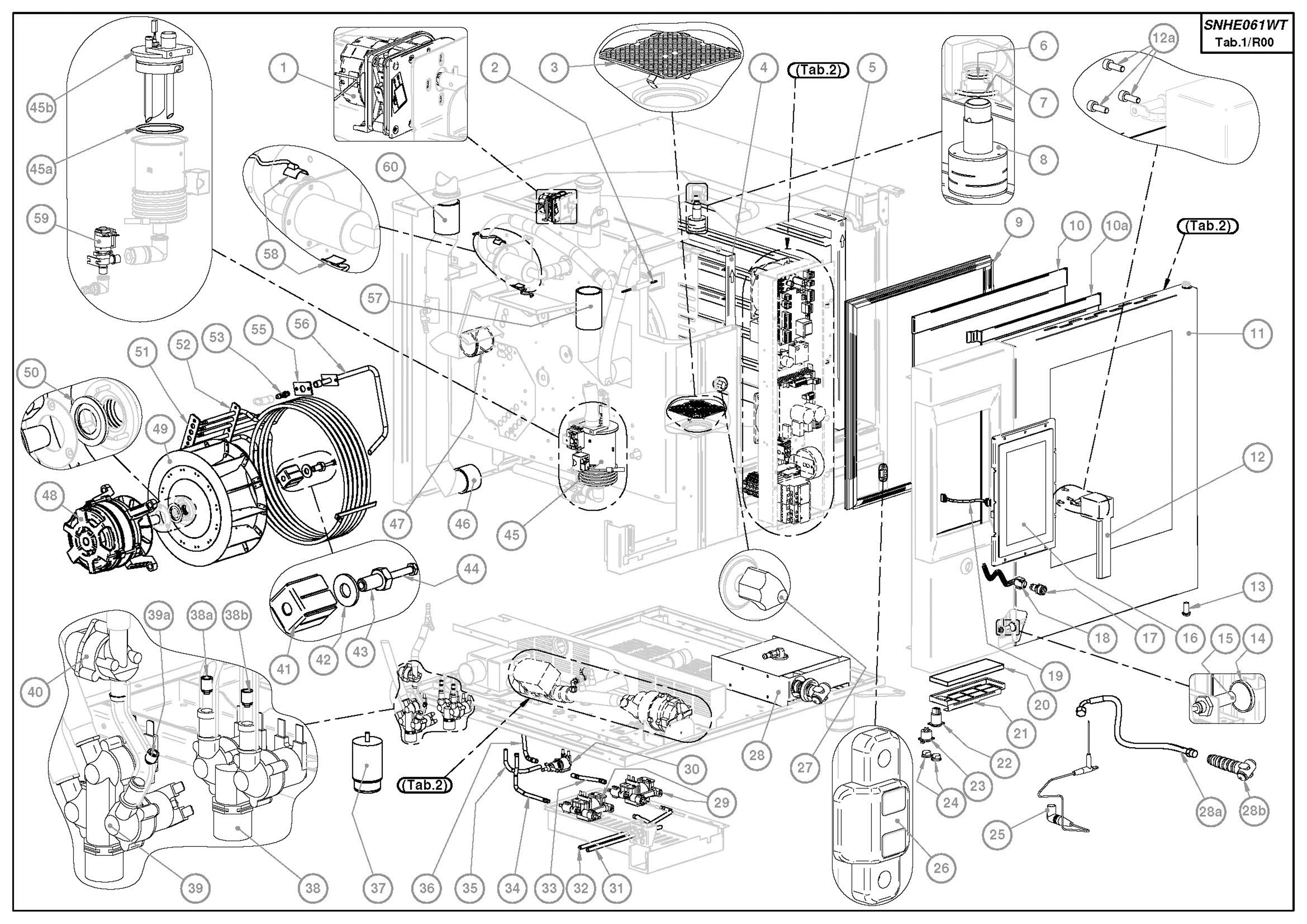

Spare Parts Drawing
spgi.snhe061wt_a1_spare_parts_drawing1 spgi.snhe061wt_a1_spare_parts_drawing2 spgi.snhe061wt_a1_spare_parts_drawing3 spgi.snhe061wt_a1_spare_parts_drawing4
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Caps for basin
    2012707
    $25.32
      Door light connector
      2025007
      $114.77
        Gasket element
        2027323
        $165.40
          Cavity probe
          6000093
          $165.40
            Locking dog
            5900124
            $77.64
              Oven Fan 270x113
              5901015
              $661.58
                Thermostat 3ph safety 350deg
                6010008
                $367.92
                  Light transformer
                  6041099
                  $162.02
                    Motorized valve
                    6042073
                    $718.96
                      Boiler drain solenoid valve
                      6042077
                      $148.52
                        Boiler expansion board
                        6010153
                        $718.96
                          Nozzle washing system blue
                          6042087
                          $7.09
                            Main board oven
                            6010195
                            $894.48
                              Nozzle humidifier brown
                              6042091
                              $8.78
                                Nozzle boiler red
                                6042095
                                $8.78
                                  Magnetic sensor
                                  6042110
                                  $74.26
                                    Pump washing
                                    6042120
                                    $864.10
                                      Flow meter
                                      6042122
                                      $249.78
                                        Power relay
                                        6041008
                                        $249.78
                                          Oven seal 6 x 1/1
                                          7070223
                                          $259.91
                                            Shower minireel
                                            7080051
                                            $985.53
                                              Door light connector
                                              2025251
                                              $128.27
                                                Buzzer
                                                6010103
                                                $77.64
                                                  Three phase motor am100l/a4 0.55kw
                                                  6033151
                                                  $1,690.17
                                                    Transformer
                                                    6041100
                                                    $172.15
                                                      3 way solenoid valve
                                                      6042080
                                                      $249.78
                                                        Detergent pump
                                                        6042124
                                                        $249.78
                                                          Usb
                                                          6060045
                                                          $158.65
                                                            Gasket for boiler
                                                            6090166
                                                            $77.64
                                                              Gasket for shaft M. 9461 24x46x4
                                                              7070151
                                                              $202.53

                                                              Consumables

                                                                Humidity probe
                                                                6000111
                                                                $222.78
