Product Brand

Giorik

PRODUCT MODEL No

SERE061WT.L.SF

Product Serial Number

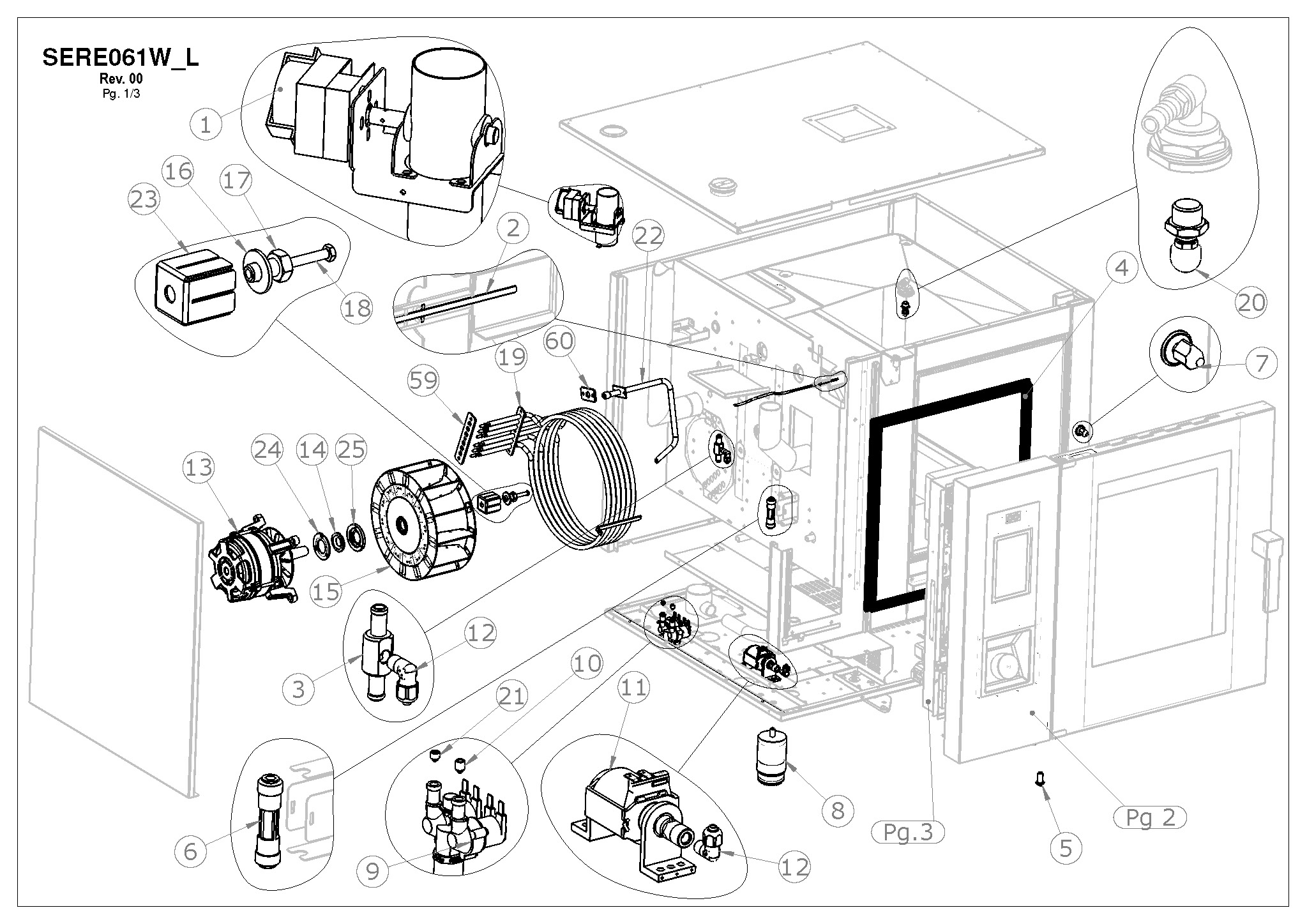

Spare Parts Drawing
spgi.sere061wt.l_a1_drawing1_spareparts spgi.sere061wt.l_a1_drawing2_spareparts spgi.sere061wt.l_a1_drawing3_spareparts spgi.sere061wt.l_a1_list_spareparts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Caps for basin
    2012707
    $25.32
      Black knob for SE oven encoder
      2024892
      $18.57
        Door light connector
        2025007
        $114.77
          Gasket element
          2027323
          $165.40
            Cavity probe
            6000093
            $165.40
              Locking dog
              5900124
              $77.64
                Oven Fan 270x113
                5901015
                $661.58
                  Light transformer
                  6041099
                  $162.02
                    Keyboard On/Off
                    6010136
                    $141.77
                      Main board oven
                      6010195
                      $894.48
                        Nozzle boiler red
                        6042095
                        $8.78
                          Inverter motor
                          6010202
                          $1,154.39
                            Magnetic sensor
                            6042110
                            $74.26
                              Check valve
                              6042115
                              $40.51
                                Motor for butterfly valve 20"
                                6031013
                                $162.02
                                  Pump detergent rinse
                                  6042140
                                  $195.78
                                    Power relay
                                    6041008
                                    $249.78
                                      Oven seal 6 x 1/1
                                      7070223
                                      $259.91
                                        Buzzer
                                        6010103
                                        $77.64
                                          Encoder
                                          6010133
                                          $202.53
                                            Core probe socket
                                            6000122
                                            $226.16
                                              Transformer
                                              6041100
                                              $172.15
                                                Gasket for shaft M. 9461 24x46x4
                                                7070151
                                                $202.53

                                                Consumables
