Product Brand

Synergy

PRODUCT MODEL No

ST0905E

Product Serial Number

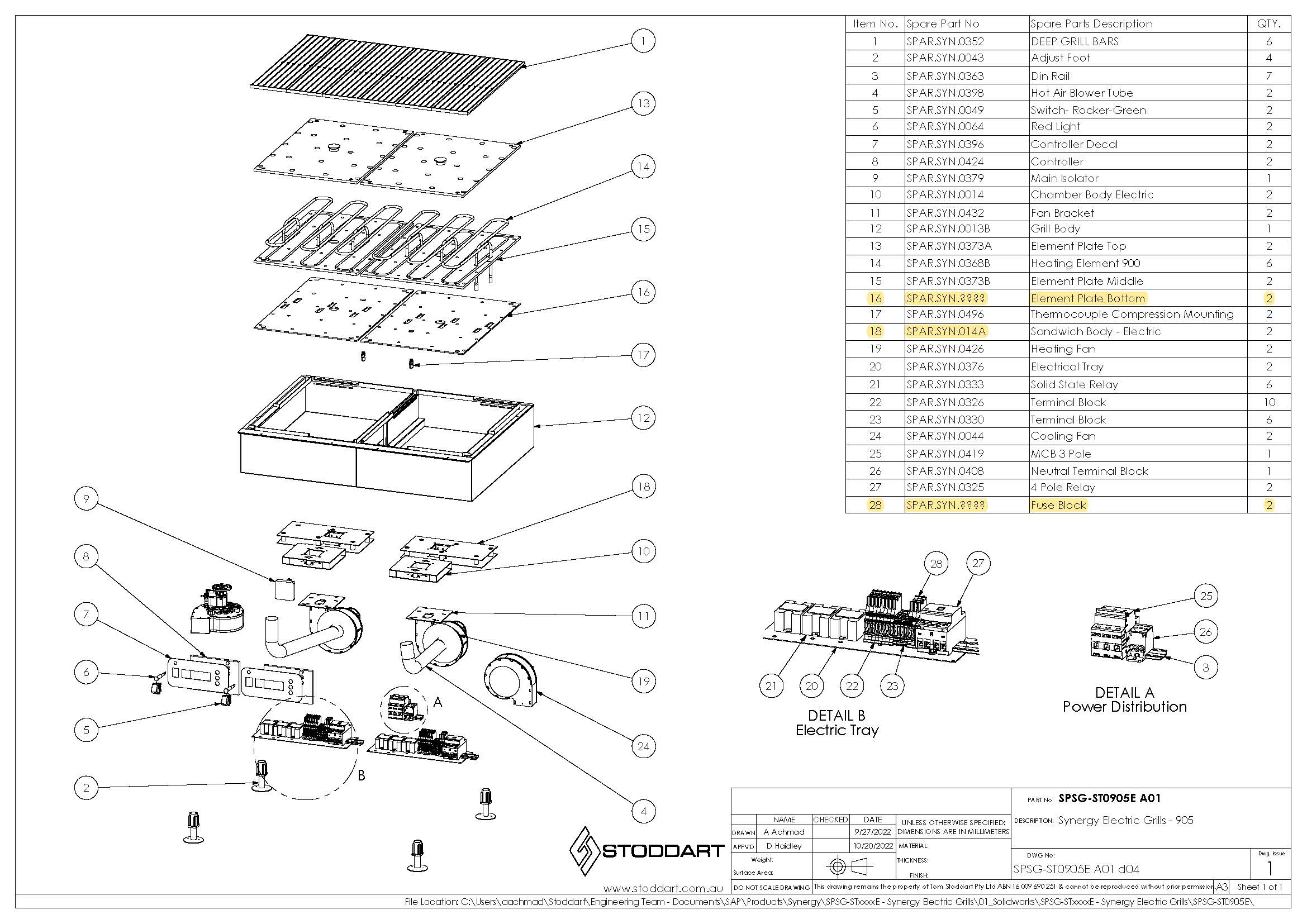

Spare Parts Drawing
spsg.st0905E_a1_Spare_Parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Grill Bar
    SPAR.SYN.GRILLBAR
    $115
      Switch Rocker green
      SPAR.SYN.0049
      $28.65
        Vortex fan cooling
        SPAR.SYN.0044
        $997.89
          Solid state relay 40A
          SPAR.SYN.0333
          $191.79
            MCB 3 pole type C 3 phase
            SPAR.SYN.0419
            $183.24
              Heating element 900
              SPAR.SYN.0368B
              $570.33
                Contactor 4 pole pin stellar
                SPAR.SYN.0325
                $370.68
                  Adjust Foot
                  SPAR.SYN.0043
                  $86.33
                    Hot Air Blower Tube
                    SPAR.SYN.0398
                    $86.33
                      Thermocouple Compression Mounting
                      SPAR.SYN.0496
                      $86.33
                        Sandwich Body Electric
                        SPAR.SYN.0014A
                        $86.33
                          Electrical Tray
                          SPAR.SYN.0376
                          $86.33
                            Grill Body
                            SPAR.SYN.0013B
                            $86.33
                              Element Plate Top
                              SPAR.SYN.0373A
                              $86.33
                                Din Rail
                                SPAR.SYN.0363
                                $86.33
                                  Element Plate Middle
                                  SPAR.SYN.0373B
                                  $86.33
                                    Red Light
                                    SPAR.SYN.0064
                                    $86.33
                                      Terminal Block
                                      SPAR.SYN.0326
                                      $86.33
                                        Neutral Terminal Block
                                        SPAR.SYN.0408
                                        $86.33
                                          Controller Decal
                                          SPAR.SYN.0396
                                          $86.33
                                            Main Isolator
                                            SPAR.SYN.0379
                                            $86.33
                                              Chamber Body Electric
                                              SPAR.SYN.0014
                                              $86.33
                                                Fan Bracket
                                                SPAR.SYN.0432
                                                $86.33
