Product Brand

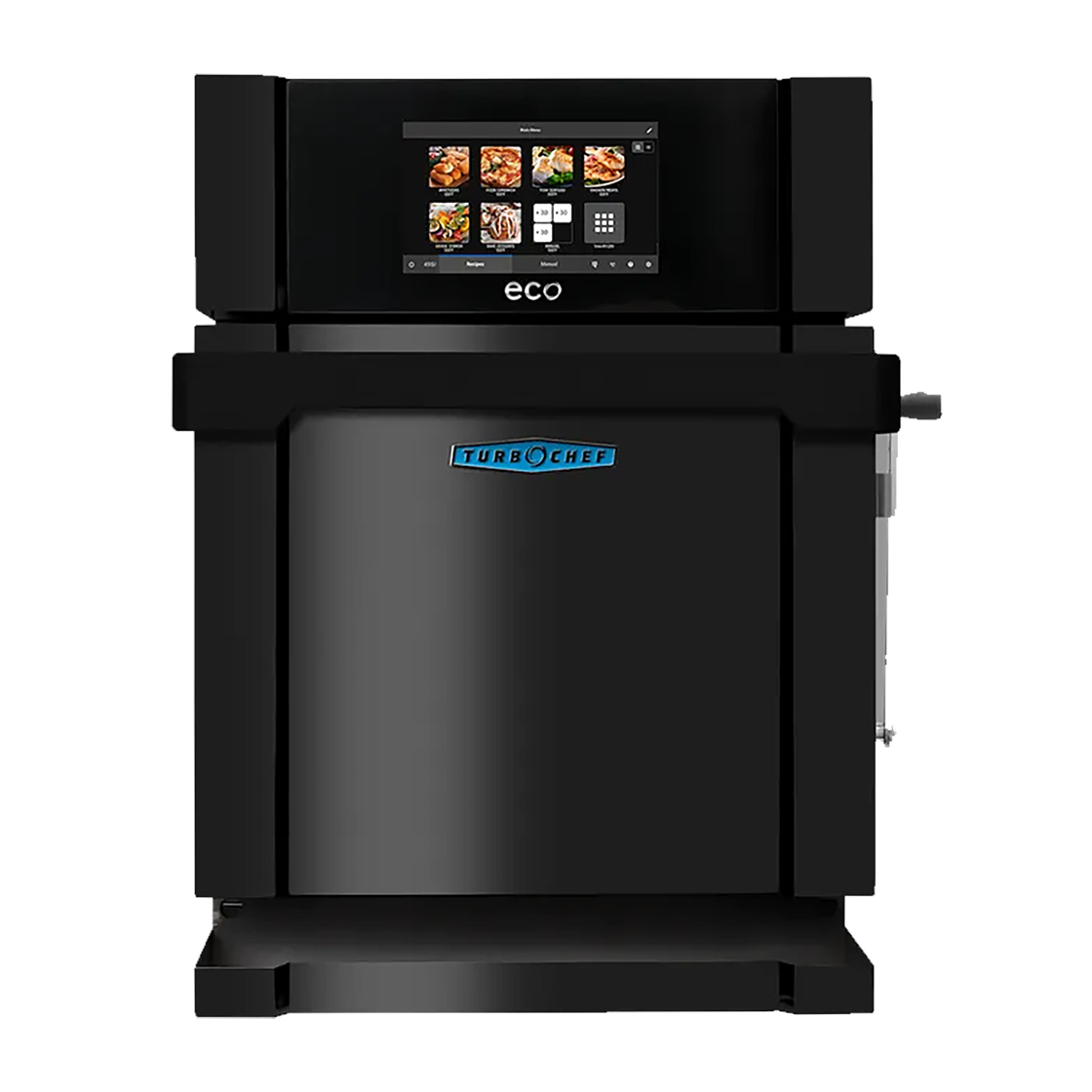

Turbochef

PRODUCT MODEL No

ECO.BANDIDO.BL

Product Serial Number

Spare Parts Drawing
sptc.eco.xxx_a3_drawing1_spare_parts sptc.eco.xxx_a3_drawing2_spare_parts sptc.eco.xxx_a3_drawing3_spare_parts sptc.eco.xxx_a3_drawing4_spare_parts sptc.eco.xxx_a3_drawing5_spare_parts sptc.eco.xxx_a3_drawing6_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Plug Lead Black Rubber 15A 1.8M
    CMEL.1402
    $17.25
      High Voltage Diode
      SPAR.TCO.100481
      $85.45
        Fuse, Amp 12, ATMR - individual fuse
        SPAR.TCO.100592
        $101.36
          20A Relay 24VDC SP
          SPAR.TCO.101274
          $65.22
            15A Fuse
            SPAR.TCO.100601
            $99.01
              2 Pole Relay
              SPAR.TCO.101273
              $171.81
                30A 3 Pole Fuse Block
                SPAR.TCO.103566
                $249.10
                  XFR Thermostat 280F- Open on rise
                  SPAR.TCO.104167
                  $44.07
                    Magnetron Thermostat 270F
                    SPAR.TCO.104228
                    $52.98
                      Service Kit - I.O SAGE Board
                      SPAR.TCO.CON-3019
                      $2,253.50
                        Stirrer Motor Gear -15 RPM 230V
                        SPAR.TCO.105108
                        $1,137.76
                          Blower 24VDC XFR and MAG cooling fan
                          SPAR.TCO.105259
                          $498.95
                            Service Kit - BMSC Single Axis
                            SPAR.TCO.CON-7013
                            $3,320.25
                              Assembly, Relays with Low Voltage Harness
                              SPAR.TCO.ECO-9025
                              $1,920.80
                                Harness for Cooling Fans
                                SPAR.TCO.ECO-9702
                                $81.02
                                  Filter Box Ral 9005 Fine Texture T041-BK179
                                  SPAR.TCO.ECO-9048-T004
                                  $142.97
                                    ECO Stainless Steel Door Assembly
                                    SPAR.TCO.ECO-3201
                                    $2,936.49
                                      Catalytic Converter to suit ECO
                                      SPAR.TCO.ECO-9066
                                      $1,036.05
                                        Insulated Waveguide
                                        SPAR.TCO.ECO-3202
                                        $886.25
                                          High Voltage Wire Magnetron to suit ECO
                                          SPAR.TCO.ECO-9237-1
                                          $24.31
                                            High Voltage Wire Capacitor to suit ECO
                                            SPAR.TCO.ECO-9237-2
                                            $16.84
                                              Stainles steel Back Panel to suit ECO
                                              SPAR.TCO.ECO-9378
                                              $784.83
                                                High Voltage Wire Transformer to suit ECO
                                                SPAR.TCO.ECO-9237-3
                                                $23.79
                                                  Base Gasket to suit ECO
                                                  SPAR.TCO.ECO-9334
                                                  $283.75
                                                    Stainless steel Top Cover
                                                    SPAR.TCO.ECO-9530
                                                    $726.10
                                                      Stainless steel Drip Tray to suit ECO
                                                      SPAR.TCO.ECO-9573
                                                      $456.08
                                                        Harness, Heater & EMI Filter
                                                        SPAR.TCO.ECO-9701
                                                        $100.90
                                                          Stainless steel Right Side Cover
                                                          SPAR.TCO.ECO-9531
                                                          $322.77
                                                            Stainless steel Left Side Cover
                                                            SPAR.TCO.ECO-9532
                                                            $322.77
                                                              Switch Interlock
                                                              SPAR.TCO.102012
                                                              $25.51
                                                                EGO High Limit Thermostat 300C
                                                                SPAR.TCO.102075
                                                                $523.89
                                                                  Snap Disk Thermostat N/O Close on Rise 120F
                                                                  SPAR.TCO.102086
                                                                  $33.90
                                                                    Service Kit - Cooling Fan with Self Tap Screws
                                                                    SPAR.TCO.HHB-3234
                                                                    $284.73
                                                                      Stirrer Shaft Assembly Service Kit
                                                                      SPAR.TCO.I1-3214
                                                                      $846.43
                                                                        Wide Door Switch Service Kit
                                                                        SPAR.TCO.I1-3207
                                                                        $34.25
                                                                          Upper Jetplate, Neoceram Service Kitto suit i1
                                                                          SPAR.TCO.I1-3219
                                                                          $1,921.32
                                                                            Stainless Steel Waveguide Gasket
                                                                            SPAR.TCO.I1-9331
                                                                            $163.94
                                                                              Waveguide Seal
                                                                              SPAR.TCO.I1-9486.B
                                                                              $35.80
                                                                                Top Blower Motor Service Kit to suit i3
                                                                                SPAR.TCO.I3-3209-3
                                                                                $2,851.63
                                                                                  Black Door Spring for Bullet
                                                                                  SPAR.TCO.ENC-1691
                                                                                  $17.12
                                                                                    Door Switch Assembly Service Kit
                                                                                    SPAR.TCO.ENC-3050
                                                                                    $668.87
                                                                                      Door Actuator
                                                                                      SPAR.TCO.NGC-1076-2
                                                                                      $267.89
                                                                                        Magneton Service Kit
                                                                                        SPAR.TCO.NGC-3015
                                                                                        $479.81
                                                                                          24 VDC Power Supply and Bracket Service Kit
                                                                                          SPAR.TCO.NGC-3069
                                                                                          $619.68
                                                                                            Comm cable from SAGE to Touch Screen
                                                                                            SPAR.TCO.CON-7076
                                                                                            $36.66
                                                                                              30A Low Leakage EMI Filter 1ph - Domestic
                                                                                              SPAR.TCO.105406
                                                                                              $224.51
                                                                                                HV & Filament Transformer Kit with packaging
                                                                                                SPAR.TCO.ECO-3204-3
                                                                                                $1,169.77
                                                                                                  Dual Capacitor 1.0 + 0.15 uF and Clamp
                                                                                                  SPAR.TCO.TC3-3220
                                                                                                  $359.89
                                                                                                    Microwave Stirrer Blade Service Kit
                                                                                                    SPAR.TCO.I1-3212
                                                                                                    $319.44
                                                                                                      30A Solid-State Relay With Heat Sink
                                                                                                      SPAR.TCO.ENC-1788
                                                                                                      $459.36
                                                                                                        Service Kit, Eco and Bullet, Hinge, LHS
                                                                                                        SPAR.TCO.ENC-3037-1
                                                                                                        $505.85
                                                                                                          Service Kit, Eco and Bullet, Hinge, RHS
                                                                                                          SPAR.TCO.ENC-3037-2
                                                                                                          $547.56
                                                                                                            Bottom Jetplate
                                                                                                            SPAR.TCO.ECO-9159
                                                                                                            $264.79
                                                                                                              TurboChef Logo
                                                                                                              SPAR.TCO.NGC-1155
                                                                                                              $43.21
                                                                                                                1400W Helical Heater
                                                                                                                SPAR.TCO.I1-9655
                                                                                                                $294.50
                                                                                                                  S/M Door Switch Plate
                                                                                                                  SPAR.TCO.NGC-1126
                                                                                                                  $24.94
                                                                                                                    Door Switch STOP Paddle Monitor
                                                                                                                    SPAR.TCO.NGC-1324
                                                                                                                    $7.41
                                                                                                                      Touch Display Gasket
                                                                                                                      SPAR.TCO.ECO-9585
                                                                                                                      $17.76
                                                                                                                        12" USB Cable & Port
                                                                                                                        SPAR.TCO.105517
                                                                                                                        $66.14
                                                                                                                          Display with Black Housing
                                                                                                                          SPAR.TCO.ECO-9584-T013
                                                                                                                          $1,263.26
                                                                                                                            12" Extension Cable - 30V 80C - USB 2.0
                                                                                                                            SPAR.TCO.103193
                                                                                                                            $64.13
                                                                                                                              Phoenix Touch Screen Service Kit Programmed
                                                                                                                              SPAR.TCO.ECO-3222-1
                                                                                                                              $3,917.68
