Product Brand

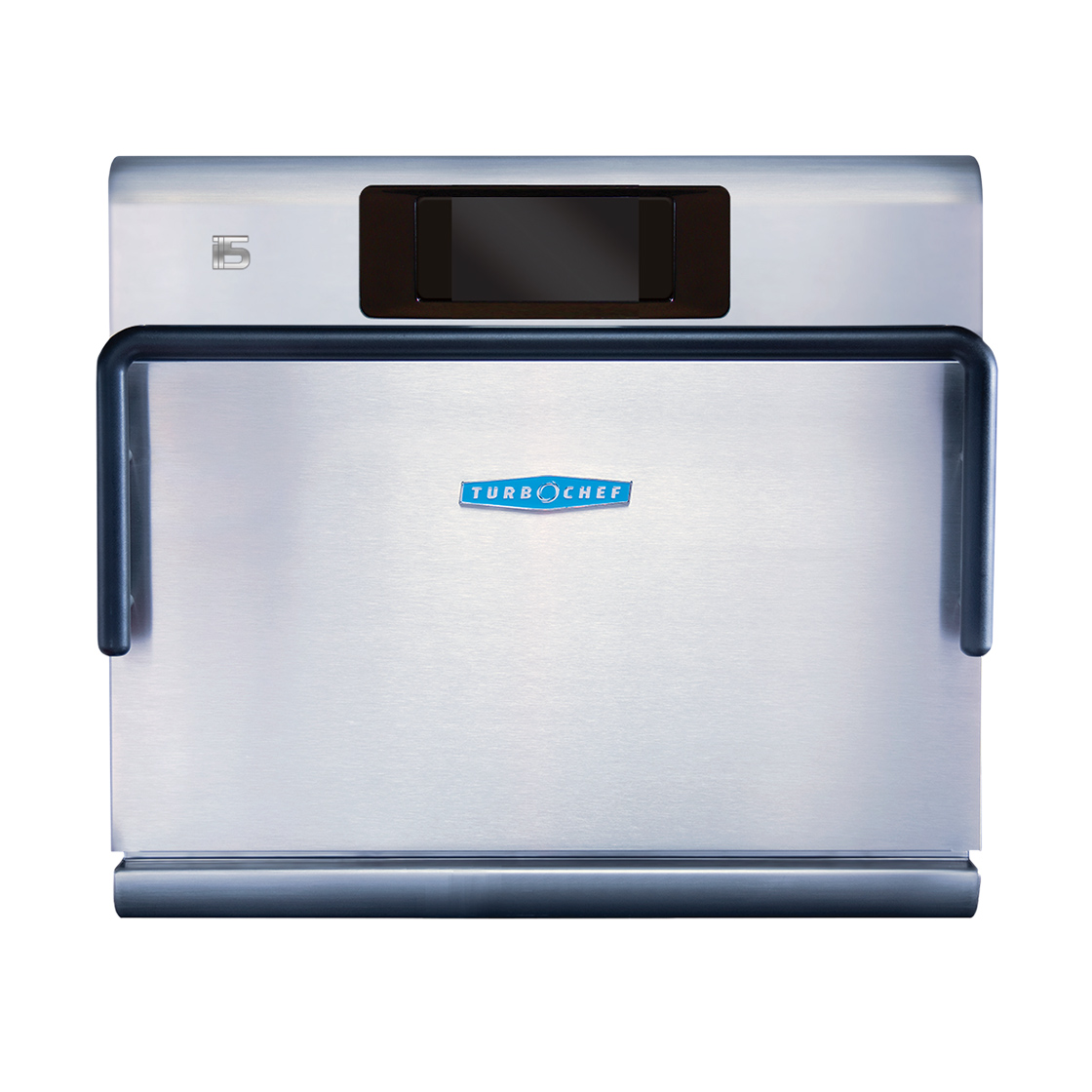

Turbochef

PRODUCT MODEL No

i5

Product Serial Number

Spare Parts Drawing
sptc.i5_a2_drawing1_spares_parts sptc.i5_a5_drawing2_spare_parts sptc.i5_a2_drawing3_spare_parts sptc.i5_a2_drawing4_spare_parts sptc.i5_a2_drawing5_spare_parts sptc.i5_a2_drawing6_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Finger Guard Fan
    SPAR.TCO.100086
    $32.81
      Bracket, Capacitor
      SPAR.TCO.100134
      $37.75
        High Voltage Diode
        SPAR.TCO.100481
        $85.45
          Dual Capacitor 0.91uF+0.19uF 2500VAC
          SPAR.TCO.100232
          $228.07
            Fuse, Amp 12, ATMR - individual fuse
            SPAR.TCO.100592
            $101.36
              Fuse, Amp 20, ATMR - individual fuse
              SPAR.TCO.100599
              $96.93
                3 Pole Double Throw Relay K6
                SPAR.TCO.101272
                $165.61
                  2 Pole Relay
                  SPAR.TCO.101273
                  $171.81
                    Stirrer Motor Gear -15 RPM 230V
                    SPAR.TCO.105108
                    $1,137.76
                      Aspen Dual Axis Controller Motor (BMSC)
                      SPAR.TCO.CON-7039
                      $4,257.35
                        Switch Interlock
                        SPAR.TCO.102012
                        $25.51
                          Klixon Magnetron Thermostat
                          SPAR.TCO.102070
                          $72.52
                            EGO High Limit Thermostat 300C
                            SPAR.TCO.102075
                            $523.89
                              Snap Disk Thermostat N/O Close on Rise 120F
                              SPAR.TCO.102086
                              $33.90
                                Standard Top Jetplate
                                SPAR.TCO.I5-3204
                                $2,548.91
                                  Display (TFT) Service Kit to suit i5
                                  SPAR.TCO.I5-3207
                                  $2,435.56
                                    Waveguide Service Kit to suit i3 and i5
                                    SPAR.TCO.I5-3210
                                    $1,705.01
                                      Stirrer Shaft Assembly Service Kit
                                      SPAR.TCO.I5-3217
                                      $694.21
                                        Top Blower Motor Service Kit to suit i5
                                        SPAR.TCO.I5-3218-3
                                        $3,359.78
                                          Bottom Blower Motor Service Kit to suit i5
                                          SPAR.TCO.I5-3218-4
                                          $3,359.78
                                            Stirrer Blade Assembly
                                            SPAR.TCO.I5-9154
                                            $805.97
                                              Hand hold Plug
                                              SPAR.TCO.I5-9256
                                              $36.49
                                                Waveguide Gasket
                                                SPAR.TCO.I5-9331
                                                $359.43
                                                  Magneton Service Kit
                                                  SPAR.TCO.NGC-3015
                                                  $479.81
                                                    50Hz Filament Transformer with packaging Kit
                                                    SPAR.TCO.NGC-3061-2
                                                    $629.33
                                                      50Hz HV Transformer with packaging Kit
                                                      SPAR.TCO.NGC-3062-2
                                                      $1,296.94
                                                        24 VDC Power Supply and Bracket Service Kit
                                                        SPAR.TCO.NGC-3069
                                                        $619.68
                                                          Foil Pack
                                                          SPAR.TCO.RWD-9191
                                                          $564.97
                                                            Cooling Fan with Connector 230v
                                                            SPAR.TCO.TC3-0433
                                                            $711.85
                                                              Aluminium Bottom Guide Block
                                                              SPAR.TCO.I5-9393
                                                              $95.56
                                                                Counterbalance Bracket Weldment
                                                                SPAR.TCO.I5-9326
                                                                $359.31
                                                                  30A Solid-State Relay With Heat Sink
                                                                  SPAR.TCO.ENC-1788
                                                                  $459.36
                                                                    Left Hand Side Hinge Cam Weldment
                                                                    SPAR.TCO.I5-9313
                                                                    $1,544.49
                                                                      Right Hand Side Hinge Cam Weldment
                                                                      SPAR.TCO.I5-9314
                                                                      $1,411.17
                                                                        Left Hand Gusset Hing to suit i5
                                                                        SPAR.TCO.I5-9178
                                                                        $211.41
                                                                          Right Hand Gusset Hing to suit i5
                                                                          SPAR.TCO.I5-9179
                                                                          $211

                                                                          Consumables
