Product Brand

Turbochef

PRODUCT MODEL No

SOTA

Product Serial Number

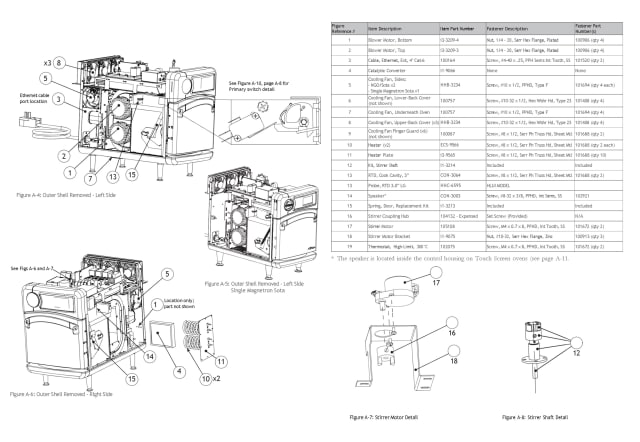

Spare Parts Drawing

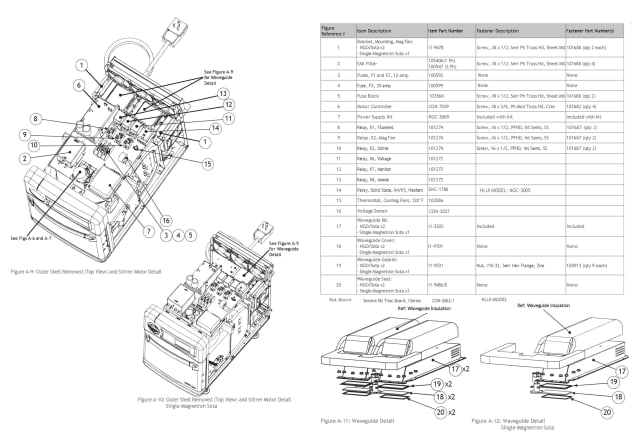

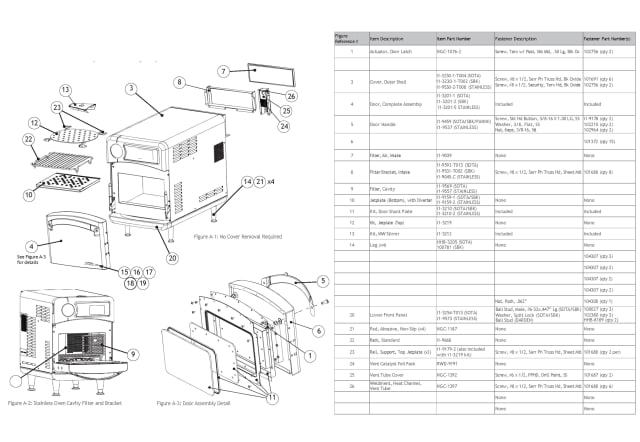

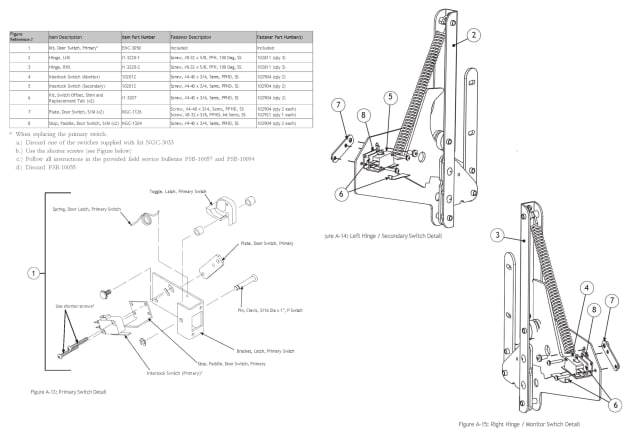

sptc.sota_i1_a2_drawing1_spares_parts copy sptc.sota_i1_a2_drawing2_spare_parts sptc.sota_i1_a2_drawing3_spare_parts sptc.sota_i1_a2_drawing4_spare_parts sptc.sota_i1_a2_drawing5_spare_parts sptc.sota_i1_a2_drawing6_spare_parts sptc.sota_i1_a2_drawing7_spare_parts sptc.sota_i1_a2_drawing8_spare_parts
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    Finger Guard Fan
    SPAR.TCO.100087
    $18.27
      Bracket, Capacitor
      SPAR.TCO.100134
      $37.75
        High Voltage Diode
        SPAR.TCO.100481
        $85.45
          20A EMI Filter 3 PH 440v
          SPAR.TCO.100547
          $1,272.86
            Fuse, Amp 12, ATMR - individual fuse
            SPAR.TCO.100592
            $101.36
              Fuse, Amp 20, ATMR - individual fuse
              SPAR.TCO.100599
              $96.93
                20A Relay 24VDC SP
                SPAR.TCO.101274
                $65.22
                  4" Leg (polished mnetal)
                  SPAR.TCO.100781
                  $79.87
                    3 Pole Double Throw Relay K6
                    SPAR.TCO.101272
                    $165.61
                      2 Pole Relay
                      SPAR.TCO.101273
                      $171.81
                        30A 3 Pole Fuse Block
                        SPAR.TCO.103566
                        $249.10
                          Magnetron Thermostat 270F
                          SPAR.TCO.104228
                          $52.98
                            Service Kit - I.O SAGE Board
                            SPAR.TCO.CON-3019
                            $2,253.50
                              Stirrer Motor Gear -15 RPM 230V
                              SPAR.TCO.105108
                              $1,137.76
                                8ohm Speaker
                                SPAR.TCO.CON-3003
                                $186.18
                                  Aspen Dual Axis Controller Motor (BMSC)
                                  SPAR.TCO.CON-7039
                                  $4,257.35
                                    Switch Interlock
                                    SPAR.TCO.102012
                                    $25.51
                                      EGO High Limit Thermostat 300C
                                      SPAR.TCO.102075
                                      $523.89
                                        Snap Disk Thermostat N/O Close on Rise 120F
                                        SPAR.TCO.102086
                                        $33.90
                                          Service Kit - Cooling Fan with Self Tap Screws
                                          SPAR.TCO.HHB-3234
                                          $284.73
                                            Stirrer Shaft Assembly Service Kit
                                            SPAR.TCO.I1-3214
                                            $846.43
                                              Oven Door and Packaging Service Kit
                                              SPAR.TCO.I1-3201-1
                                              $1,971.89
                                                Wide Door Switch Service Kit
                                                SPAR.TCO.I1-3207
                                                $34.25
                                                  Door Shunt Plate Service Kit to suit SOTA
                                                  SPAR.TCO.I1-3210
                                                  $1,180.11
                                                    Upper Jetplate, Neoceram Service Kitto suit i1
                                                    SPAR.TCO.I1-3219
                                                    $1,921.32
                                                      Left Hinge Assembly with Spring Service Kit
                                                      SPAR.TCO.I1-3220-1
                                                      $835.57
                                                        Right Hinge Assembly with Spring Service Kit
                                                        SPAR.TCO.I1-3220-2
                                                        $836.26
                                                          3 Piece Gen Mkt Black Top cover to suit i1 unit
                                                          SPAR.TCO.I1-3230-1-T004
                                                          $667.32
                                                            Stainless Steel Waveguide Gasket
                                                            SPAR.TCO.I1-9331
                                                            $163.94
                                                              Waveguide Seal
                                                              SPAR.TCO.I1-9486.B
                                                              $35.80
                                                                Top Blower Motor Service Kit to suit i3
                                                                SPAR.TCO.I3-3209-3
                                                                $2,851.63
                                                                  Service Kit, Display, TFT 4.3"
                                                                  SPAR.TCO.ENC-3011
                                                                  $1,998.64
                                                                    Door Switch Assembly Service Kit
                                                                    SPAR.TCO.ENC-3050
                                                                    $668.87
                                                                      Door Actuator
                                                                      SPAR.TCO.NGC-1076-2
                                                                      $267.89
                                                                        Magneton Service Kit
                                                                        SPAR.TCO.NGC-3015
                                                                        $479.81
                                                                          50Hz Filament Transformer with packaging Kit
                                                                          SPAR.TCO.NGC-3061-2
                                                                          $629.33
                                                                            50Hz HV Transformer with packaging Kit
                                                                            SPAR.TCO.NGC-3062-2
                                                                            $1,296.94
                                                                              24 VDC Power Supply and Bracket Service Kit
                                                                              SPAR.TCO.NGC-3069
                                                                              $619.68
                                                                                Foil Pack
                                                                                SPAR.TCO.RWD-9191
                                                                                $564.97
                                                                                  Comm cable from SAGE to Touch Screen
                                                                                  SPAR.TCO.CON-7076
                                                                                  $36.66
                                                                                    30A Low Leakage EMI Filter 1ph - Domestic
                                                                                    SPAR.TCO.105406
                                                                                    $224.51
                                                                                      Black Plastic Leg
                                                                                      SPAR.TCO.HHB-3205
                                                                                      $76.43
                                                                                        Oven Door and Packaging Service Kit
                                                                                        SPAR.TCO.I1-3201-2
                                                                                        $2,136.77
                                                                                          3 Piece Top cover to suit Starbucks Unit
                                                                                          SPAR.TCO.I1-3230-1-T002
                                                                                          $800.97
                                                                                            Microwave Stirrer Blade Service Kit
                                                                                            SPAR.TCO.I1-3212
                                                                                            $319.44
                                                                                              30A Solid-State Relay With Heat Sink
                                                                                              SPAR.TCO.ENC-1788
                                                                                              $459.36
                                                                                                Bottom Jetplate Assembly - i1 - 20
                                                                                                SPAR.TCO.I1-9159-1
                                                                                                $172.96
                                                                                                  S/M Door Switch Plate
                                                                                                  SPAR.TCO.NGC-1126
                                                                                                  $24.94
                                                                                                    Door Switch STOP Paddle Monitor
                                                                                                    SPAR.TCO.NGC-1324
                                                                                                    $7.41
                                                                                                      12" Extension Cable - 30V 80C - USB 2.0
                                                                                                      SPAR.TCO.103193
                                                                                                      $64.13
