Product Brand

Woodson

PRODUCT MODEL No

W.CVS.M.25

Product Serial Number

missing_image

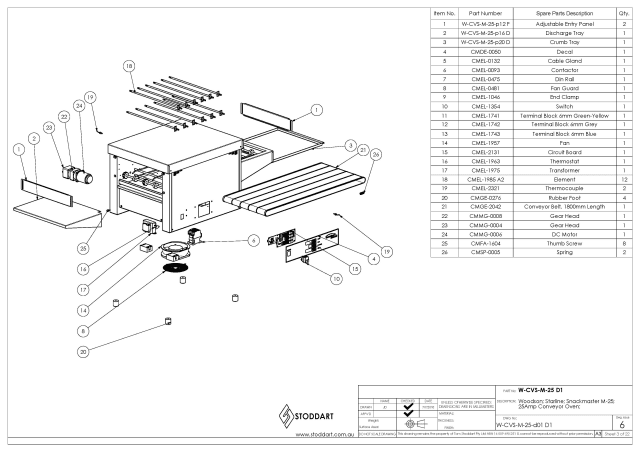

w.cvs.m.25_d1_spare_parts_drawing
If the part you are looking for does not appear on the list below, it is not currently available in stock to purchase. Please contact the Stoddart Service & Spares Team to enquire about availability and lead times here.

Spare Parts

    5.5kw Contactor
    CMEL.0093
    $59.08
      Cable 3 Core Rubber Flex 2.5mm
      CMEL.1695
      $10.22
        Transformer 230V 12V 50VA
        CMEL.1975
        $170.83
          Rotary encoder 5 24VDC
          CMEL.2159
          $440.36
            Solid State Relay 40Amp 5 24VDC
            CMEL.2161
            $224.76
              Wiring Harness
              CMEL.2204
              $98.35
                Sprocket 16 Teeth 3/8" Pitch 8mm Bore
                CMGE.2040
                $22.54
                  Chain Drive
                  CMGE.2047
                  $12.26
                    Links for chain
                    CMGE.2048
                    $4
                      Tefon Block 3/8" Hole
                      CMGE.2050
                      $54.80
                        Chamfered Tefon Block 3/8" Hole
                        CMGE.2055
                        $57.62
                          Gear head gear ratio 60
                          CMMG.0004
                          $262.36
                            Motor dc 15w 12v 3200rpm s6d15-12a
                            CMMG.0006
                            $272.16
                              Locating Pin 12 7mm x 15mm 304S S
                              SVMA.0278
                              $8.26
                                Gear head inter decimal 6mm shaft 10b
                                CMMG.0008
                                $272.16
                                  Heat Sink KHS 120 Series
                                  CMEL.2160
                                  $33.94
